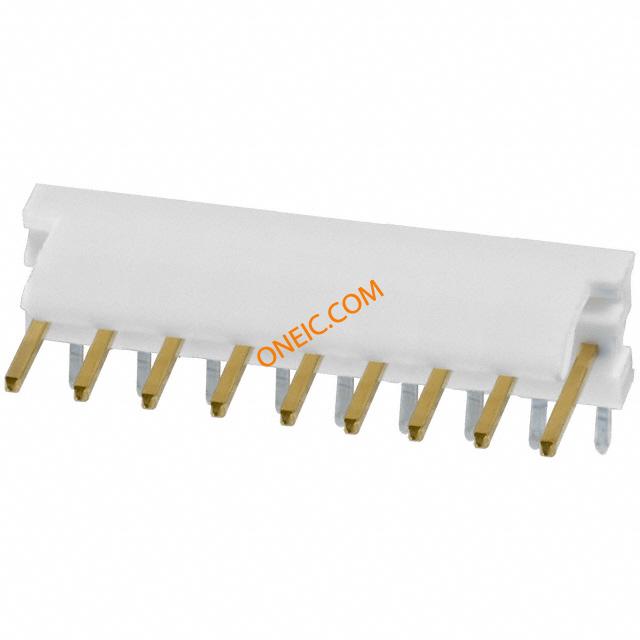

641216-9

点击放大查看

641216-9

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 9 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 9POS 30AU Conn Wire to Board HDR 9 POS 2.54mm Solder RA Thru-Hole Product Highlights:9 PositionsPreloadedHousing Gender = Header - PinContact Gender = PinMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA100 HDR ASSY FL/RA 30AU
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

其他名称A24949标准包装数量Bulk

合规参数

RoHSContains lead / RoHS non-compliantUL等级获得认可
无铅定义Not suitable for lead free processingUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态Not ELV/RoHS compliant
材料阻燃等级UL 94V-0

电气参数

供电电压250额定交流电压250
连接器阻抗焊接最大额定电流5

机械参数

颜色Natural间距2.54 mm
高度7.87 mm [ .31 in ]长度22.86 mm [ .9 in ]
包装方式Bulk遮蔽类型No
壳体颜色自然端接方式Solder
触头类型Male Pin第二连接器With
触点形状Square外壳颜色White
安装类型Right Angle连接器类型Header, Unshrouded
接触镀层Gold Over Nickel触点时序Without
紧固类型Friction Lock安装样式不带
排数1壳体镀层Tin
外壳材料（壳体）摩擦锁连接器用途Header
插入件材料铜合金锁定特性Friction Lock
触头材料Copper Alloy壳体材料Polyester
安装特性Without包装数量1
面板安装类型Without尺寸/外形0.64 [.025]
端接样式插针配接方向Without
触点数9端接表面处理不带
位数9后壳中断功能Without
兼容外壳尺寸（如TM-700等）MTA .100 连接器组件触头长度-柱3.56 mm [ .14 in ]
安装孔直径不带接触件表面处理 - 配合锡
典型触点布局同轴接触长度 - 配合0.295" (7.49mm)
触点材料 - 柱Copper Alloy表面贴装焊盘尺寸Without
端子柱长度3.56 [0.140]接触镀层厚度30µin (0.76µm)
恢复后小径No静电放电屏蔽不带
直角致动器长度Front护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Wire to Board连接器性别HDR
可密封否制造商全称AMP
产品子类型MTA-100 Connectors连接类型Printed Circuit Board
加载位置数All跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]封装热阻1.6 mm [ .063 in ]
