640457-9

点击放大查看

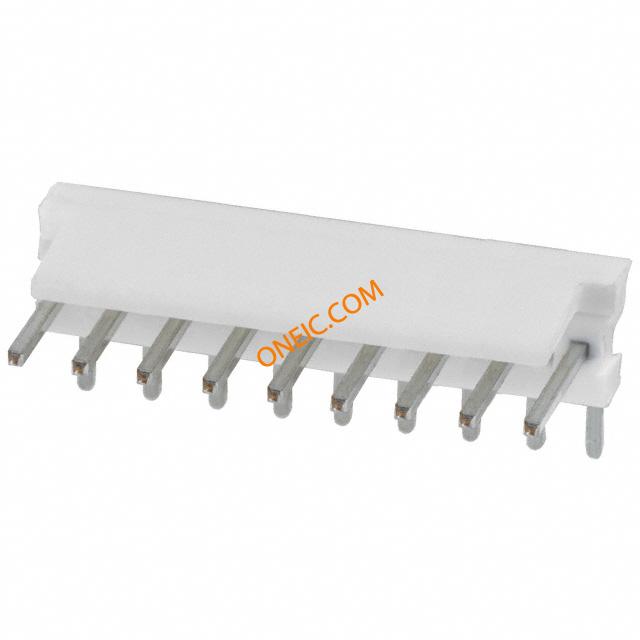

640457-9

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 9 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 9POS .100 TIN Header right angle 9 way Pin MTA-100 Headers & Wire Housings FRICTION LCK HDR 9P Right Angle Post tin Conn Wire to Board HDR 9 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 9Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP FrictionLockHeaderwithPolarizedNotches,Right-AnglePost,9pos. TE Connectivity MTA-100 系列 2.54mm节距 9路 (1排) 直角 PCB 针座, 焊接端接, 5A 09P MTA100 HDR ASSY SQ R/A F/L
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1000

合规参数

RoHSLead free / RoHS Compliant标准RoHSCompliant,ELVCompliant,UL94V-0
UL等级获得认可无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
UL档案号E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250 V ac开关功能Friction Lock
供电电压250额定交流电压250
连接器阻抗焊接最大额定电流5A

机械参数

颜色Natural间距2.54 mm
高度7.87 mm [ .31 in ]长度22.86 mm [ .9 in ]
包装方式Bulk端口尺寸0.025in.
遮蔽类型No壳体颜色自然
端接方式Solder触头类型Male Pin
引脚长度（针脚）0.14"第二连接器With
触点形状Square外壳颜色White
安装类型Right Angle行程角度Right
连接器类型Header, Unshrouded接触镀层Tin
触点时序Without紧固类型Friction Lock
安装样式PCMount排数1
壳体镀层Tin外壳材料（壳体）摩擦锁
连接器用途Header插入件材料铜合金
锁定特性Friction Lock触头材料Copper Alloy
壳体材料Polyester总长度0.9"
安装特性Without包装数量1
面板安装类型Without主要材料InterconnectSystem
尺寸/外形0.64 [.025]插针孔直径0.1"
端接样式Through Hole第一触头极性Pin (Male)
配接方向Without触点数9
端接表面处理不带接触件端接Tin
位数9后壳中断功能Without
兼容外壳尺寸（如TM-700等）MTA .100 连接器组件触头长度-柱3.56 mm [ .14 in ]
中心触点镀层工艺0.100in.柱体长度（配合）0.14in.
安装孔直径不带接触件表面处理 - 配合锡
典型触点布局同轴接触长度 - 配合0.295" (7.49mm)
触点材料 - 柱Copper Alloy表面贴装焊盘尺寸Without
端子柱长度3.56 [0.140]接触镀层厚度3.81 µm [ 150 µin ]
恢复后小径No静电放电屏蔽不带
直角致动器长度Front护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Wire to Board连接器性别HDR
系列MTA-100产品特性Pinstrip,SquarePost
可密封否CAD图纸3D CAD Model
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Printed Circuit Board应用细节Wire-to-Board
加载位置数All跳过的位置数None

环境参数

工作温度+105°C封装热阻1.6 mm [ .063 in ]

文档与媒体

在线文档
TE.Connect?C=1&PN=640457-9&M=BYPN&LG=1&I=13
在线文档
640457-9
