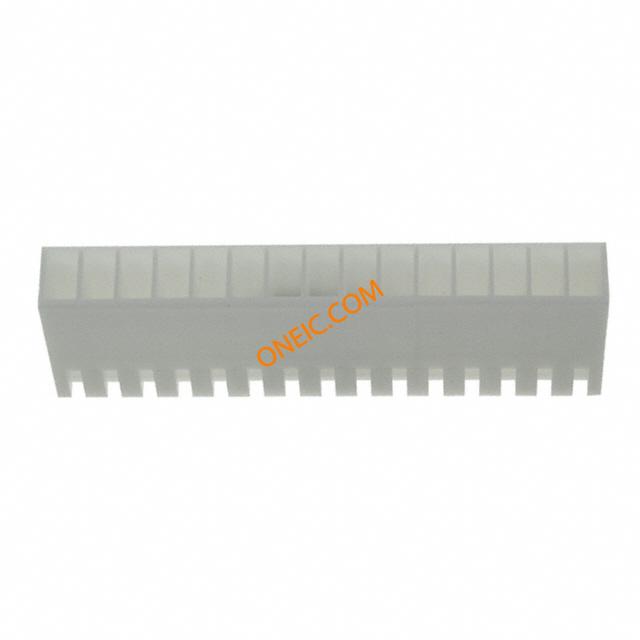

1-770602-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 15 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 15 POS CST-100 2.54mm housing rcpt.15w,crimp,white,180° Headers & Wire Housings 15P CST 100 CONN HSG 1-770602-5 Conn Housing RCP 15 POS 2.54mm Crimp ST Product Highlights:15 PositionsWithout ContactsHousing Gender = Connector - ReceptacleHousing Accepts Contact Type = ReceptacleCST-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 2.54mmhousingrcpt.15w,crimp,white,180° TE Connectivity CST-100 系列 2.54mm 节距 15 路 直 母 PCB 壳体 |
| 分类 |
商业参数
| 其他名称 | A23961 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Not applicable / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
机械参数
| 颜色 | Natural | 深度 | 12.95mm |
| 间距 | 2.54 mm | 宽度 | 6.6mm |
| 长度 | 38.61mm | 包装方式 | Bulk |
| 遮蔽类型 | No | 出线方向 | 180° |
| 方向 | 直 | 触头类型 | Female Socket |
| 第二连接器 | With | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Crimp |
| 接触镀层 | Pre-TinnedPhosphorBronzeorGoldoverNickel | 紧固类型 | Locking Ramp |
| 排数 | 1 | 连接器用途 | Receptacle |
| 壳体材料 | Nylon | 安装特性 | Without |
| 面板安装类型 | Without | 主要材料 | Connector |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 配接方向 | With | 触点数 | 15 |
| 接触件端接 | Crimp | 位数 | 15 |
| 典型触点布局 | 2.54 [0.100] | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | CST-100 |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 产品子类型 | CST-100 Housings | 应用细节 | Wire-to-Board |
