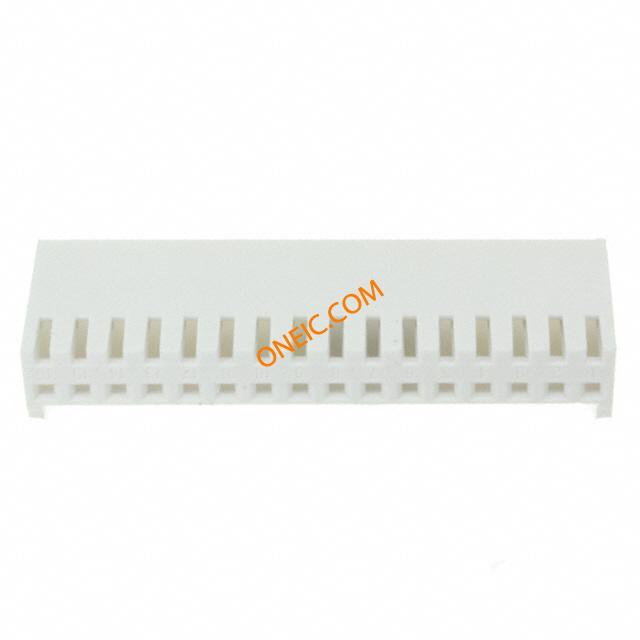

1-770602-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 16 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 16 POS CST-100 Headers & Wire Housings 16P CST 100 CONN HSG Conn Housing RCP 16 POS 2.54mm Crimp ST Product Highlights:CST-100 HousingsNumber of Positions = 16Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 最大额定电流 | 5/Contact A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Natural | 深度 | 12.95 mm |
| 间距 | 2.54 mm | 高度 | 6.6 mm |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 出线方向 | 180° | 触头类型 | Female Socket |
| 第二连接器 | With | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Crimp |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 连接器用途 | Receptacle | 壳体材料 | Nylon |
| 总长度 | 41.15 mm | 安装特性 | Without |
| 面板安装类型 | Without | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 16 | 接触件端接 | Crimp |
| 位数 | 16 | 典型触点布局 | 2.54 [0.100] |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | CST-100 |
| 制造商全称 | AMP | 产品子类型 | CST-100 Housings |
| 应用细节 | Wire-to-Board | ||
环境参数
| 工作温度 | -55C to 105C | ||
