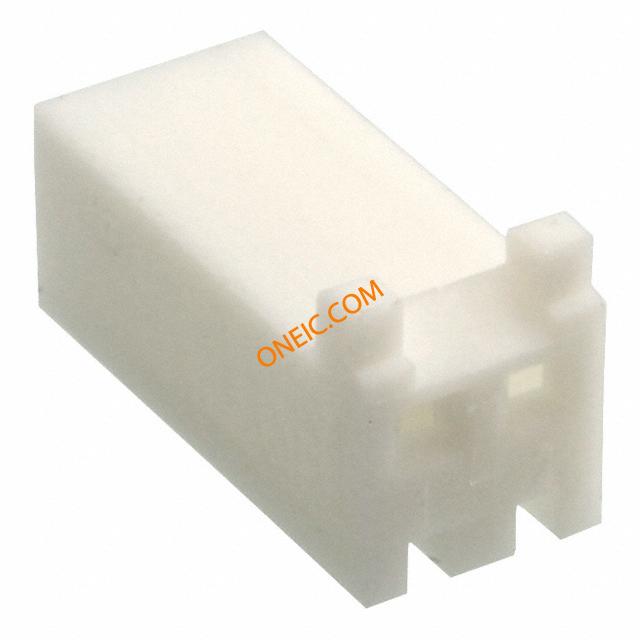

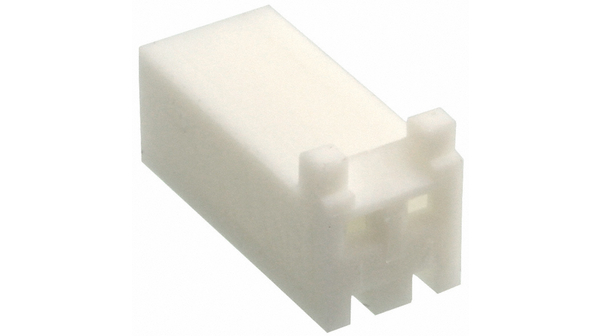

770602-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2 POS CST-100 2 way socket housing,2.54mm pitch Headers & Wire Housings 2P CST-100 HOUSING Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount Product Highlights:CST-100 HousingsNumber of Positions = 2Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CRIMP HOUSING, CST 100, 2WAY Connector;Nylon;Receptacle;2;White;Crimp;180deg;0.1in.;UL94V-0 Plug; wire-board; female; PIN:2; polarized, w/o terminals; 2.54mm Crimp housing 2P, 770602-2, TE Connectivity TE Connectivity CST-100 系列 2.54mm 节距 2 路 直 母 电缆安装 PCB 壳体 |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | CSA,UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - CST-100 Series | 额定电压 | 250V AC |
| 开关功能 | Unlatched | 最大额定电流 | 5/Contact A |
| 绝缘电阻 | :1000Mohm | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Natural | 深度 | 12.95mm |
| 间距 | 2.54 mm | 宽度 | 6.6mm |
| 高度 | 6.6 mm | 长度 | 5.59mm |
| 重量 | 0.019 | 材料（通用） | :Natural, Nylon UL94V-0 |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 出线方向 | 180° | 端接方式 | :Crimp |
| 触头类型 | Female Socket | 柱间距 | 2.54mm |
| 第二连接器 | With | 外壳颜色 | White |
| 安装类型 | Straight | 行程角度 | Straight° |
| 连接器类型 | Crimp | 接触镀层 | 2.54 [0.100] |
| 紧固类型 | Locking Ramp | 安装样式 | Free Hanging |
| 排数 | 1 | 连接器用途 | Receptacle |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 总长度 | 5.59 mm | 安装特性 | Without |
| 包装数量 | 500 | 面板安装类型 | Without |
| 主要材料 | InterconnectSystem | 导线端接方式 | Crimp |
| 连接器 - 电缆 | plug | 插针孔直径 | 0.1" |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 配接方向 | Without | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
| 中心触点表面处理 | 0.1 | 第一连接器安装类型 | :PCB |
| 第一连接器安装特征 | 1x2 | ||
产品信息
| SPG | 1 | 备注 | Accepts Contact Part No. 770601-1. |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | CST-100 | 制造商全称 | AMP |
| 产品子类型 | CST-100 Housings | 适配器系列 | CST-100 |
| 单元数量 | 1 | 应用细节 | Wire-to-Board |
环境参数
| 工作温度 | -55C to 105C | ||
相关型号
GLD140D
Condor / SL Power
Linear and Switching Power Supplies 140W +5/+24/+12/-12V

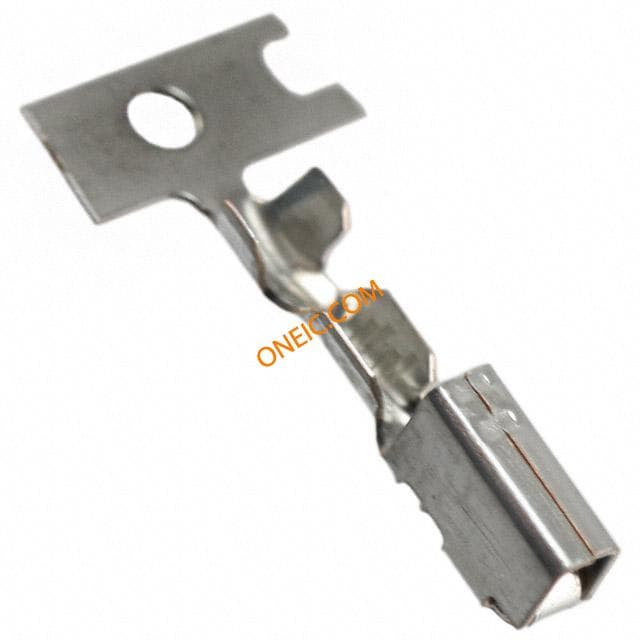

770601-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 22-26AWG TIN CRIMP Contact female,crimp,26-22AWG,CST-100 Headers & Wire Housings CST-100 CRIMP TERM Reel of 5500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:CST-100 ContactsWire Termination Type = CrimpPre-Tin Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, SOCKET, 26-22AWG CONTACT, CRIMP, SOCKET, 26-22AWG, REEL CST-100CONTACTSTRIPSN Contact; female; 22÷26AWG; CST-100

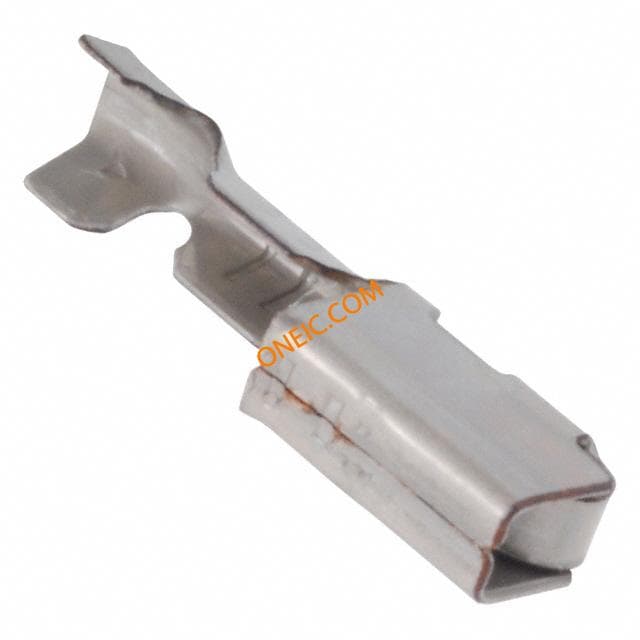

770601-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 22-26AWG GOLD CRIMP Contact female crimp 26-22AWG CST-100 Headers & Wire Housings CST-100 CONTACT Contact SKT Crimp ST Cable Mount Strip Product Highlights:CST-100 ContactsWire Termination Type = CrimpGold (30) Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CST-100CONNCONTACTS,CST-100CONTACTSTRIPAU TE Connectivity CST-100 系列 母 压接接线端子, 压接, 镀金镀镍触点

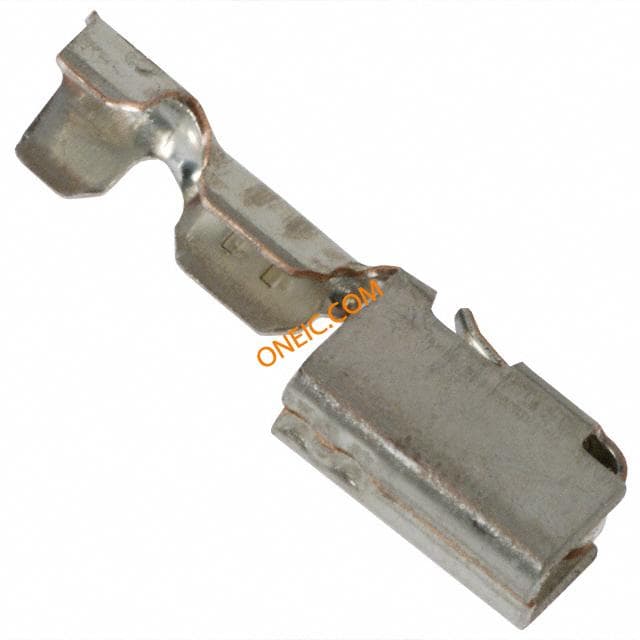

770666-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece MTA, CST, CST-100 II and SL Contacts CONN TERM CRIMP CST-100 TIN Tin plated crimp contact Headers & Wire Housings CST-100 CRIMP CNT Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:CST-100 ContactsWire Termination Type = CrimpTin Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, CRIMP, RECEPTACLE, 26-22AWG Contact;PhosphorBronze;26-22AWG;Box;0.065in.;Tin;Crimp TE Connectivity CST-100 系列 母 压接触点, 压接, 镀锡触点

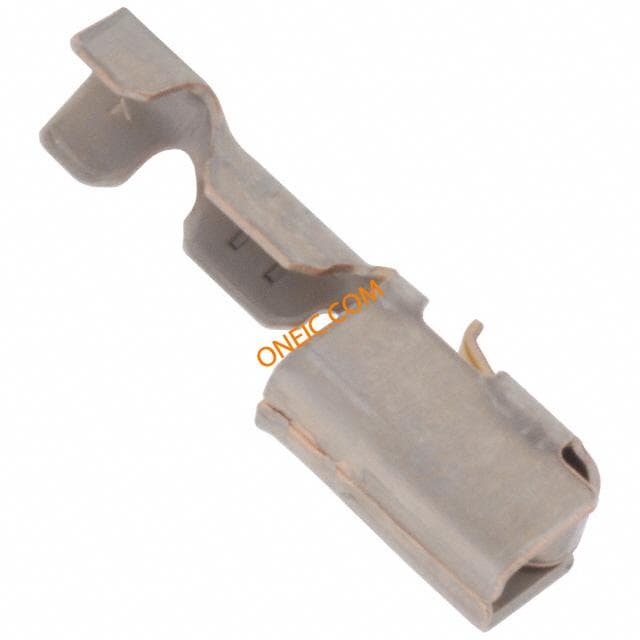

770666-2
