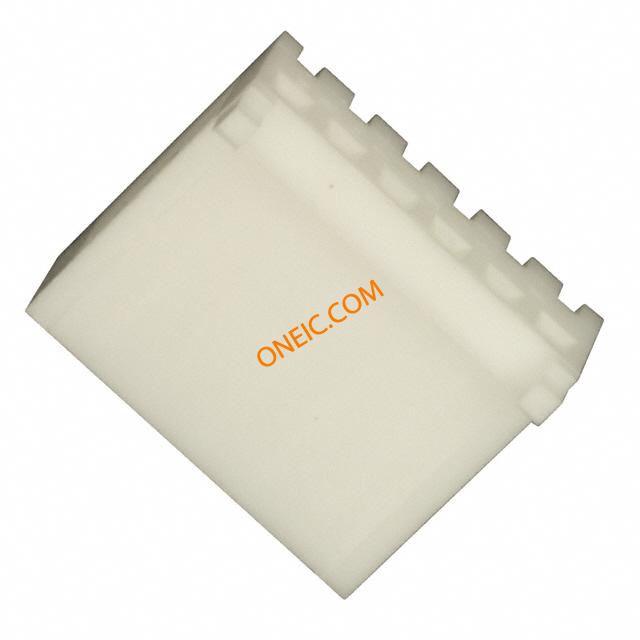

770602-6

点击放大查看

770602-6

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 6 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6 POS CST-100 6 way socket housing,2.54mm pitch Headers & Wire Housings 6POS CST-100 HSNG Conn Housing RCP 6 POS 2.54mm Crimp ST Product Highlights:CST-100 HousingsNumber of Positions = 6Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CRIMP HOUSING, CST 100, 6WAY Connector;Nylon;Receptacle;6;White;Crimp;180deg;0.1in.;UL94V-0 TE Connectivity CST-100 系列 2.54mm 节距 6 路 直 母 电缆安装 PCB 壳体
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量500

合规参数

RoHSLead free / RoHS Compliant标准RoHSCompliant,ELVCompliant
海关税号85322400无铅定义Not relevant for lead free process
认证机构CSA,ULRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - CST-100 Series开关功能Unlatched
最大额定电流5/Contact A绝缘电阻:1000Mohm
最小供电电压250VAC

机械参数

颜色Natural深度12.95mm
间距2.54 mm宽度6.6mm
高度6.6 mm长度15.75mm
重量0.049材料（通用）:Natural, Nylon UL94V-0
包装方式Bulk遮蔽类型No
出线方向180°端接方式:Crimp
触头类型Female Socket第二连接器With
外壳颜色White安装类型Straight
行程角度Straight°连接器类型Crimp
接触镀层2.54 [0.100]紧固类型Locking Ramp
安装样式Free Hanging排数1
连接器用途Receptacle触头材料Phosphor Bronze
壳体材料Nylon总长度15.75 mm
安装特性Without包装数量500
面板安装类型Without主要材料InterconnectSystem
导线端接方式Crimp插针孔直径0.1"
端接样式Crimp第一触头极性Socket (Female)
配接方向Without触点数6
接触件端接Crimp位数6
中心触点表面处理0.1第一连接器安装类型:PCB

产品信息

备注Accepts Contact Part No. 770601-1.类型Housing
连接器性别RCP系列CST-100
制造商全称AMP产品子类型CST-100 Housings
应用细节Wire-to-Board

环境参数

工作温度-55C to 105C

文档与媒体

PDF 文档
6902.pdf

相关型号

暂无图片

GLD140D

Condor / SL Power

Linear and Switching Power Supplies 140W +5/+24/+12/-12V

详情

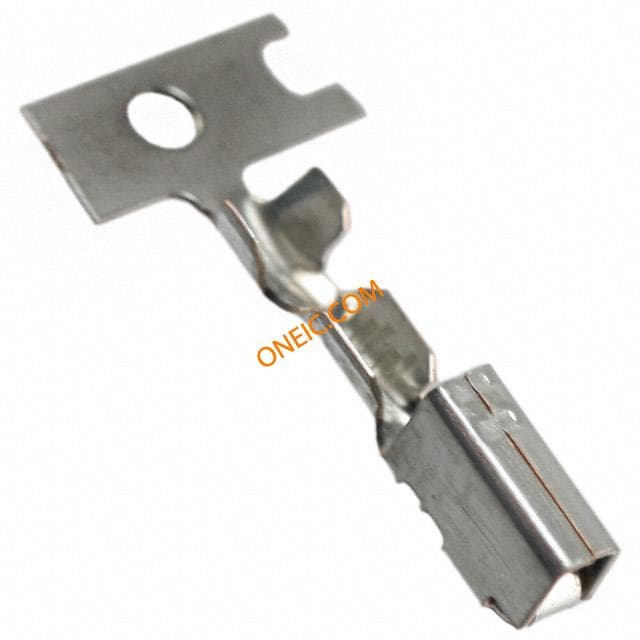

770601-1

770601-1

te connectivity / amp

Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 22-26AWG TIN CRIMP Contact female,crimp,26-22AWG,CST-100 Headers & Wire Housings CST-100 CRIMP TERM Reel of 5500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:CST-100 ContactsWire Termination Type = CrimpPre-Tin Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, SOCKET, 26-22AWG CONTACT, CRIMP, SOCKET, 26-22AWG, REEL CST-100CONTACTSTRIPSN Contact; female; 22÷26AWG; CST-100

¥0.1411
详情

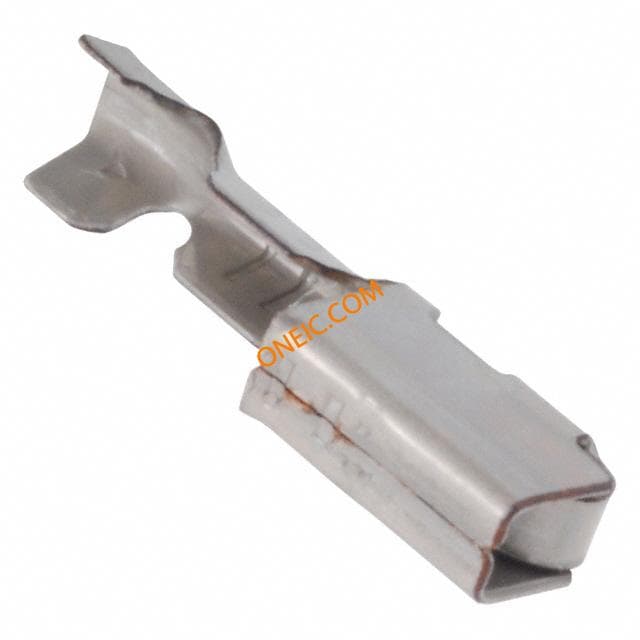

770601-2

770601-2

te connectivity / amp

Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 22-26AWG GOLD CRIMP Contact female crimp 26-22AWG CST-100 Headers & Wire Housings CST-100 CONTACT Contact SKT Crimp ST Cable Mount Strip Product Highlights:CST-100 ContactsWire Termination Type = CrimpGold (30) Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CST-100CONNCONTACTS,CST-100CONTACTSTRIPAU TE Connectivity CST-100 系列 母 压接接线端子, 压接, 镀金镀镍触点

¥1.5984
详情

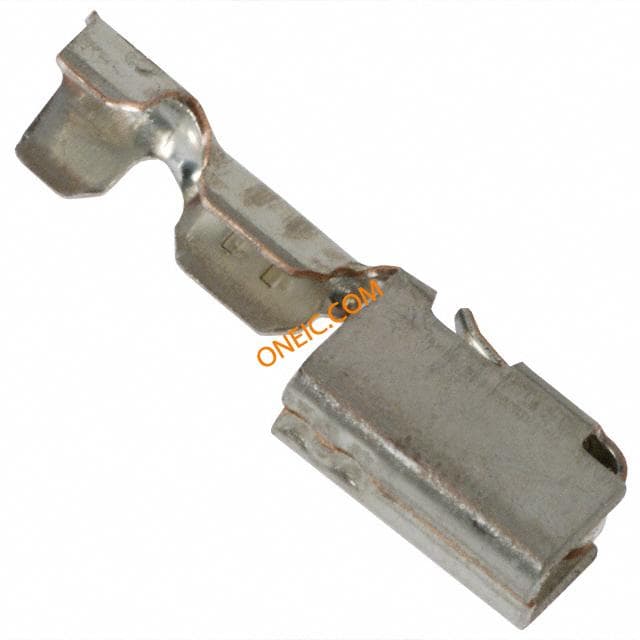

770666-1

770666-1

te connectivity / amp

Contact SKT Crimp ST Cable Mount Loose Piece MTA, CST, CST-100 II and SL Contacts CONN TERM CRIMP CST-100 TIN Tin plated crimp contact Headers & Wire Housings CST-100 CRIMP CNT Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:CST-100 ContactsWire Termination Type = CrimpTin Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, CRIMP, RECEPTACLE, 26-22AWG Contact;PhosphorBronze;26-22AWG;Box;0.065in.;Tin;Crimp TE Connectivity CST-100 系列 母 压接触点, 压接, 镀锡触点

¥0.2160
详情

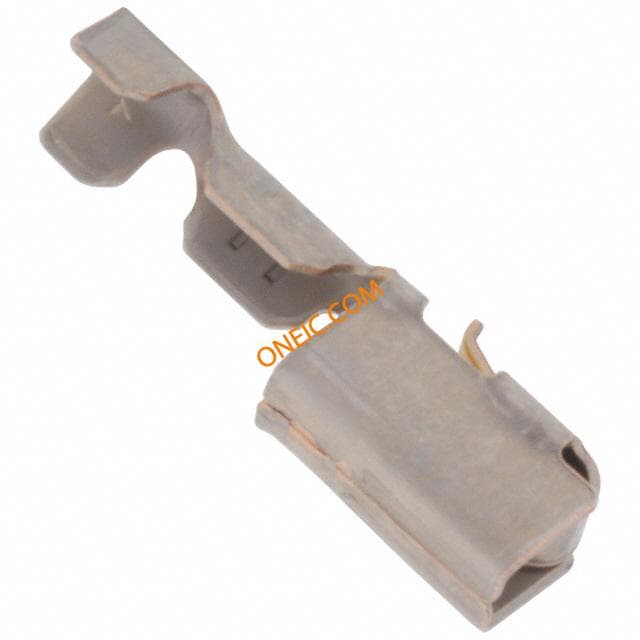

770666-2
