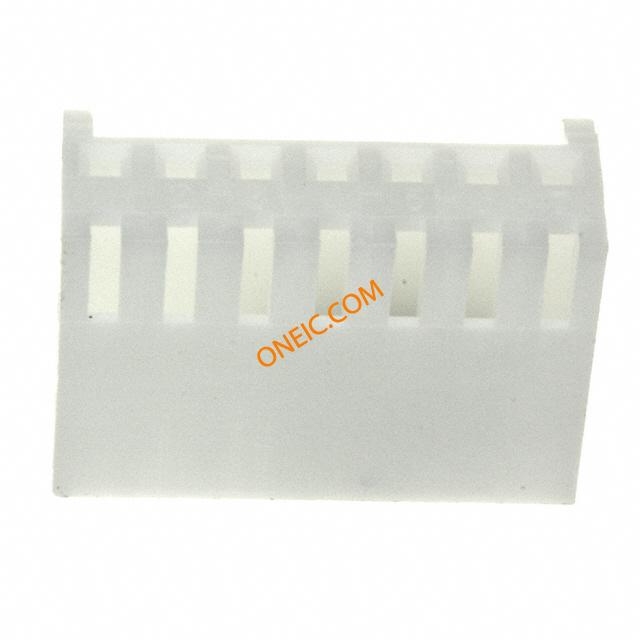

770602-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7 POS CST-100 Headers & Wire Housings CST-100 HSG 7P Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount Product Highlights:CST-100 HousingsNumber of Positions = 7Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CRIMP HOUSING, CST 100, 7WAY Connector;Nylon;Receptacle;7;White;Crimp;180deg;0.1in.;UL94V-0 |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | CSA,UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - CST-100 Series | 开关功能 | Unlatched |
| 最大额定电流 | 5/Contact A | 绝缘电阻 | :1000Mohm |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Natural | 深度 | 12.95 mm |
| 间距 | 2.54 mm | 高度 | 6.6 mm |
| 重量 | 0.06 | 材料（通用） | :Natural, Nylon UL94V-0 |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 出线方向 | 180° | 端接方式 | :Crimp |
| 触头类型 | Female Socket | 第二连接器 | With |
| 外壳颜色 | White | 安装类型 | Straight |
| 行程角度 | Straight° | 连接器类型 | Crimp |
| 接触镀层 | :- | 紧固类型 | Locking Ramp |
| 安装样式 | Free Hanging | 排数 | 1 |
| 连接器用途 | Receptacle | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 总长度 | 18.29 mm |
| 安装特性 | Without | 面板安装类型 | Without |
| 主要材料 | InterconnectSystem | 导线端接方式 | Crimp |
| 插针孔直径 | 0.1" | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | Without |
| 触点数 | 7 | 接触件端接 | Crimp |
| 位数 | 7 | 中心触点表面处理 | 0.1 |
| 典型触点布局 | 2.54 [0.100] | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | CST-100 |
| 制造商全称 | AMP | 产品子类型 | CST-100 Housings |
| 应用细节 | Wire-to-Board | ||
环境参数
| 工作温度 | -55C to 105C | ||
