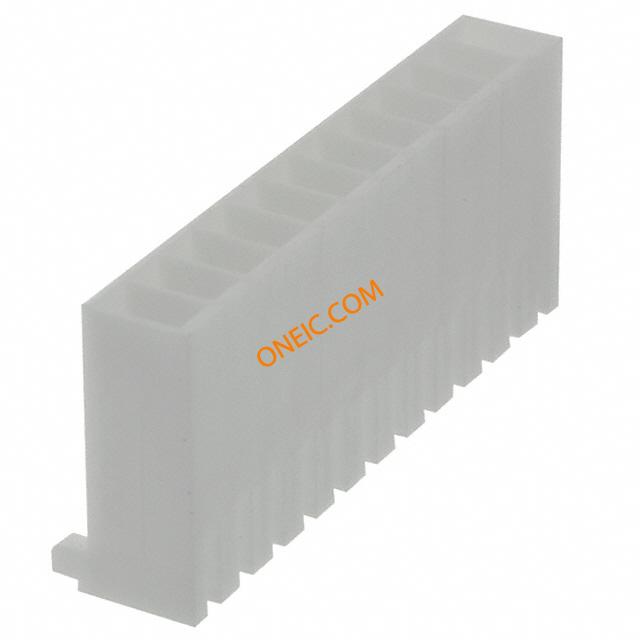

点击放大查看
1-770602-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12 POS CST-100 2.54mm housing rcpt.12w,crimp,white,180° Headers & Wire Housings CST-100 12P HSG Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:CST-100 HousingsNumber of Positions = 12Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Nylon;Receptacle;12;White;Crimp;180deg;0.1in.;UL94V-0 TE Connectivity CST-100 系列 2.54mm 节距 12 路 直 母 PCB 壳体 |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 无铅定义 | Not relevant for lead free process | 认证机构 | CSA,UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 最大额定电流 | 5/Contact A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Natural | 深度 | 12.95mm |
| 间距 | 2.54 mm | 宽度 | 6.6mm |
| 高度 | 6.6 mm | 长度 | 30.99mm |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 出线方向 | 180° | 方向 | 直 |
| 端接方式 | Crimp | 触头类型 | Female Socket |
| 第二连接器 | With | 外壳颜色 | White |
| 安装类型 | Straight | 行程角度 | Straight° |
| 连接器类型 | Crimp | 接触镀层 | 2.54 [0.100] |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 连接器用途 | Receptacle | 壳体材料 | Nylon |
| 总长度 | 30.99 mm | 安装特性 | Without |
| 包装数量 | 500 | 面板安装类型 | Without |
| 主要材料 | InterconnectSystem | 导线端接方式 | Crimp |
| 插针孔直径 | 0.1" | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 12 | 接触件端接 | Crimp |
| 位数 | 12 | 中心触点表面处理 | 0.1 |
产品信息
| 备注 | Accepts Contact Part No. 770601-1. | 类型 | Housing |
| 连接器性别 | RCP | 系列 | CST-100 |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 产品子类型 | CST-100 Housings | 应用细节 | Wire-to-Board |
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号
770601-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 22-26AWG TIN CRIMP Contact female,crimp,26-22AWG,CST-100 Headers & Wire Housings CST-100 CRIMP TERM Reel of 5500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:CST-100 ContactsWire Termination Type = CrimpPre-Tin Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, SOCKET, 26-22AWG CONTACT, CRIMP, SOCKET, 26-22AWG, REEL CST-100CONTACTSTRIPSN Contact; female; 22÷26AWG; CST-100
770601-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 22-26AWG GOLD CRIMP Contact female crimp 26-22AWG CST-100 Headers & Wire Housings CST-100 CONTACT Contact SKT Crimp ST Cable Mount Strip Product Highlights:CST-100 ContactsWire Termination Type = CrimpGold (30) Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CST-100CONNCONTACTS,CST-100CONTACTSTRIPAU TE Connectivity CST-100 系列 母 压接接线端子, 压接, 镀金镀镍触点
770666-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece MTA, CST, CST-100 II and SL Contacts CONN TERM CRIMP CST-100 TIN Tin plated crimp contact Headers & Wire Housings CST-100 CRIMP CNT Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:CST-100 ContactsWire Termination Type = CrimpTin Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, CRIMP, RECEPTACLE, 26-22AWG Contact;PhosphorBronze;26-22AWG;Box;0.065in.;Tin;Crimp TE Connectivity CST-100 系列 母 压接触点, 压接, 镀锡触点
770666-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece MTA, CST, CST-100 II and SL Contacts CONN SOCKET 22-26AWG GOLD CRIMP Gold plated crimp contact Headers & Wire Housings CST-100 CRIMP TERM Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:CST-100 ContactsWire Termination Type = CrimpGold (30) over Nickel Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, PIN, CRIMP CONTACT,RECEPTACLE,CST-100,26-22AWG,GOLD(30)OVERNICKEL,CRIMP TE Connectivity CST-100 系列 母 压接触点, 压接, 镀金镀镍触点
