650948-5

点击放大查看

650948-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 PL 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 48POS RT ANG PCB DIN 41612 Connectors Type C Pin Header 48 Position Conn DIN 41612 PL 48 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 048 EURO TYPE C PIN ST ASSY
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量150

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Wave solder capable to 240°C
RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612供电电压250
最大额定电流1.5

机械参数

尺寸Half颜色Gray
间距2.54 mm高度12.62 mm [ .497 in ]
涂层Without包装方式Bulk
屏蔽否端接方式Solder
触点尺寸0.64 [.025] Sq.触头类型Solder Post
安装类型Through Hole端子尺寸.64 x .64 mm [ .025 x .025 in ]
连接器类型Plug, Male Pins接触镀层Gold Over Nickel
触点时序否安装样式不带
排数3插入件材料黄铜
触头材料Brass壳体材料Polyester
安装特性With面板安装类型通孔 - 焊接
尺寸/外形II先合后断No
端接样式Solder Pin触点数48
位数48触头长度-柱3.3 mm [ .129 in ]
绝缘材料 - 材质Polyester, Glass Filled安装孔直径带有
接触件表面处理 - 配合锡铅端子柱长度3.30 [0.130]
接触镀层厚度2.54 – 5.08 µm [ 100 – 200 µin ]

产品信息

类型DIN 41612等级II
样式1/2 C连接器性别Plug
系列650948导向方式Without
产品子类型Type C Connectors连接类型Printed Circuit Board
列数16工具类型/特性No
加载位置数All

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C

文档与媒体

在线文档
650948-5?RQPN=650948-5

相关型号

5535070-4

5535070-4

te connectivity / amp

Conn DIN 41612 RCP 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 48POS VERT PCB Receptacle 48way socket DIN41612Eurocard DIN 41612 Connectors RECPT 48P VERT TYPE C Conn DIN 41612 RCP 48 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR RECEPTACLE 48WAY Receptacle48waysocketDIN41612Eurocard 2.54 mm 48 Position Receptacle Through Hole Eurocard Type C Connector TE Connectivity Eurocard 系列 48 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接

¥9.0600
详情
535071-4

535071-4

te connectivity / amp

Conn DIN 41612 RCP 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 48POS VERT PCB DIN 41612 Connectors 48P PCB EURO RECEPT Conn DIN 41612 RCP 48 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 CONNECTOR, RECEPTACLE, DIN, THT, 48WAY 2.54 mm 48 Position Receptacle Through Hole Eurocard Type C Connector

¥11.5920
详情
926040-2

926040-2

te connectivity / amp

Conn Housing RCP 48 POS 2.54mm Crimp ST Eurocard Type C CONN DIN RECEPT 48POS VERT PCB DIN 41612 Connectors 48P MOD 4 HSG 1200 Conn Housing RCP 48 POS 2.54mm Crimp ST Product Highlights:Type C HousingsReceptacle48 PositionsTerminate To WireNo PCB Retention FeatureSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR RECEPTACLE 48WAY 48P MOD 4 HSG

¥33.9206
详情

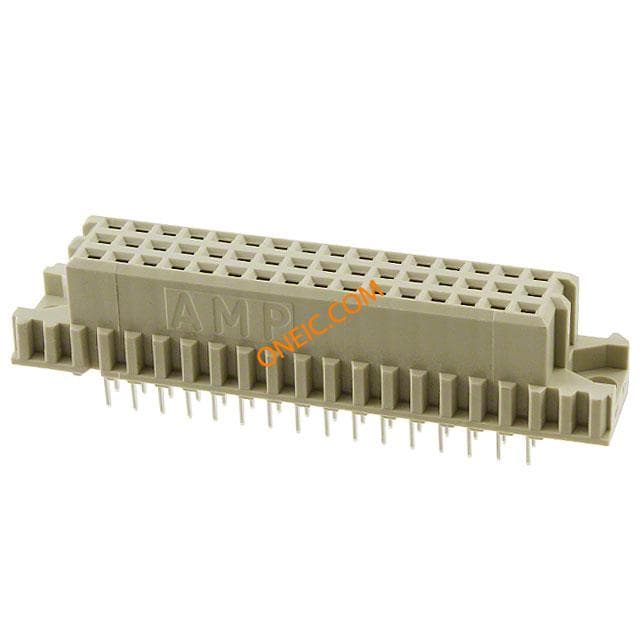

535071-5

535071-5

te connectivity / amp

Conn DIN 41612 F 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type C 048 EURO TYPE C RECEPT ST ASSY DIN 41612 Connectors Type C Receptacle 48 Position Eurocard Type C Product Highlights:ConnectorReceptacleType = Type C48 PositionsRows Loaded = A, B, CSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612

¥25.7400
详情
5650893-5

5650893-5

te connectivity / amp

Conn DIN 41612 RCP 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN RECEPT RTANG 48POS .100 DIN DIN 41612 Connectors ASSY,RECEPT,EUROCARD TYPE R/2,L-FREE,48, Conn DIN 41612 RCP 48 POS 2.54mm Solder RA Thru-Hole Product Highlights:ReceptacleNumber of Positions = 48PCB Mount Angle = Right AngleYes PCB Retention FeatureBoardlock(s)Search Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR, RECEPTACLE, 48 POS 48 Position 3 Row 2.54 mm Pitch Right Angle Eurocard Type R Receptacle Connector ASSY,RECEPT,EUROCARD,TYPE R/2,L-FREE,48,

¥17.1360
详情

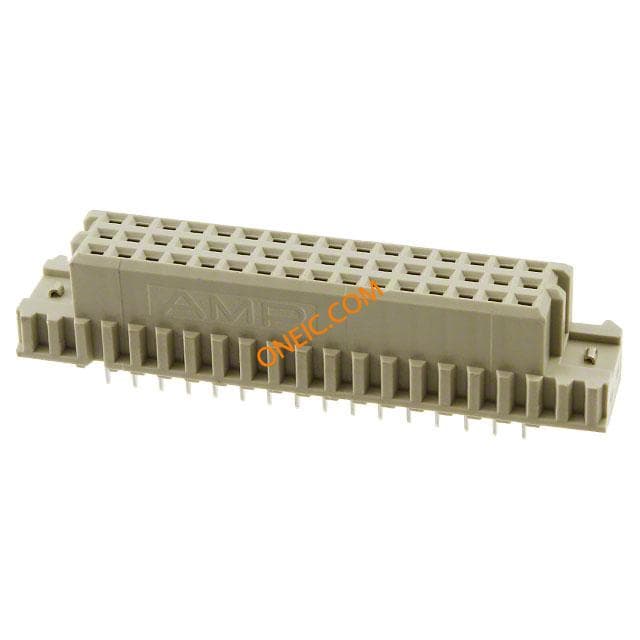

536484-5

536484-5

te connectivity / amp

Conn DIN 41612 F 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type C 048 EURO TYPE C RECEPT BL ASSY DIN 41612 Connectors 048 EURO TYPE C RECE 150 Eurocard Type C Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612

¥14.3136
详情
650868-4

650868-4

te connectivity / amp

Conn DIN 41612 RCP 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN DIN RECEPT 48POS RT ANG PCB DIN 41612 Connectors 48P R/A EURO RECPT 280

¥21.9600
详情
5535070-5

5535070-5

te connectivity / amp

Conn DIN 41612 RCP 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 48POS VERT PCB DIN 41612 Connectors Type C Receptacle 48 Position Conn DIN 41612 RCP 48 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR RECEPTACLE 48WAY EurocardReceptacle;48;PhosphorBronze;Polyester;0.13in.;Vertical;Gray Type C 48 Position 2.54 mm Receptacle Through Hole Eurocard Connector ASSY,RECEPTACLE,EUROCARD,TYPE

¥13.4640
详情
650893-5

650893-5

te connectivity / amp

Conn DIN 41612 RCP 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN RECEPT RTANG 48POS .100 DIN DIN 41612 Connectors EUROCARD RA REC 48P 280 CONN DIN 048 EURO TYPE R RECEPT BL ASSY

¥23.0400
详情

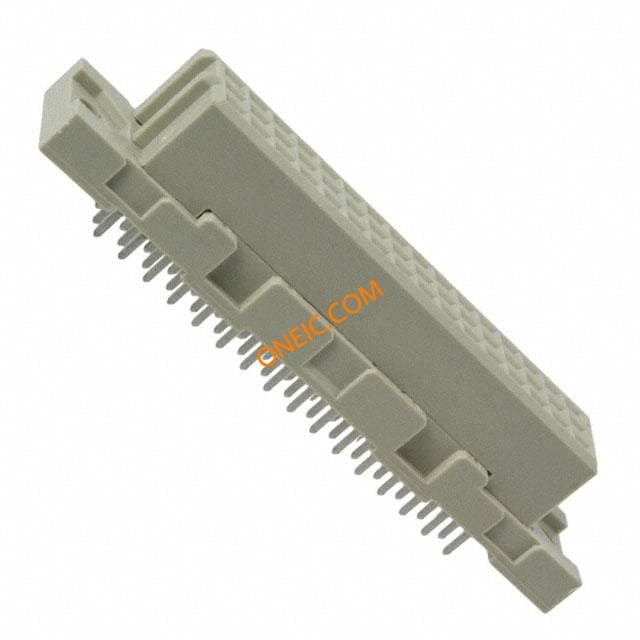

8-1393640-5

8-1393640-5

te connectivity / amp

Conn DIN 41612 SKT 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type C EUROCARD TYPE C Recept pcb vert 48w 3row 2.54mm Eurocard Conn DIN 41612 SKT 48 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector AssemblyConnector Style = ReceptacleContact Type = SocketType = Type C2.54 mm CenterlineSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 CONNECTOR, RECEPTACLE, 48POS V42254B2201C480=PC612FEDERLEI Plug; DIN 41612,type C; female; PIN:48; a+b+c; THT; straight Multipole socket C/2 48p DIN 41612 2 3 x 16 a + b + c, 8-1393640-5, TE Connectivity TE Connectivity Eurocard 系列 48 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接 V42254B2201C480=PC612 FEDERLEI

¥18.1200
详情
2-1393641-5

2-1393641-5

te connectivity / amp

Conn DIN 41612 RCP 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type C EUROCARD TYPE C DIN 41612 Connectors V42254B2202C480 PC612 FEDERLEI Conn DIN 41612 RCP 48 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 Multipole socket C/2 48p DIN 41612 2 3 x 16 a + b + c, 2-1393641-5, TE Connectivity V42254B2202C480=PC612 FEDERLEI

¥16.7040
详情
5650868-4

5650868-4

te connectivity / amp

Conn DIN 41612 RCP 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN DIN RECEPT 48POS RT ANG PCB DIN 41612 Connectors RECPT 48P R/A TYPE R Conn DIN 41612 RCP 48 POS 2.54mm Solder RA Thru-Hole Product Highlights:Receptacle48 PositionsPCB Mount Angle = Right AngleNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 TYPERTTRSDRTLR/A,ASSY,RECEPTACLE,EUROCARD,TYPER/2,LEAD-F 48 Position Right Angle Solder Post No PCB Retention Receptacle Eurocard Type R TE Connectivity Eurocard 系列 48 路 2.54mm 节距, R型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插座, 焊接端接 ASSY,RECEPTACLE,EUROCARD,TYPE

¥14.2560
详情

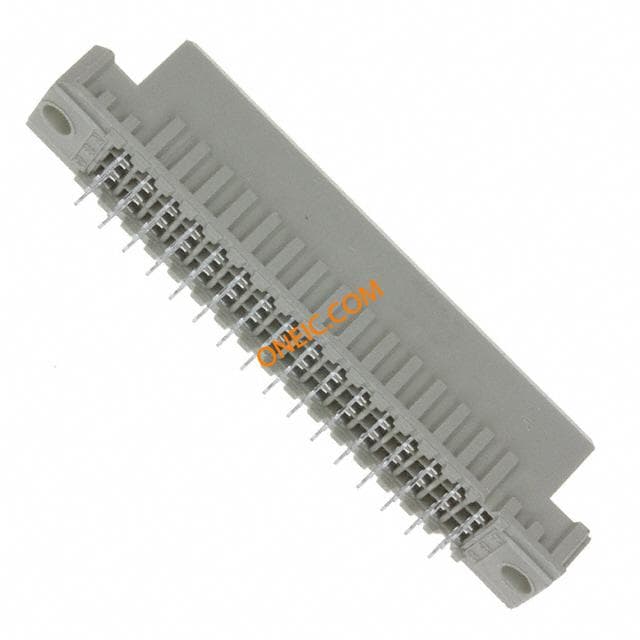

5535091-5

5535091-5

te connectivity / amp

Conn DIN 41612 RCP 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN RECEPT VERT 48 POS DIN PCB DIN 41612 Connectors Type C Receptacle 48 Position Conn DIN 41612 RCP 48 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorReceptacleType = Type C48 PositionsRows Loaded = A, B, CSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 EurocardReceptacle;48;PhosphorBronze;Polyester;0.098in.;Vertical;Gray CONN DIN ASSEMBLY,RECEPTACLE,EUROCARD,T

¥14.1120
详情
5536397-5

5536397-5

te connectivity / amp

Conn DIN 41612 F 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type C RCPT EURO TYPE C/2 48 DIN 41612 Connectors ASSY REC EURO TYP C/2 PBF 48 . Conn DIN 41612 F 48 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 48 Position 2.54 mm Receptacle Solder Through Hole Eurocard Type C Connector ASSY,RECEPT,EURO,TYPE C/2,LEAD

¥11.5920
详情
535034-5

535034-5

te connectivity / amp

Conn DIN 41612 RCP 48 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type C CONN DIN RECEPT 48POS VERT PCB Eurocard C Recptacle assembly 16+16+16P DIN 41612 Connectors Type C Receptacle 48 P w/ Action Pin Conn DIN 41612 RCP 48 POS 2.54mm Press Fit ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 048EUROTYPECRECEPTAPASSY 48 Position 3 Row 2.54 mm Pitch Type C Vertical Press Fit Socket Connector

¥20.9520
详情
535070-4

535070-4

te connectivity / amp

Conn DIN 41612 RCP 48 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors RECEPTACLE 48 POS TYPE C Eurocard Type C CONN DIN RECEPT 48POS VERT PCB

¥25.9920
详情
1393642-9

1393642-9

TE Connectivity / AMP

DIN 41612 コネクタ V42254B2240C480 PC612 FEDERLEI Eurocard Type C EUROCARD TYPE C DIN 41612 Connectors V42254B2240C480 PC612 FEDERLEI Eurocard Type C Product Highlights:Type C ConnectorsReceptacle48 PositionsRows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 V42254B2240C480=PC612 FEDERLEI

¥27.0000
详情
5650868-5

5650868-5

te connectivity / amp

Conn DIN 41612 RCP 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN DIN RECEPT 48POS RT ANG PCB 2.54mm,rcpt,DIN41612,solder,90°,PCB,48w DIN 41612 Connectors Type R Receptacle 48 Position Conn DIN 41612 RCP 48 POS 2.54mm Solder RA Thru-Hole Search Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 SOCKET, DIN41612, R/A, R, 48WAY RECEPTACLE,5650868-5 CONN DIN TE Connectivity Eurocard 系列 48 路 2.54mm 节距, 1/2 R型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插座, 焊接端接 ASSY,RECEPTACLE,EUROCARD,TYPE R/2,LEAD-F

¥9.0600
详情

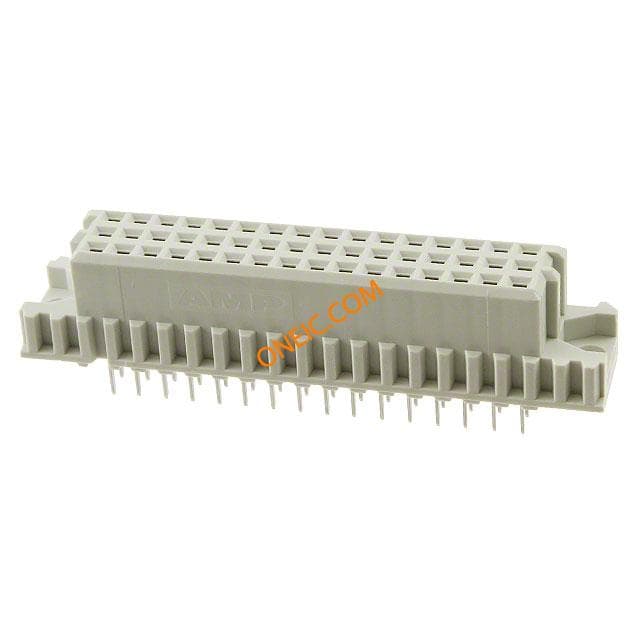

5535071-5
