5535071-5

点击放大查看

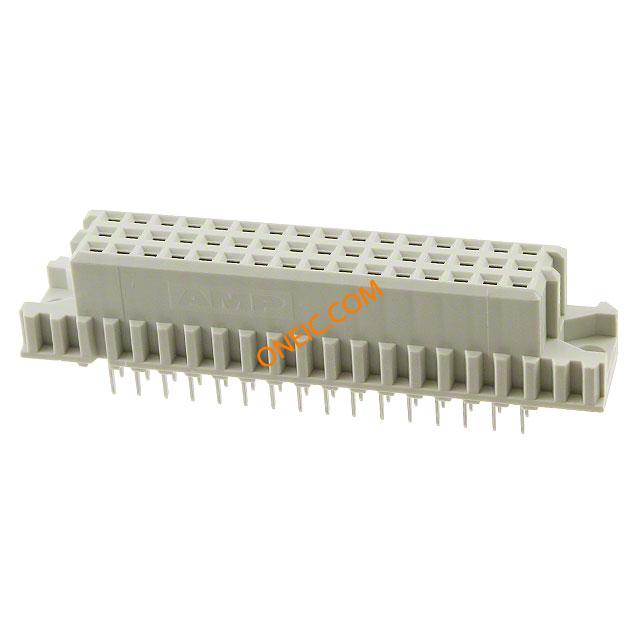

5535071-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 F 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type C ASSY,RECEPT EUROCARD TYPE C/2 DIN 41612 Connectors Type C Receptacle 48 Position Conn DIN 41612 F 48 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacle48 PositionsRows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 EurocardReceptacle;48;PhosphorBronze;Polyester;0.18in.;Vertical;Gray ASSY,RECEPTACLE,EUROCARD,TYPE C/2,LEAD-F
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量150

合规参数

RoHSLead free / RoHS Compliant标准DIN41612,IEC603-2
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c认证机构CSA,UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612额定电压250V

机械参数

尺寸Half颜色Gray
间距2.54 mm涂层Without
包装方式Bulk屏蔽否
外壳尺寸C端接方式Solder
触点尺寸0.30 x 0.61 [.012 x .024]触头类型Solder Post
固定类型否引脚长度（针脚）0.18"
引脚直径II安装类型Through Hole
行程角度Straight连接器类型Receptacle, Female Sockets
接触镀层Tin安装样式不带
排数3端子样式.25 x .25 mm [ .6 x .6 in ]
高度（英寸）6.4插入件材料铜合金
触头材料Copper Alloy壳体材料Polymer
总长度2.1"安装特性With
面板安装类型通孔 - 焊接主要材料Eurocard
尺寸/外形标准先合后断No
插针孔直径0.1"连接器间距2.54
端接样式Solder触点数48
接触件尾部长度4.82位数48
触头长度-柱信号（数据）绝缘材料 - 材质Polymer Thermoplastic, Glass Filled
安装孔直径0.11"接触件表面处理 - 配合锡
典型触点布局ACTION PIN端子柱长度4.57 [0.180]

产品信息

类型DIN 41612等级II
样式1/2 C连接器性别Receptacle
系列5535071制造商全称Eurocard
产品子类型Type C Connectors连接类型Printed Circuit Board
工具类型/特性No加载位置数All

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C
