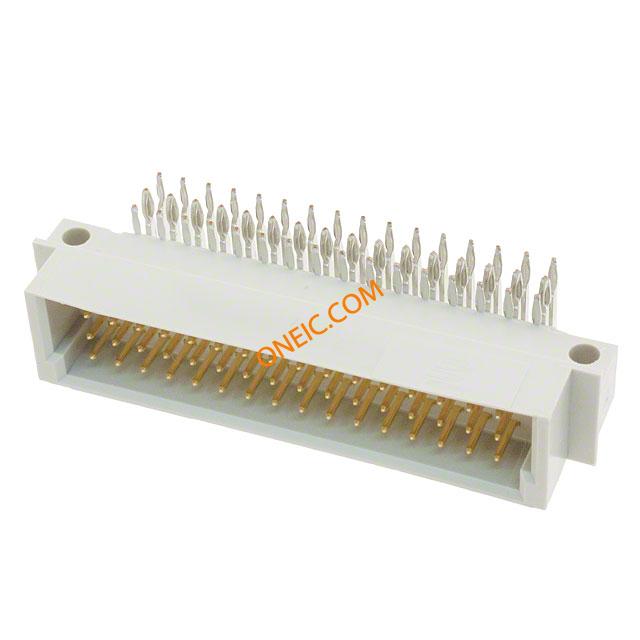

216398-4

点击放大查看

216398-4

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 PL 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type C 48P.IEC-C MALE CONN DIN 41612 Connectors 48P.IEC-C MALE CONN Conn DIN 41612 PL 48 POS 2.54mm Solder RA Thru-Hole Product Highlights:With ContactsContact Gender = PinHousing Gender = ReceptacleType = Type C2.54 mm Centerline Type C 48 Position 2.54 mm Right Angle Through Hole Plug Connector DIN 41612
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Trays

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

机械参数

尺寸Half颜色Gray
间距2.54 mm涂层Without
包装方式Tray端接方式Solder
触点尺寸0.64 [.025] Sq.触头类型Compliant Post
尾部长度4.9 mm安装类型Through Hole
连接器类型Plug, Male Pins接触镀层Gold Over Nickel
排数3电路板厚度1.57 [0.062]
触头材料Phosphor Bronze壳体材料Polyester
安装特性Without先合后断No
端接样式Solder Pin触点数48
位数48绝缘材料 - 材质Polyester Thermoplastic
端子柱长度2.90 [0.114]接触镀层厚度31.5µin (0.80µm)

产品信息

类型DIN 41612等级II
样式1/2 C连接器性别Plug
系列216398产品子类型Type C Connectors
连接类型Printed Circuit Board工具类型/特性Yes
加载位置数All

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C
