650868-5

点击放大查看

650868-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN DIN RECEPT 48POS RT ANG PCB DIN 41612 Connectors Type R Receptacle 48 Position Conn DIN 41612 RCP 48 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Receptacle48 PositionsPCB Mount Angle = Right AngleNo PCB Retention FeatureSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 048 EURO TYPE R RECEPT ASSY
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量140

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Wave solder capable to 240°C
RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612供电电压250
最大额定电流1.5

机械参数

颜色Gray间距2.54 mm
涂层Without包装方式Bulk
屏蔽否端接方式Solder
触头类型Solder Post尾部长度2.79 mm
安装类型Through Hole端子尺寸.3 x .61 mm [ .012 x .024 in ]
连接器类型Receptacle, Female Sockets接触镀层Gold
触点时序否安装样式不带
排数3插入件材料磷青铜
触头材料Phosphor Bronze壳体材料Polyester
安装特性极化面板安装类型通孔 - 焊接
尺寸/外形II先合后断No
端接样式Solder Pin配接方向Without
触点数48位数48
触头长度-柱2.79 mm [ .109 in ]绝缘材料 - 材质Polyester, Glass Filled
安装孔直径带有接触件表面处理 - 配合锡铅
端子柱长度2.79 [0.110]接触镀层厚度2.54 – 5.08 µm [ 100 – 200 µin ]

产品信息

类型DIN 41612等级II
样式1/2 R系列650868
导向方式Without产品子类型Receptacle
列数16加载位置数All

环境参数

级别、等级2工作温度-55°C ~ 125°C

文档与媒体

在线文档
650870-4?RQPN=650870-4
在线文档
650868-5?RQPN=650868-5

相关型号

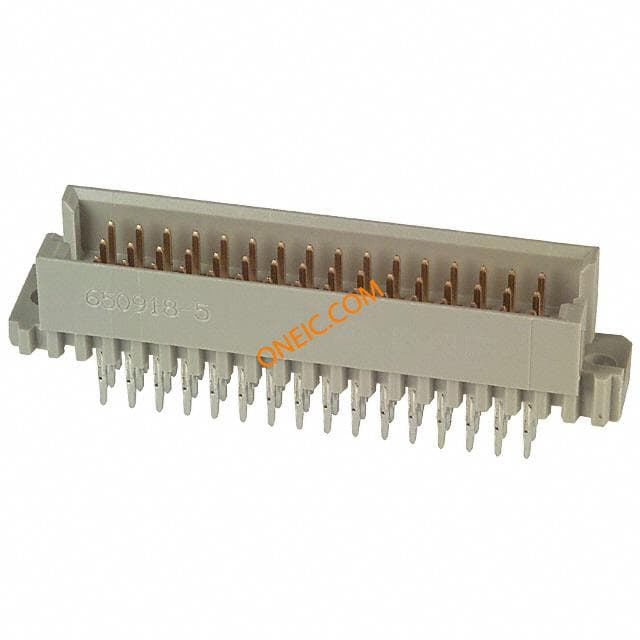

650918-5
