2-1393641-5

点击放大查看

2-1393641-5

制造商
TE Connectivity Ltd.

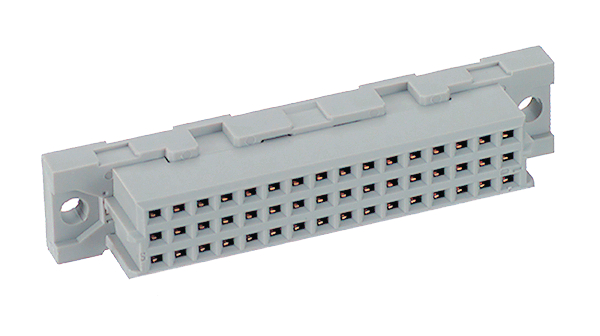

描述Conn DIN 41612 RCP 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type C EUROCARD TYPE C DIN 41612 Connectors V42254B2202C480 PC612 FEDERLEI Conn DIN 41612 RCP 48 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 Multipole socket C/2 48p DIN 41612 2 3 x 16 a + b + c, 2-1393641-5, TE Connectivity V42254B2202C480=PC612 FEDERLEI
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

其他名称V42254B2202C480标准包装数量Bulk
工厂包装数量100

合规参数

RoHSLead free / RoHS Compliant无铅定义Wave solder capable to 240°C
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612测试电压1
极数3 x 16接触电阻≤20 mOhm
最大额定电流1.5 A绝缘电阻≥10 GOhm

机械参数

尺寸Half颜色Gray
间距2.54 mm涂层Without
包装方式Bulk屏蔽否
端接方式Solder触点尺寸0.32 x 0.76 [.013 x .030]
触头类型Solder Post尾部长度4.5 mm
安装类型Through Hole端子尺寸.32 x .76 mm [ .013 x .03 in ]
连接器类型Receptacle, Female Sockets接触镀层Gold or Gold-Palladium
触点时序否安装样式带有
排数3高度（英寸）10.6
插入件材料磷青铜触头材料Copper Alloy
壳体材料Thermoplastic Glass Reinforced安装特性With
面板安装类型通孔 - 焊接尺寸/外形II
先合后断No连接器间距2.54
端接样式Solder Pin触点数48
位数48触头长度-柱信号（数据）
绝缘材料 - 材质Polybutylene Terephthalate (PBT), Polyester, Glass Filled安装孔直径带有
端子柱长度4.50 [0.177]

产品信息

类型DIN 41612等级II
样式1/2 C连接器性别Receptacle
系列1393641导向方式Without
制造商全称V42254B2202C480产品子类型Type C Connectors
连接类型Printed Circuit Board连接方式Soldering-in, 4,5 mm
工具类型/特性No加载位置数All

环境参数

额定等级2温度No
级别、等级2工作温度-55°C ~ 125°C
封装热阻2.39 mm [ .094 in ]

文档与媒体

在线文档
TE.Connect?C=1&M=BYPN&PN=2-1393641-5
