5536407-5

点击放大查看

5536407-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 M 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type C ASSY,PIN,EUROCARD,TYPE C/2 48 DIN 41612 Connectors ASSY PIN EUROCARD TYPE C/2 LEADFREE 48 Eurocard Type C Product Highlights:Type C ConnectorsPlugNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 48 Position Plug Right Angle Through Hole Eurocard Type C Connector ASSY,PIN,EUROCARD,TYPE C/2,LEAD-FREE,48
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

标准包装规格30标准包装数量Bulk

合规参数

RoHSLead free / RoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612供电电压250
最大额定电流1.5

机械参数

尺寸Half颜色Gray
间距2.54 mm高度11.1 mm [ .437 in ]
涂层Without包装方式Bulk
端接方式Solder触点尺寸0.64 [.025] Sq.
触头类型Solder Post安装类型Through Hole
连接器类型Plug, Male Pins接触镀层Tin
安装样式带有排数A, B, C
端子样式.64 x .64 mm [ .025 x .025 in ]插入件材料铜合金
触头材料Copper Alloy壳体材料Polymer
安装特性With面板安装类型通孔 - 焊接
先合后断No端接样式Solder Pin
触点数48位数48
触头长度-柱3.3 mm [ .13 in ]绝缘材料 - 材质Polymer Thermoplastic, Glass Filled
安装孔直径带有接触件表面处理 - 配合锡
端子柱长度3.30 [0.130]接触镀层厚度2.54 – 5.08 µm [ 100 – 200 µin ]

产品信息

类型DIN 41612等级II
样式1/2 C连接器性别Plug
系列5536407产品特性Board Lock
导向方式Without产品子类型Type C Connectors
连接类型Printed Circuit Board列数16
工具类型/特性No加载位置数All

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C封装热阻1.57 mm [ .062 in ]

文档与媒体

在线文档
5536407-5?RQPN=5536407-5

相关型号

5535070-4

5535070-4

te connectivity / amp

Conn DIN 41612 RCP 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 48POS VERT PCB Receptacle 48way socket DIN41612Eurocard DIN 41612 Connectors RECPT 48P VERT TYPE C Conn DIN 41612 RCP 48 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR RECEPTACLE 48WAY Receptacle48waysocketDIN41612Eurocard 2.54 mm 48 Position Receptacle Through Hole Eurocard Type C Connector TE Connectivity Eurocard 系列 48 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接

¥9.0600
详情
926040-2

926040-2

te connectivity / amp

Conn Housing RCP 48 POS 2.54mm Crimp ST Eurocard Type C CONN DIN RECEPT 48POS VERT PCB DIN 41612 Connectors 48P MOD 4 HSG 1200 Conn Housing RCP 48 POS 2.54mm Crimp ST Product Highlights:Type C HousingsReceptacle48 PositionsTerminate To WireNo PCB Retention FeatureSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR RECEPTACLE 48WAY 48P MOD 4 HSG

¥33.9206
详情

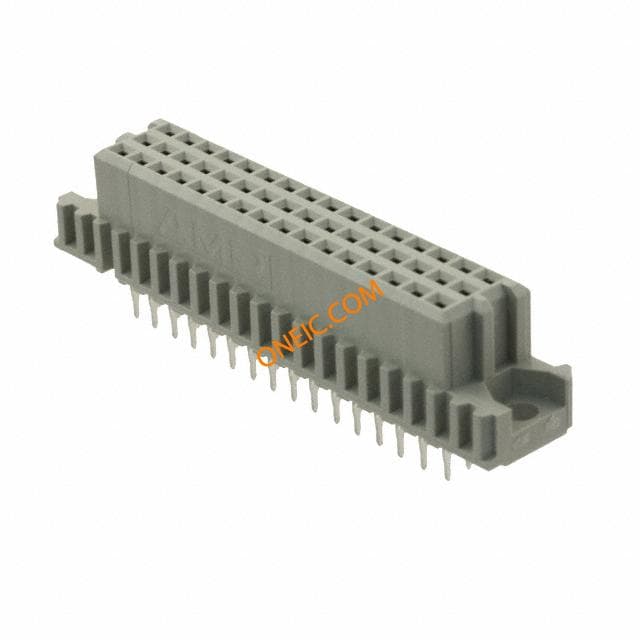

5535034-4
