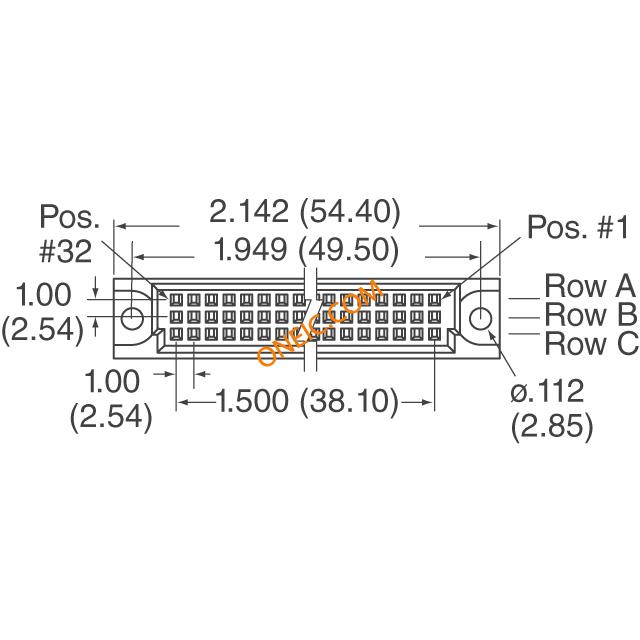

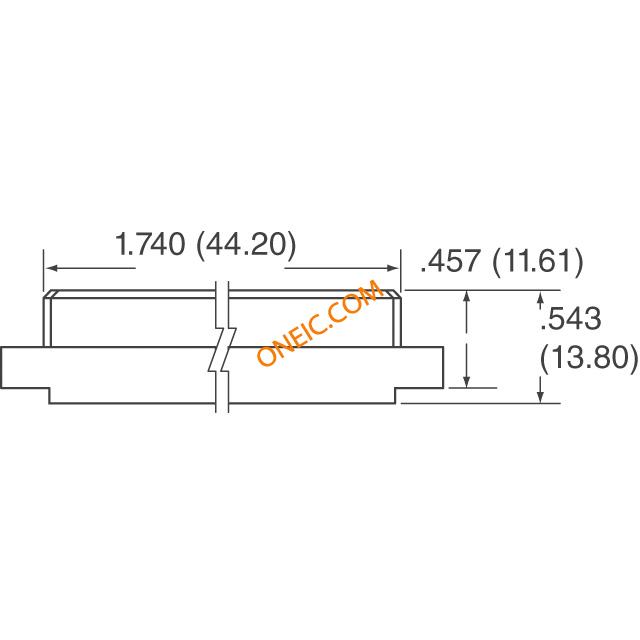

点击放大查看

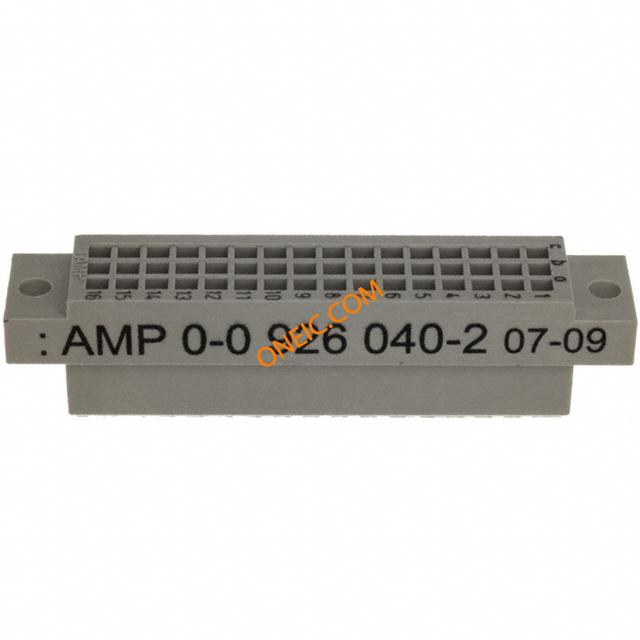

926040-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 48 POS 2.54mm Crimp ST Eurocard Type C CONN DIN RECEPT 48POS VERT PCB DIN 41612 Connectors 48P MOD 4 HSG 1200 Conn Housing RCP 48 POS 2.54mm Crimp ST Product Highlights:Type C HousingsReceptacle48 PositionsTerminate To WireNo PCB Retention FeatureSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR RECEPTACLE 48WAY 48P MOD 4 HSG |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | DIN 41612 Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 200 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-1 | ||
电气参数
| 最大额定电流 | 1.5 A | 最小供电电压 | 250VAC |
机械参数
| 尺寸 | Half | 颜色 | Gray |
| 深度 | 13.5 mm | 间距 | 2.54 mm |
| 高度 | 10.6 mm | 重量 | 0 |
| 涂层 | Without | 包装方式 | Bulk |
| 外壳颜色 | Gray | 安装类型 | Straight |
| 连接器类型 | Crimp | 接触镀层 | :- |
| 排数 | 3 | 连接器样式 | DIN 41612, Type C |
| 连接器用途 | Receptacle | 触头材料 | :- |
| 壳体材料 | Polycarbonate | 总长度 | 54.4 mm |
| 安装特性 | With | 先合后断 | No |
| 端接样式 | Crimp | 触点数 | 48 |
| 接触件端接 | Crimp Snap-In | 位数 | 48 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | AMPMODU MOD IV |
| 产品子类型 | Type C Housings | 连接类型 | Wire |
| 工具类型/特性 | No | ||
环境参数
| 温度 | No | 工作温度 | -65C to 105C |
文档与媒体
相关型号
166722-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN SOCKET CRIMP 22-26AWG GOLD Crimp connector,rcpt,tandem spring,AU Headers & Wire Housings TANDEM SPR REC.F Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU SOCKET, MTE Connector;Socket;MTE(IDC);CopperAlloy;26-22AWG;0.035to0.054in. AMPMODU 26-22 AWG Wire to Cable Crimp MTE IDC Socket Contact TE Connectivity AMPMODU Tandem Spring 系列 母 压接接线端子, 压接, 镀金镀镍触点 TANDEM SPR.REC.F
1393644-9
te connectivity / amp
Conn DIN 41612 M 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type C EUROCARD TYPE C DIN 41612 Connectors V42254B1200B320= PC612 MESSERLE V42254B1100C480=PC612 MESSERLE
167042-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece CONN SOCKET CRIMP 28-32AWG GOLD Contacts-AMPMODU Machine Applied Contacts-AMPMODU Machine Applied Product Highlights:SocketContact Type = MTE (IDC)Wire Range = 0.03-0.09² [32-28] mm [AWG]Wire Insulation Diameter = .50 - 1.02 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU TANDEM-SPRING BU
650948-5
te connectivity / amp
Conn DIN 41612 PL 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 48POS RT ANG PCB DIN 41612 Connectors Type C Pin Header 48 Position Conn DIN 41612 PL 48 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 048 EURO TYPE C PIN ST ASSY
650916-5
te connectivity / amp
Conn DIN 41612 PL 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 48POS RT ANG PCB DIN 41612 Connectors 48P DIN PCB BRDLCK 900 Conn DIN 41612 PL 48 POS 2.54mm Solder RA Thru-Hole Search Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 48 Position 2.54 mm Plug Right Angle Through Hole Eurocard Type C Connector 048 EURO TYPE C PIN BL ASSY
166722-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece CONN SOCKET CRIMP 20-24AWG GOLD Contacts-AMPMODU Machine Applied Contacts-AMPMODU Machine Applied Product Highlights:SocketContact Type = MTE (IDC)Wire Range = 0.20-0.60² [24-20] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU TANDEM SPR. REC.

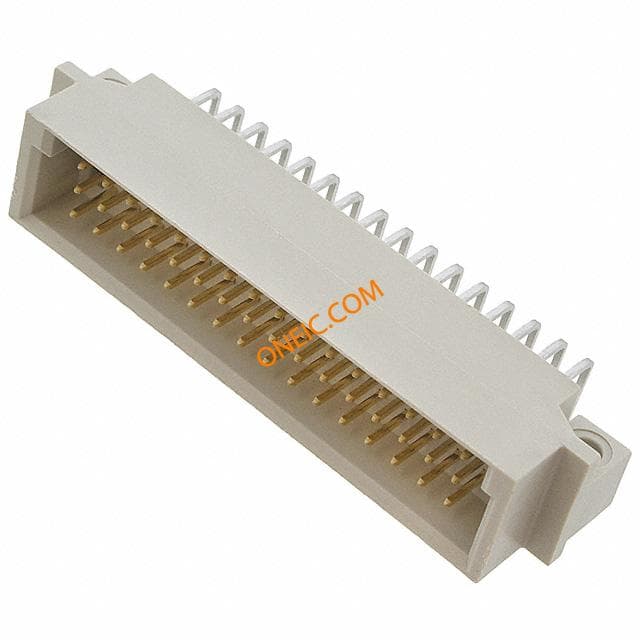

8-1393644-0
te connectivity / amp
Conn DIN 41612 M 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN EUROCARD R/A 48POS TYPE-C 2.54mm,pin,DIN 41612,solder,PCB,90°,48w DIN 41612 Connectors V42254B1200C480 PC612 MESSERLE Eurocard Type C Product Highlights:Type C ConnectorsPlugNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 CONNECTOR, PLUG, THT, R/A, 2.54MM, 48WAY PLUG,8-1393644-0 TE Connectivity Eurocard 系列 48 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插头, 焊接端接 V42254B1200C480=PC612 MESSERLE
166500-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Headers & Wire Housings TANDEM SKT 24-20 PHBZ/AU Contacts-AMPMODU Machine Applied CONN SOCKET 20-24AWG GOLD CRIMP Conn Contact SKT 1 POS Crimp ST Cable Mount Strip Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketContact Type = Tandem Spring (Crimp-Snap)Wire Range = 0.20-0.60² [24-20] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU CONTACT, PIN CRIMP, D SUB CONTACT, CRIMP, PIN, 24-20AWG, REEL Contact; female; 0.2÷0.6mm2; AMPMODU; gold plated Tandem Spring 24-20 AWG Standard Crimp Terminal Receptacle Contact TE Connectivity AMPMODU Tandem Spring 系列 母 压接触点, 压接, 镀金镀镍触点 TANDEM SPRING REC
5650916-5
te connectivity / amp
Conn DIN 41612 PIN 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 48POS RT ANG PCB DIN 41612 Connectors PLUG 48P R/A TYPE C Conn DIN 41612 PIN 48 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 48 Position 2.54 mm Plug Right Angle Through Hole Eurocard Type C Connector ASSY,PIN,EUROCARD,TYPE C/2,LEA
167041-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip CONN SOCKET CRIMP 28-32AWG GOLD Contacts-AMPMODU Machine Applied Contacts-AMPMODU Machine Applied Product Highlights:SocketContact Type = MTE (IDC)Wire Range = 0.03-0.09² [32-28] mm [AWG]Wire Insulation Diameter = .50 - 1.02 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU TANDEM-SPRING RECEPTACLE

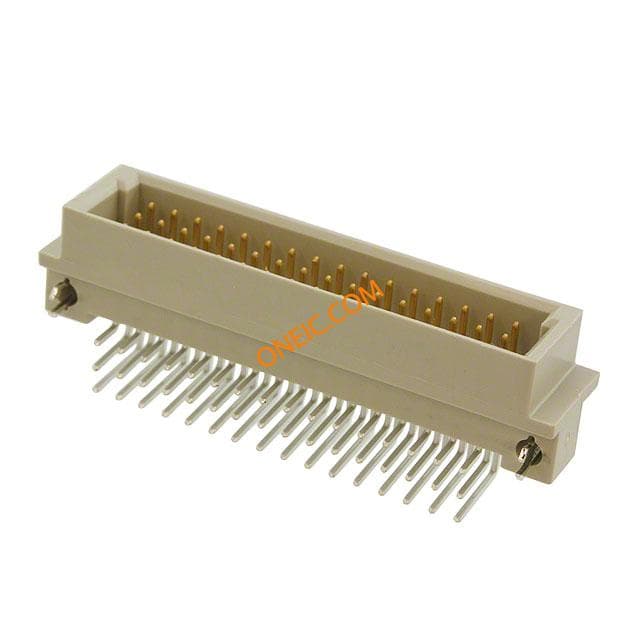

7-1393644-4
te connectivity / amp
Conn DIN 41612 M 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN PLUG 48POS R/A SOLDER T/H Conn DIN 41612 M 48 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 V42254B1200C410=PC612 MESSERLE
5536407-5
te connectivity / amp
Conn DIN 41612 M 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type C ASSY,PIN,EUROCARD,TYPE C/2 48 DIN 41612 Connectors ASSY PIN EUROCARD TYPE C/2 LEADFREE 48 Eurocard Type C Product Highlights:Type C ConnectorsPlugNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 48 Position Plug Right Angle Through Hole Eurocard Type C Connector ASSY,PIN,EUROCARD,TYPE C/2,LEAD-FREE,48
5650948-5
te connectivity / amp
Conn DIN 41612 PIN 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 48POS RT ANG PCB Eurocard DIN41612 C,plug,3row,r/a,48way DIN 41612 Connectors Type C Pin Header 48 Position Conn DIN 41612 PIN 48 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 Receptacle,Eurocard;Plug;Brass;48;Polyester;Gray;PCBMount;0.130in. 48 Position 2.54 mm 3 Row Plug Male Pins Right Angle Eurocard Type C Connector TE Connectivity Eurocard 系列 48 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插头, 焊接端接 ASSY,PIN,EUROCARD,TYPE C/2,LEA

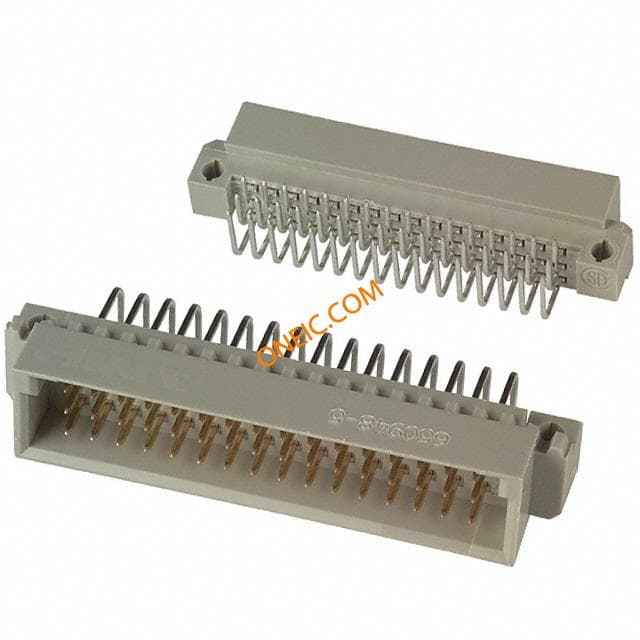

2-42935-1765
