点击放大查看

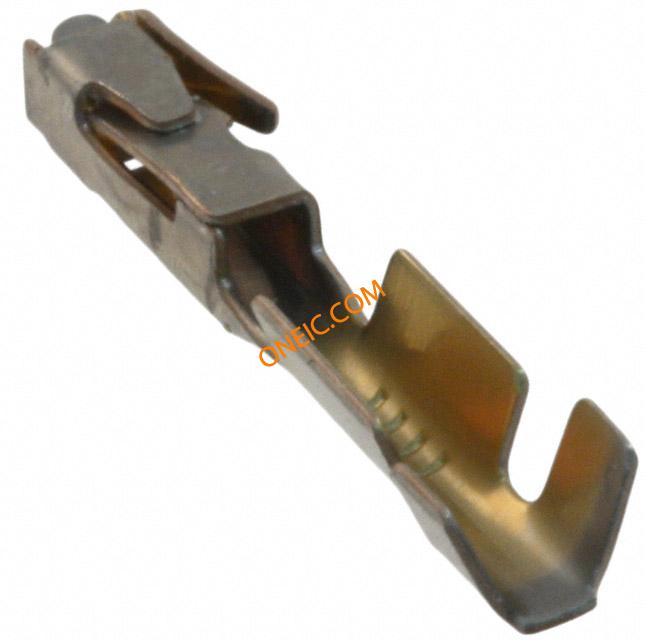

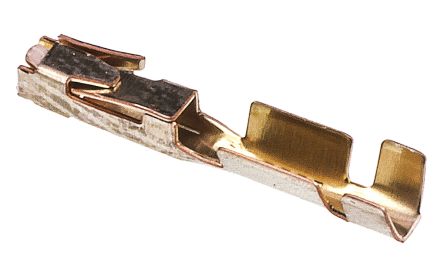

166722-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN SOCKET CRIMP 22-26AWG GOLD Crimp connector,rcpt,tandem spring,AU Headers & Wire Housings TANDEM SPR REC.F Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU SOCKET, MTE Connector;Socket;MTE(IDC);CopperAlloy;26-22AWG;0.035to0.054in. AMPMODU 26-22 AWG Wire to Cable Crimp MTE IDC Socket Contact TE Connectivity AMPMODU Tandem Spring 系列 母 压接接线端子, 压接, 镀金镀镍触点 TANDEM SPR.REC.F |
| 分类 |
商业参数
| 商标名 | AMPMODU | 其他名称 | 1667221 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 200 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHS,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 接触电阻 | 12 mohm | 最大额定电流 | 3 A |
机械参数
| 深度 | 2.48 mm | 间距 | Not Required mm |
| 重量 | 0.001 | 材料（通用） | :Copper Alloy |
| 包装方式 | Bulk | 导线线规 | 22-26 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Straight |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 总长度 | 12.7mm | 包装数量 | Loose Piece |
| 第一触头极性 | Socket (Female) | 触点数 | Not Required |
| 接触件端接 | Crimp | 绝缘直径 | 0.91 â 1.37 [0.035 â 0.054] |
| 触点镀层 | Gold(30) | 接触镀层厚度 | 31.5µin (0.80µm) |
| 线规或范围 - AWG | :26AWG | 线规或范围 - mm² | 0.12-0.40² [26-22] |
产品信息
| 类型 | Signal | 连接器性别 | SKT |
| 系列 | AMPMODU MOD II | 制造商全称 | AMP |
| 产品子类型 | Contacts | 适用产品/相关产品 | :Ampmodu |
环境参数
| 工作温度 | -65C to 105C | ||
