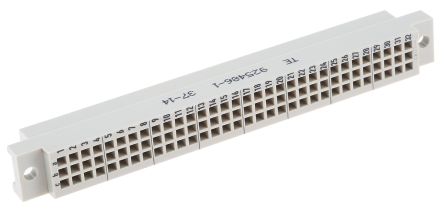

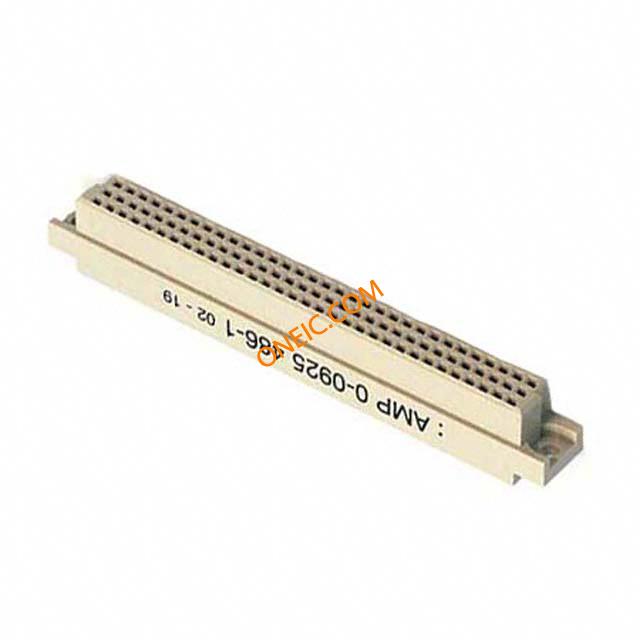

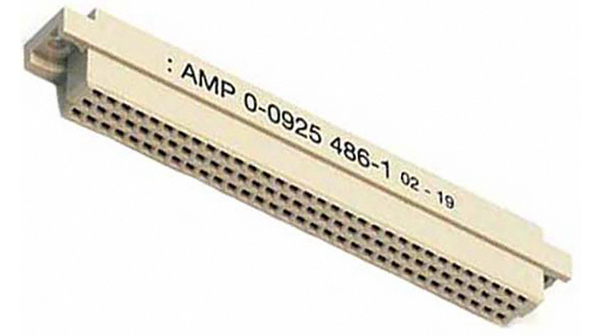

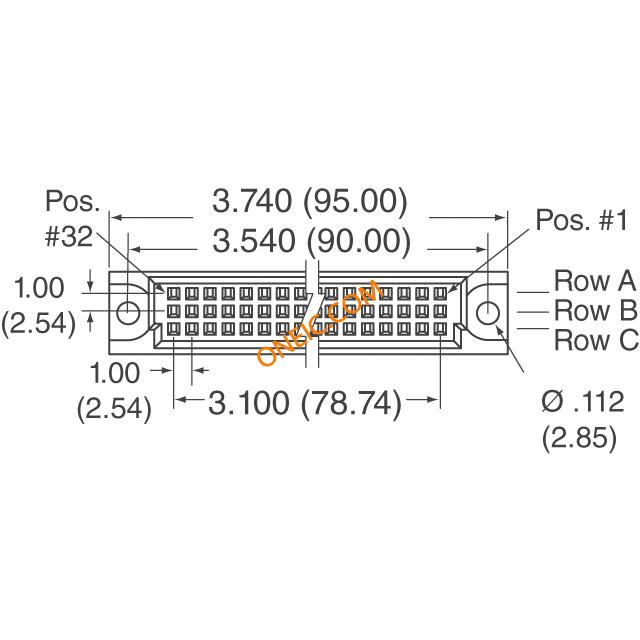

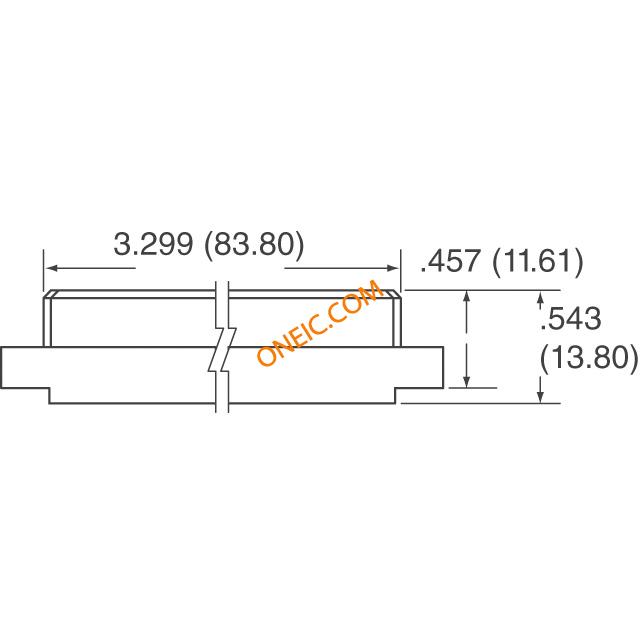

925486-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 96 POS 2.54mm Crimp ST Eurocard Type C CONN DIN RECEPT 96POS CRIMP Housing,rcpt,crimp,DIN 41612,vert,96w DIN 41612 Connectors SNAP-IN HSG 96P Conn Housing RCP 96 POS 2.54mm Crimp ST Product Highlights:Type C HousingsReceptacleNumber of Positions = 96Terminate To WireNo PCB Retention FeatureSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 SOCKET, DIN41612, HOUSING, 96WAY AMPMODUIVCrimp,Snap-InHousing;Receptacle;96positions Multipole socket C 96-p DIN 41612 3 x 32 a + b + c, 925486-1, TE Connectivity TE Connectivity 96 路 2.54mm 节距, 线对板型, 3 行 a/b/c 直向 DIN 41612 插座, 压接端接 MOD. IV SNAP-IN HSG 96 POS. |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | DIN 41612 Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | IEC60603-2(DIN41612) |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-1 |
电气参数
| 最大额定电流 | 1.5 A | ||
机械参数
| 尺寸 | Standard | 颜色 | Gray |
| 深度 | 14.3mm | 间距 | 2.54 mm |
| 宽度 | 10.6mm | 高度 | 10.6 mm |
| 长度 | 95mm | 重量 | 0.002 |
| 涂层 | Without | 包装方式 | Bulk |
| 外壳尺寸 | C | 端接方式 | :Crimp |
| 引脚间距 | :2.54mm | 外壳颜色 | Gray |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Crimp | 接触镀层 | :- |
| 排数 | 3 | 连接器样式 | DIN 41612, Type C |
| 连接器用途 | Receptacle | 触头材料 | :- |
| 壳体材料 | Polycarbonate | 总长度 | 95 mm |
| 安装特性 | With | 主要材料 | InterconnectSystem |
| 先合后断 | No | 插针孔直径 | 0.1" |
| 端接样式 | Crimp | 触点数 | 96 |
| 接触件端接 | Crimp Snap-In | 位数 | 96 |
产品信息
| 备注 | Reference crimp-snap-in contact series 166500 and 166722. | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Eurocard |
| 制造商全称 | AMPMODUIV | 产品子类型 | Type C Housings |
| 连接类型 | Wire | 工具类型/特性 | No |
| 适用产品/相关产品 | Snap-In Receptacle | ||
环境参数
| 温度 | No | 工作温度 | -55C to 125C |
文档与媒体
相关型号
925486-1
te connectivity / amp
Conn Housing RCP 96 POS 2.54mm Crimp ST Eurocard Type C CONN DIN RECEPT 96POS CRIMP Housing,rcpt,crimp,DIN 41612,vert,96w DIN 41612 Connectors SNAP-IN HSG 96P Conn Housing RCP 96 POS 2.54mm Crimp ST Product Highlights:Type C HousingsReceptacleNumber of Positions = 96Terminate To WireNo PCB Retention FeatureSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 SOCKET, DIN41612, HOUSING, 96WAY AMPMODUIVCrimp,Snap-InHousing;Receptacle;96positions Multipole socket C 96-p DIN 41612 3 x 32 a + b + c, 925486-1, TE Connectivity TE Connectivity 96 路 2.54mm 节距, 线对板型, 3 行 a/b/c 直向 DIN 41612 插座, 压接端接 MOD. IV SNAP-IN HSG 96 POS.
