9-1393644-1

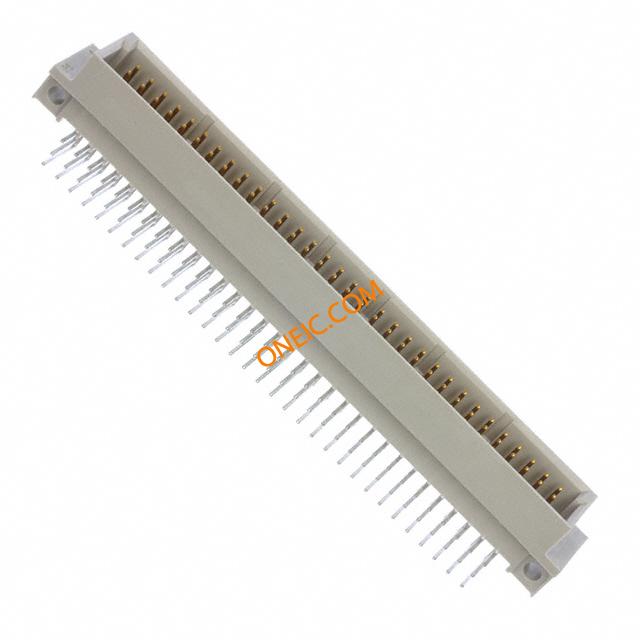

点击放大查看

9-1393644-1

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN PLUG 96POS R/A SOLDER T/H 2.54mm,pin,DIN 41612,solder,PCB,90°,96w DIN 41612 Connectors PLUG 96P R/A TYPE C Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 CONNECTOR, PLUG, THT, R/A, 2.54MM, 96WAY PLUG,9-1393644-1 Multipole plug, C 90° 96-p DIN 41612 2 3 x 32 a + b + c, 9-1393644-1, TE Connectivity TE Connectivity Eurocard 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插头, 焊接端接 V42254B1200C960=PC612 MESSERLE
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量400

合规参数

RoHSLead free / RoHS Compliant海关税号85366930
无铅定义Wave solder capable to 240°CRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V ac接触电阻15mΩ
最大额定电流1.5 A

机械参数

尺寸Standard颜色Gray
间距2.54 mm重量0.02
涂层Without包装方式Bulk
端接方式Solder触点尺寸0.60 [.024] Sq.
触头类型Solder Post尾部长度3 mm
安装类型Through Hole连接器类型Plug, Male Pins
接触镀层Gold or Gold-Palladium排数3
触头材料Copper Alloy壳体材料Thermoplastic Glass Reinforced
安装特性With先合后断No
端接样式Solder Pin触点数96
接触件端接:Through Hole Right Angle位数96
绝缘材料 - 材质Polybutylene Terephthalate (PBT), Polyester, Glass Filled端子柱长度3.00 [0.118]

产品信息

类型DIN 41612等级II
样式C连接器性别Plug
系列:Eurocard导向方式Without
产品子类型Type C Connectors连接类型Printed Circuit Board
工具类型/特性No加载位置数All

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C
