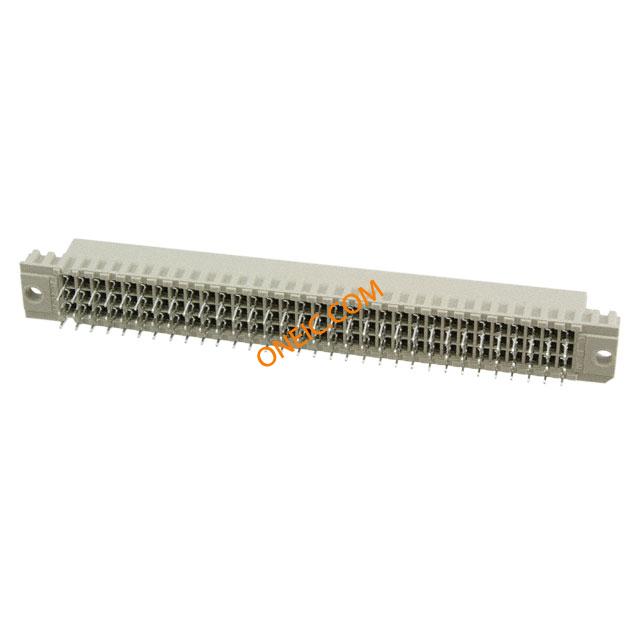

535032-5

点击放大查看

535032-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 F 96 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type C CONN RECEPT VERT 96 POS DIN PCB DIN 41612 Connectors EUROCARD RECPT 96P Conn DIN 41612 F 96 POS 2.54mm Press Fit ST Thru-Hole Product Highlights:PreloadedContact Gender = ReceptacleHousing Gender = PlugType = Type C2.54 mm CenterlineSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 096EUROTYPECRECEPTAPASSY 96 Position 2.54 mm Receptacle Vertical Through Hole Eurocard Type C Connector
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

其他名称5350325产品类别DIN 41612 Connectors
标准包装数量Bulk工厂包装数量150

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS/Not ELV Compliant材料阻燃等级UL 94V-0

电气参数

最大额定电流1.5 A

机械参数

尺寸Standard颜色Gray
深度10.59 mm间距2.54 mm
高度11.51 mm涂层Without
包装方式Bulk端接方式Press Fit
触点尺寸0.30 x 0.61 [.012 x .024]触头类型Compliant Post
外壳颜色Gray尾部长度4.83 mm
安装类型Through Hole连接器类型Receptacle, Female Sockets
接触镀层Gold Over Palladium Nickel安装样式Through Hole
排数3电路板厚度1.57 [0.062]
触头材料Phosphor Bronze壳体材料Polyester
总长度93.98 mm安装特性With
包装数量150先合后断No
端接样式Press Fit触点数96
位数96绝缘材料 - 材质Polyester, Glass Filled
端子柱长度4.83 [0.190]

产品信息

类型DIN 41612等级II
样式C连接器性别Receptacle
系列535032已删除Compliant
产品子类型Type C Connectors总线连接FUTUREBUS, MULTIBUS (II), NUBUS, VMEbus, VXIBus
连接类型Printed Circuit Board工具类型/特性Yes
加载位置数All

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C

文档与媒体

在线文档
535032-9?RQPN=535032-9
在线文档
535032-5?RQPN=535032-5
