650909-5

点击放大查看

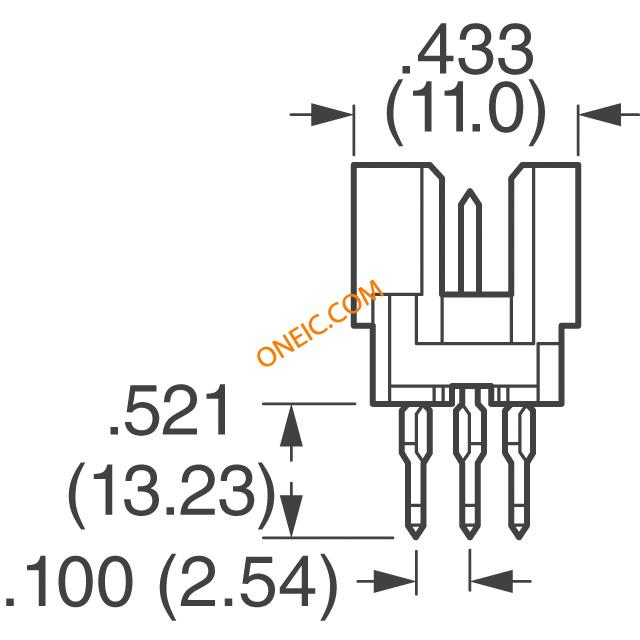

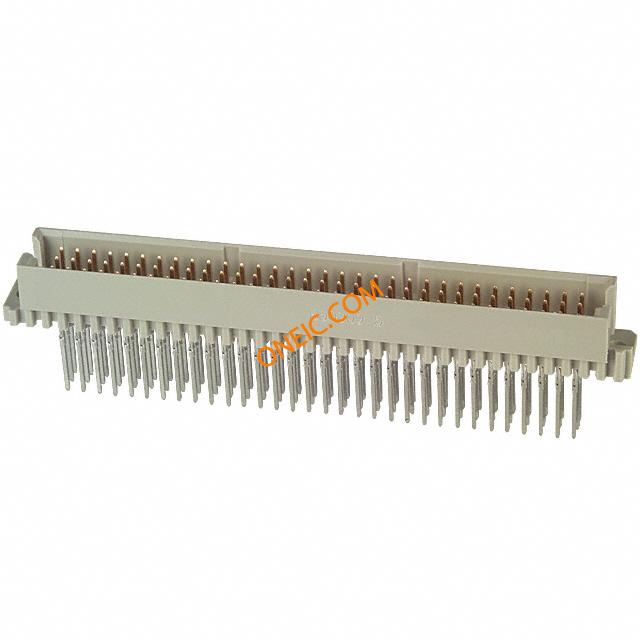

650909-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 PIN 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 96POS VERT PCB DIN 41612 Connectors Type R Pin Header 96 P w/ Action Pin Conn DIN 41612 PIN 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:PlugNumber of Positions = 96PCB Mount Angle = VerticalYes PCB Retention FeatureACTION (Compliant) Press-fit PostsSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 096 EURO TYPE R PIN AP ASSY
分类
连接器解决方案背板连接器DIN 41612

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量150

合规参数

RoHSNot applicable / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS/Not ELV Compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612供电电压250
接触电阻15 mohm最大额定电流1.5
最小供电电压250VAC

机械参数

颜色Gray深度11.1 mm
间距2.54 mm高度11.51 mm
涂层Without包装方式Bulk
屏蔽否厚度2.36 [0.093]
端接方式Solder触头类型Compliant Post
外壳颜色Gray尾部长度13.23 mm
安装类型Through Hole端子尺寸.64 x .64 mm [ .025 x .025 in ]
连接器类型Plug, Male Pins接触镀层Gold Over Nickel
触点时序否安装样式Through Hole
排数3插入件材料磷青铜
触头材料Phosphor Bronze壳体材料Polyester
总长度95 mm安装特性作用/符合标准的尾
面板安装类型通孔 - 焊接尺寸/外形II
先合后断No端接样式Solder Pin
配接方向Without触点数96
位数96触头长度-柱13.23 mm [ .516 in ]
绝缘材料 - 材质Polyester, Glass Filled安装孔直径带有
接触件表面处理 - 配合锡铅端子柱长度13.23 [0.521]
接触镀层厚度2.54 – 5.08 µm [ 100 – 200 µin ]

产品信息

类型DIN 41612等级II
样式R连接器性别Pin
系列650909导向方式Without
产品子类型Plug列数32
加载位置数All

环境参数

级别、等级2工作温度-55°C ~ 125°C
封装热阻2.36 mm [ .093 in ]
