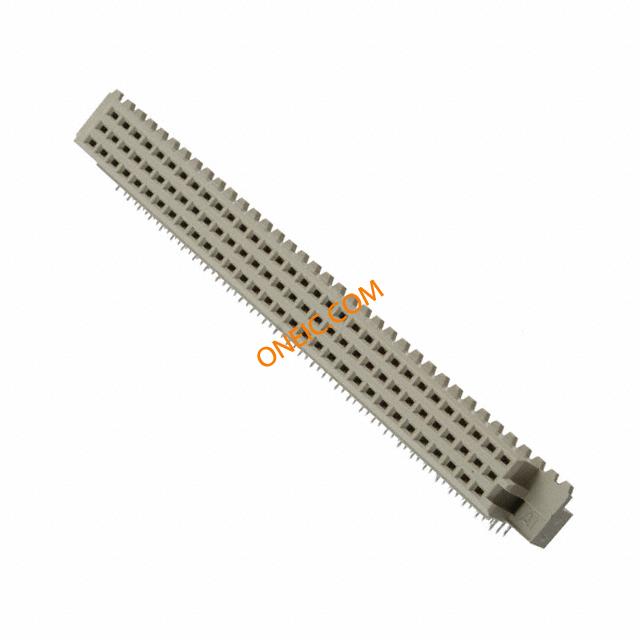

5148292-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn DIN 41612 RCP 96 POS 2.54mm Press Fit RA Thru-Hole Eurocard Type R CONN RCPT 96POS RT ANG GRAY Eurocard R Recptacle assembly 32+32+32P DIN 41612 Connectors R REC R/A ABCX32C L2 PFIT Conn DIN 41612 RCP 96 POS 2.54mm Press Fit RA Thru-Hole Product Highlights:ReceptacleNumber of Positions = 96PCB Mount Angle = Right AngleYes PCB Retention FeatureACTION (Compliant) Press-fit PostsSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 ASSY,RECEPTACLE,EUROCARD,TYPER,LEAD-FRE ASSY,RECEPTACLE,EUROCARD,TYPE |
| 分类 |
商业参数
| 产品类别 | DIN 41612 Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 140 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接口 | Eurocard/DIN 41612 | ||
机械参数
| 颜色 | Gray | 间距 | 2.54 mm |
| 涂层 | Without | 包装方式 | Bulk |
| 屏蔽 | 否 | 厚度 | 1.57 [0.062] |
| 端接方式 | Press Fit | 触头类型 | Compliant Post |
| 固定类型 | 否 | 引脚直径 | II |
| 安装类型 | Through Hole | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Tin-Lead | 安装样式 | 带有 |
| 排数 | 3 | 端子样式 | .64 x .64 mm [ .025 x .025 in ] |
| 高度（英寸） | 10.49 | 插入件材料 | 铜合金 |
| 触头材料 | Copper Alloy | 壳体材料 | Polymer |
| 安装特性 | 作用/符合标准的尾 | 面板安装类型 | 通孔 |
| 主要材料 | Eurocard | 先合后断 | No |
| 连接器间距 | 2.54 | 端接样式 | 插座 |
| 配接方向 | Without | 触点数 | 96 |
| 接触件尾部长度 | 4.57 | 位数 | 96 |
| 绝缘材料 - 材质 | Polymer Thermoplastic, Glass Filled | 安装孔直径 | 不带 |
| 端子柱长度 | 2.92 [0.115] | 第一连接器安装特征 | 否 |
产品信息
| 类型 | DIN 41612 | 等级 | II |
| 样式 | R | 连接器性别 | Female |
| 系列 | 5148292 | 导向方式 | Without |
| 产品子类型 | Receptacle | 加载位置数 | All |
环境参数
| 级别、等级 | 2 | 工作温度 | -55°C ~ 125°C |
| 封装热阻 | 1.57 mm [ .062 in ] | ||
文档与媒体
相关型号
