5650470-5

点击放大查看

5650470-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 PIN 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 96POS VERT PCB Plug 96 way pin DIN41612 Eurocard DIN 41612 Connectors PLUG 96P VERT TYPE R Conn DIN 41612 PIN 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:PlugNumber of Positions = 96PCB Mount Angle = VerticalNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR, PLUG, 96WAY EUROCARDTypeRVerticalPlug,96Position,SolderPost,DINLevelII,Gray CONN DIN ASSY,PIN,EUROCARD,TYPE R,LEAD-
分类
连接器解决方案背板连接器DIN 41612

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant标准DIN41612,IEC603-2
海关税号85366930无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
认证机构CSA,ULRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V ac接触电阻15 mΩ, 50 mV

机械参数

颜色Gray深度11.1 mm
间距2.54 mm高度11.51 mm
重量0.009涂层Without
包装方式Bulk外壳尺寸R
端接方式Solder触头类型Solder Post
引脚长度（针脚）0.18"外壳颜色Gray
尾部长度4.57 mm安装类型Through Hole
行程角度Straight连接器类型Plug, Male Pins
接触镀层DIN 41612 Class 2安装样式Through Hole
排数3触头材料Copper Alloy
壳体材料Polymer总长度95 mm
主要材料Eurocard端接排数a/b/c
先合后断No插针孔直径0.1"
端接样式Solder Pin配接方向Without
触点数96接触件端接:Through Hole Vertical
位数96绝缘材料 - 材质Polymer Thermoplastic, Glass Filled
安装孔直径0.11"端子柱长度4.57 [0.180]

产品信息

类型DIN 41612等级II
样式R连接器性别Male
系列5650470等级代码C2
导向方式Without制造商全称Eurocard
产品子类型Plug加载位置数All

环境参数

级别、等级2工作温度-55°C ~ 125°C

文档与媒体

5650470-5?RQPN=5650470-5
TE.Connect?C=1&PN=5650470-5&M=BYPN&LG=1&I=13

相关型号

535090-5

535090-5

te connectivity / amp

Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 96POS VERT PCB DIN 41612 Connectors Type C Receptacle 96 Position Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 2.54 mm 96 Position Receptacle Through Hole Solder Type C Connector

¥16.7760
详情
1-215912-4

1-215912-4

te connectivity / amp

Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 96POS VERT PCB DIN 41612 Connectors DIN RECPT 96P VERT TYPE C Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit Board

¥51.6240
详情
650462-5

650462-5

te connectivity / amp

Conn DIN 41612 RCP 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN DIN RECEPT 96POS RT ANG PCB DIN 41612 Connectors Type R Receptacle 96 Position Conn DIN 41612 RCP 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:Housing Gender = PlugContact Gender = Receptacle96 PositionsPCB Mount Angle = Right AngleWithout PCB Mount RetentionSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 096 EURO TYPE R RECEPT ASSY

¥32.9760
详情
5650462-5

5650462-5

te connectivity / amp

Conn DIN 41612 RCP 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN DIN RECEPT 96POS RT ANG PCB DIN 41612 Connectors Type R Receptacle 96 Position Conn DIN 41612 RCP 96 POS 2.54mm Solder RA Thru-Hole Search Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR RECEPTACLE 96WAY

¥43.1057
详情
650895-4

650895-4

te connectivity / amp

Conn DIN 41612 RCP 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN DIN RECEPT 96POS RT ANG PCB DIN 41612 Connectors 96P EURO RECP TYPE R 140 Conn DIN 41612 RCP 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:ReceptacleNumber of Positions = 96PCB Mount Angle = Right AngleYes PCB Retention FeatureBoardlock(s)Search Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 96 Position 2.54 mm Socket Right Angle Through Hole Eurocard Type R Connector

¥23.8320
详情
1-148057-5

1-148057-5

te connectivity / amp

Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN RCPT EUROCRD 96POS 13MM PCB DIN 41612 Connectors DIN 96 POS TYPE C Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 CONECTOR,RECEPTACLE,EUROCARDTYPEC,96POS,ROWSA,B,CLOADED 096 EURO TYP C RECP 13MM ASSY

¥54.3600
详情

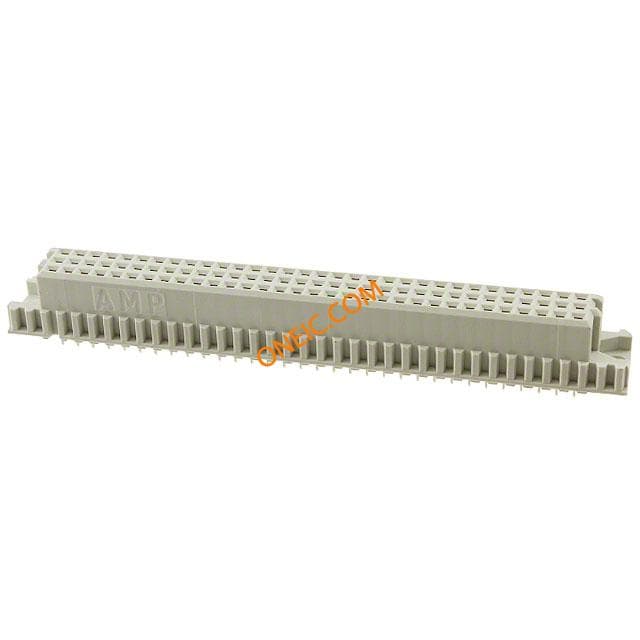

535089-5

535089-5

te connectivity / amp

Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN RECEPT VERT 96 POS DIN PCB DIN 41612 Connectors Type C Receptacle 96 Position Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 Multipole socket C 96-p DIN 41612 2 3 x 32 a + b + c, 535089-5, TE Connectivity 096 EURO TYPE C RECEPT ST ASSY

¥15.2640
详情

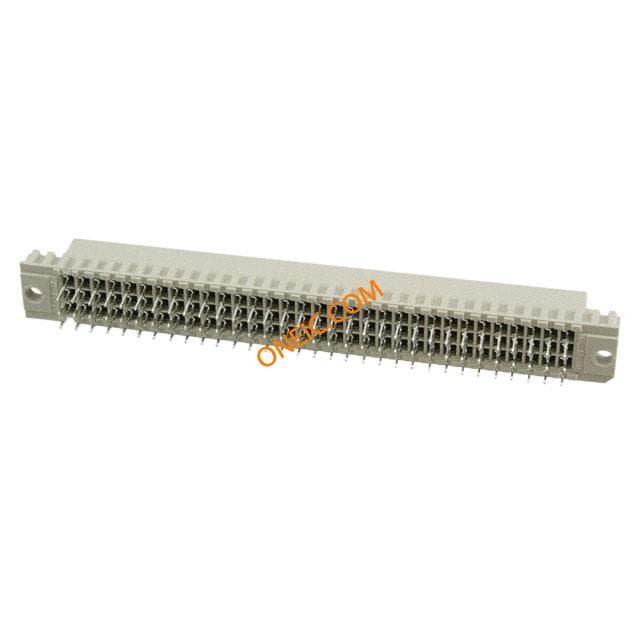

535032-5

535032-5

te connectivity / amp

Conn DIN 41612 F 96 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type C CONN RECEPT VERT 96 POS DIN PCB DIN 41612 Connectors EUROCARD RECPT 96P Conn DIN 41612 F 96 POS 2.54mm Press Fit ST Thru-Hole Product Highlights:PreloadedContact Gender = ReceptacleHousing Gender = PlugType = Type C2.54 mm CenterlineSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 096EUROTYPECRECEPTAPASSY 96 Position 2.54 mm Receptacle Vertical Through Hole Eurocard Type C Connector

¥15.9120
详情
5535043-5

5535043-5

te connectivity / amp

Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors Type C Receptacle 96 Position Eurocard Type C CONN DIN RECEPT 96POS VERT PCB Eurocard DIN41612 C,skt,3row,vert,96way Eurocard Receptacle; 96; Phosphor Bronze; Polyester; 0.18 in.; Vertical; Gray Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR RECEPTACLE 96WAY EurocardReceptacle;96;PhosphorBronze;Polyester;0.18in.;Vertical;Gray 2.54 mm 96 Position Receptacle Through Hole Eurocard Type C Connector TE Connectivity Eurocard 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接

¥16.8480
详情
5535043-4

5535043-4

te connectivity / amp

Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 96POS VERT PCB Eurocard DIN41612 C,rcp,3row,vert,96way DIN 41612 Connectors RECPT 96P VERT TYPE C Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 Type C 96 Position 2.54 mm Receptacle Through Hole Eurocard Connector TE Connectivity Eurocard 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接 ASSY,RECEPTACLE,EUROCARD,TYPE

¥16.9200
详情
5535090-4

5535090-4

te connectivity / amp

Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 96POS VERT PCB Eurocard DIN41612 C,skt,3row,vert,96way DIN 41612 Connectors RECPT 96P VERT TYPE C Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR RECEPTACLE 96WAY CONECTOR,RECEPTACLE,EUROCARDTYPEC,96POS,ROWSA,B,CLOADED Type C 96 Position 2.54 mm Receptacle Through Hole Eurocard Connector TE Connectivity Eurocard 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接

¥18.1200
详情
5650461-5

5650461-5

te connectivity / amp

Conn DIN 41612 SKT 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN DIN RECEPT 96POS RT ANG PCB 2.54mm,pin,DIN 41612,solder,PCB,90°,96w DIN 41612 Connectors Type R Receptacle 96 Position Conn DIN 41612 SKT 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:ReceptacleNumber of Positions = 96PCB Mount Angle = Right AngleNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 SOCKET, DIN41612, R/A, R, 96WAY EurocardReceptacle;96;PhosphorBronze;Polyester;0.11in.;RightAngle;II Type R 96 Position 2.54mm Receptacle Right Angle Through Hole Eurocard Connector TE Connectivity Eurocard 系列 96 路 2.54mm 节距, R型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插座, 焊接端接

¥18.1200
详情
5535090-5

5535090-5

te connectivity / amp

Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 96POS VERT PCB Eurocard C Recptacle assembly 32+32+32P DIN 41612 Connectors Type C Receptacle 96 Position Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 EurocardReceptacle;96;PhosphorBronze;Polyester;0.13in.;Vertical;Gray 96 Position 2.54 mm Receptacle Through Hole Type C Eurocard Connector ASSEMBLY,RECEPTACLE,EUROCARD,T

¥18.1200
详情
5650963-4

5650963-4

te connectivity / amp

Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 96POS VERT PCB Eurocard C Recptacle assembly 32+32+32P DIN 41612 Connectors C REC VRT ABCX32C L2 BDLK Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 CONNECTOR, RECEPTACLE, 96POS ASSY,RECEPTACLE,EUROCARD,TYPEC,L-FREE,9 96 Position 3 Row 2.54 mm Vertical Eurocard Type C Cardedge Socket Connector

¥20.7360
详情

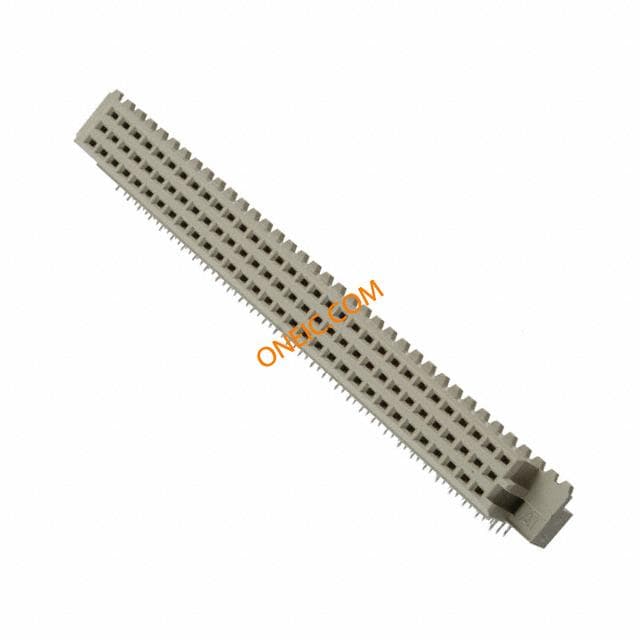

5148292-5
