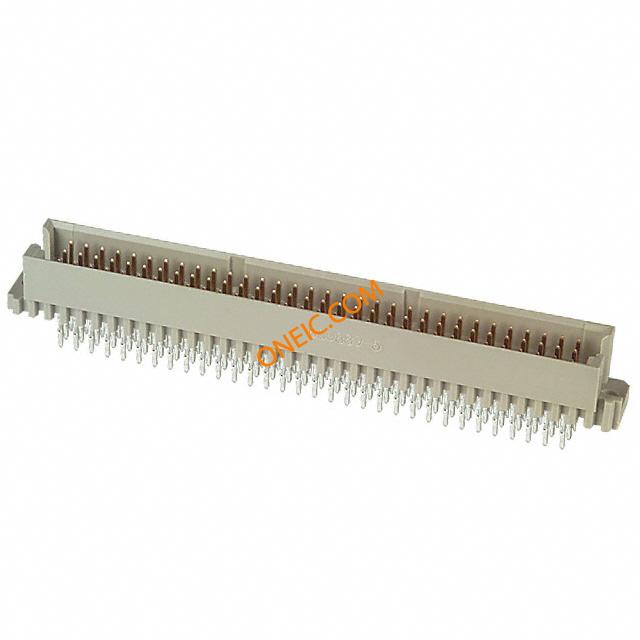

650889-5

点击放大查看

650889-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 PIN 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 96POS VERT PCB 2.54mm,pin,DIN41612,vert,PCB,96w,grey DIN 41612 Connectors Type R Pin Header 96 P w/ Action Pin Conn DIN 41612 PIN 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:PlugNumber of Positions = 96PCB Mount Angle = VerticalYes PCB Retention FeatureACTION (Compliant) Press-fit PostsSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 PLUG, DIN41612, STRAIGHT, R, 96WAY CONECTOR,PLUG,EUROCARDTYPEC,96POS,VERTICAL,PRESS-FITPOSTS 2.54 mm 96 Position Plug Vertical Through Hole Eurocard Type R Connector TE Connectivity Eurocard 系列 96 路 2.54mm 节距, R型 C2等级, 3 行 a/b/c 直向 DIN 41612 插头, 焊接端接 096 EURO TYPE R PIN AP ASSY
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSContains lead / RoHS non-compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS/Not ELV Compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V ac供电电压:DIN 41652 Level 2
接触电阻15mΩ最大额定电流:1A
绝缘电阻:1000Gohm最小供电电压250VAC

机械参数

颜色Gray深度11.1 mm
间距2.54 mm高度11.51 mm
重量0.001涂层Without
材料（通用）:Glass Filled Polyester包装方式Bulk
厚度2.36 [0.093]外壳尺寸R
端接方式Solder触头类型Compliant Post
引脚间距:2.54mm柱间距:2.54mm
外壳颜色Gray安装类型Through Hole
行程角度Straight连接器类型Plug, Male Pins
接触镀层Gold Over Nickel安装样式Through Hole
排数3触头材料Phosphor Bronze
壳体材料Polyester总长度95 mm
主要材料Eurocard先合后断No
端接样式Solder Pin连接器颜色:Grey
配接方向Without触点数96
接触件端接:Solder位数96
绝缘材料 - 材质Polyester, Glass Filled端子柱长度6.35 [0.250]
第一连接器安装类型:Vertical

产品信息

类型DIN 41612等级II
样式R连接器性别Male
系列650889CAD图纸3D CAD Model
导向方式Without制造商全称Eurocard,TypeR
产品子类型Plug加载位置数All

环境参数

级别、等级2插拔次数:400
工作温度-55°C ~ 125°C
