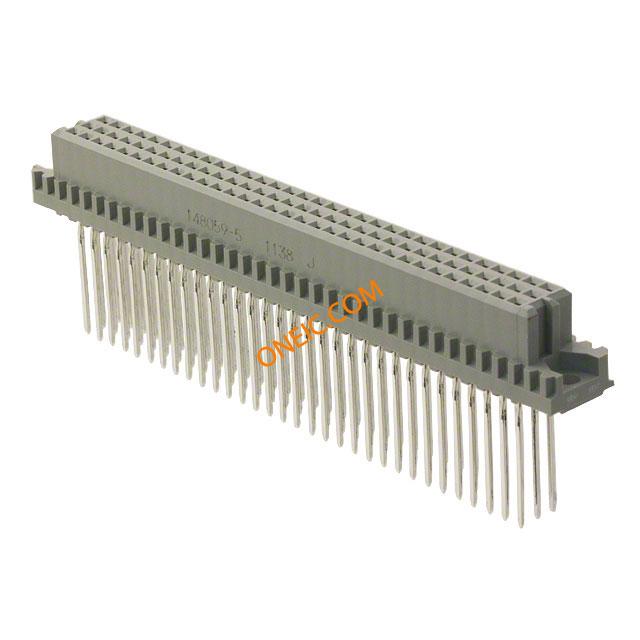

148059-5

点击放大查看

148059-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 96POS VERT PCB DIN 41612 Connectors DIN RECPT 96P VERT TYPE C 17MM ASSY Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 96 Position 2.54 mm Receptacle Solder Through Hole Type C Eurocard Connector 096 EURO TYP C RECP 17MM ASSY
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量150

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS/Not ELV Compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612

机械参数

尺寸Standard颜色Gray
间距2.54 mm涂层Without
包装方式Bulk端接方式Solder
触点尺寸0.64 [.025] Sq.触头类型Compliant Post
安装类型Through Hole连接器类型Receptacle, Female Sockets
接触镀层Gold Over Nickel安装样式带有
排数3电路板厚度1.57 [0.062]
高度（英寸）28.51插入件材料磷青铜
触头材料Phosphor Bronze壳体材料Polyester
安装特性With面板安装类型通孔 - 免焊连接
尺寸/外形标准先合后断No
连接器间距2.54端接样式插座
触点数96接触件尾部长度17
横截面形状.64 x .64 mm [ .025 x .025 in ]位数96
触头长度-柱信号（数据）绝缘材料 - 材质Polyester, Glass Filled
安装孔直径带有接触件表面处理 - 配合锡铅
端子柱长度17.00 [0.669]接触镀层厚度5.08

产品信息

备注Seating tool required.类型DIN 41612
等级II样式C
连接器性别Receptacle系列148059
产品子类型Type C Connectors总线连接FUTUREBUS, MULTIBUS (II), NUBUS, VMEbus, VXIBus
连接类型Printed Circuit Board列数18
工具类型/特性Yes加载位置数All

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C封装热阻1.57 mm [ .062 in ]
