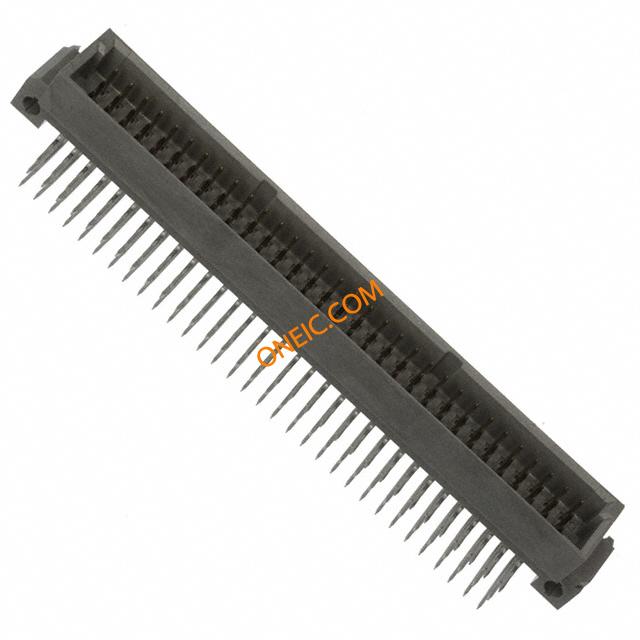

5148116-5

点击放大查看

5148116-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN PLUG RTANG 96 POS .100 DIN DIN 41612 Connectors PLUG 96P R/A TYPE C Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:With ContactsContact Gender = PinHousing Gender = ReceptacleType = Type C2.54 mm CenterlineSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR, PLUG, 96WAY ASSY,PIN,EUROCARD,TYPE C,LEAD-FREE,96 PO
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

其他名称51481165产品类别DIN 41612 Connectors
标准包装数量Bulk工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85366930
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

最小供电电压250VAC

机械参数

尺寸Standard颜色Gray
深度17.73 mm间距2.54 mm
高度11.1 mm重量0
涂层Without包装方式Bulk
端接方式Solder触点尺寸0.64 [.025] Sq.
触头类型Solder Post外壳颜色Gray
安装类型Through Hole连接器类型Plug, Male Pins
接触镀层Tin安装样式Through Hole
排数3触头材料Copper Alloy
壳体材料Polymer总长度93.98 mm
安装特性With先合后断No
端接样式Solder Pin触点数96
接触件端接:Through Hole Right Angle位数96
绝缘材料 - 材质Polymer Thermoplastic, Glass Filled端子柱长度4.57 [0.180]

产品信息

类型DIN 41612等级II
样式C连接器性别Plug
系列5148116产品特性:Type C
产品子类型Type C Connectors总线连接FUTUREBUS, MULTIBUS (II), NUBUS, VMEbus, VXIBus
连接类型Printed Circuit Board工具类型/特性No
加载位置数All

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C
