5148059-5

点击放大查看

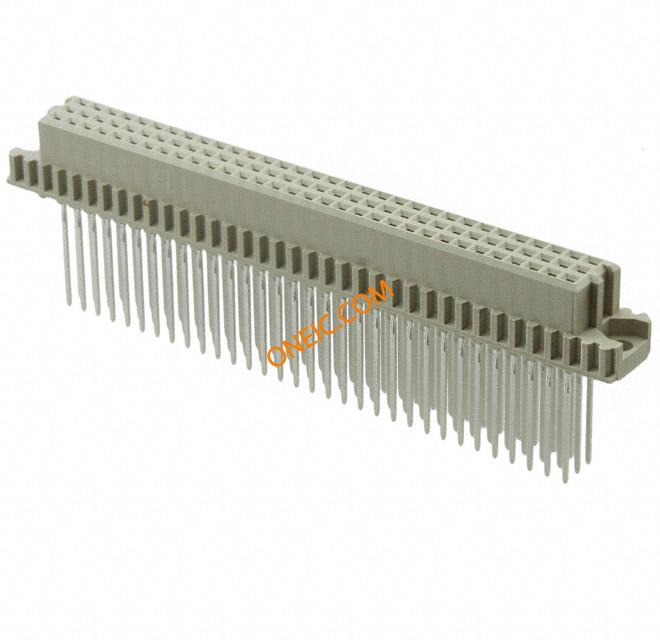

5148059-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 96 POS 2.54mm Press Fit ST Thru-Hole DIN 41612 Connectors DIN RECPT 96P VERT TYPE C 17MM ASSY Eurocard Type C CONN DIN RECEPT 96POS VERT PCB Eurocard Type C Product Highlights:PreloadedContact Gender = ReceptacleHousing Gender = PlugType = Type C2.54 mm CenterlineSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 CONN DIN ASSY,RECEPTACLE,EUROCARD,TYPE C,LEAD-FRE
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

标准包装规格30产品类别DIN 41612 Connectors
标准包装数量Bulk工厂包装数量150

合规参数

RoHSRoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612

机械参数

尺寸Standard颜色Gray
间距2.54 mm涂层Without
包装方式Bulk屏蔽否
端接方式Press Fit触点尺寸0.64 [.025] Sq.
触头类型Compliant Post固定类型否
引脚直径II安装类型Through Hole
连接器类型Receptacle, Female Sockets接触镀层Tin
安装样式带有排数3
端子样式.64 x .64 mm [ .025 x .025 in ]电路板厚度1.57 [0.062]
高度（英寸）11.51插入件材料铜合金
触头材料Copper Alloy壳体材料Polymer
安装特性With面板安装类型通孔 - 免焊连接
尺寸/外形标准先合后断No
连接器间距2.54端接样式插座
触点数96接触件尾部长度13
位数96触头长度-柱信号（数据）
绝缘材料 - 材质Polymer Thermoplastic, Glass Filled安装孔直径带有
典型触点布局ACTION PIN Post端子柱长度17.00 [0.669]
第一连接器安装特征否

产品信息

备注Seating tool required.类型DIN 41612
等级II样式C
连接器性别Receptacle系列5148059
产品子类型Type C Connectors总线连接FUTUREBUS, MULTIBUS (II), NUBUS, VMEbus, VXIBus
连接类型Printed Circuit Board工具类型/特性Yes
加载位置数All

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C封装热阻1.57 mm [ .062 in ]
