535090-5

点击放大查看

535090-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 96POS VERT PCB DIN 41612 Connectors Type C Receptacle 96 Position Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 2.54 mm 96 Position Receptacle Through Hole Solder Type C Connector
分类
连接器解决方案背板连接器DIN 41612

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量150

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Wave solder capable to 240°C
RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant材料阻燃等级UL 94V-0

电气参数

接触电阻15 mohm最小供电电压250VAC

机械参数

尺寸Standard颜色Gray
深度10.59 mm间距2.54 mm
高度11.51 mm涂层Without
包装方式Bulk端接方式Solder
触点尺寸0.30 x 0.61 [.012 x .024]触头类型Solder Post
外壳颜色Gray尾部长度3.3 mm
安装类型Through Hole连接器类型Receptacle, Female Sockets
接触镀层Gold Over Nickel安装样式Through Hole
排数3触头材料Phosphor Bronze
壳体材料Polyester总长度94 mm
安装特性With先合后断No
端接样式Solder Pin触点数96
位数96绝缘材料 - 材质Polyester, Glass Filled
端子柱长度3.30 [0.130]

产品信息

备注Contact Finish: DIN 41612 Class 2 In Contact Area.Tin-Lead On Posts.类型DIN 41612
等级II样式C
连接器性别Receptacle系列535090
产品子类型Type C Connectors总线连接FUTUREBUS, MULTIBUS (II), NUBUS, VMEbus, VXIBus
连接类型Printed Circuit Board工具类型/特性No
加载位置数All

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C

文档与媒体

535090-5?RQPN=535090-5

相关型号

5650470-5

5650470-5

te connectivity / amp

Conn DIN 41612 PIN 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 96POS VERT PCB Plug 96 way pin DIN41612 Eurocard DIN 41612 Connectors PLUG 96P VERT TYPE R Conn DIN 41612 PIN 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:PlugNumber of Positions = 96PCB Mount Angle = VerticalNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR, PLUG, 96WAY EUROCARDTypeRVerticalPlug,96Position,SolderPost,DINLevelII,Gray CONN DIN ASSY,PIN,EUROCARD,TYPE R,LEAD-

¥18.7920
详情
536010-5

536010-5

te connectivity / amp

Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 96POS RT ANG PCB DIN 41612 Connectors EUROCARD RA PLUG 900 Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612

¥20.8080
详情
5650908-5

5650908-5

te connectivity / amp

Conn DIN 41612 PIN 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 96POS VERT PCB 2.54mm,pin,DIN41612,solder,vert,PCB,96w DIN 41612 Connectors PLUG 96P VERT TYPE R Conn DIN 41612 PIN 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:PlugNumber of Positions = 96PCB Mount Angle = VerticalNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 PLUG, DIN41612, STRAIGHT, R, 96WAY Plug;Eurocard;Brass;96;Polyester;Gray;PCBMount;0.130in. Type R 96 Position 2.54 mm Plug Vertical Through Hole Eurocard Connector TE Connectivity Eurocard 系列 96 路 2.54mm 节距, R型 C2等级, 3 行 a/b/c 直向 DIN 41612 插头, 焊接端接 ASSY,PIN,EUROCARD,TYPE R,LEAD-

¥18.1200
详情

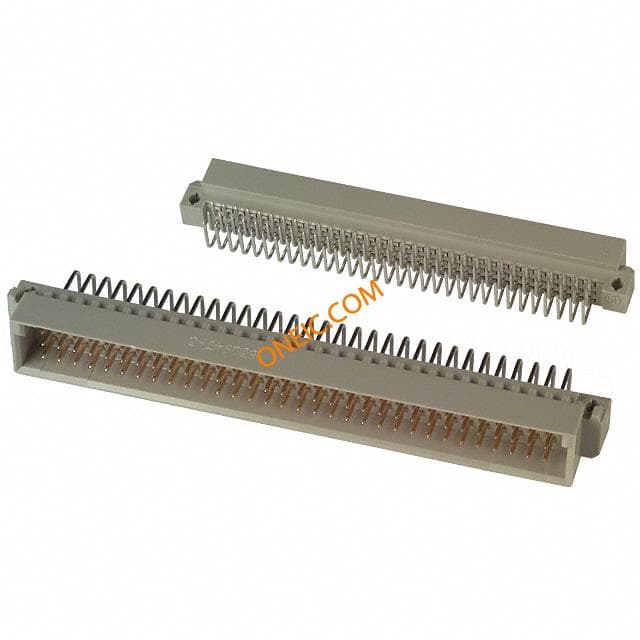

650947-5

650947-5

te connectivity / amp

Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 96POS RT ANG PCB Eurocard DIN41612 C,3row,r/a,96 pin DIN 41612 Connectors 96P RT ANG PCB CON Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 Receptacle,Eurocard;Plug;Brass;96;Polyester;Gray;PCBMount;0.130in. CONN DIN TE Connectivity Eurocard 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插头, 焊接端接 096 EURO TYPE C PIN ST ASSY

¥19.1520
详情

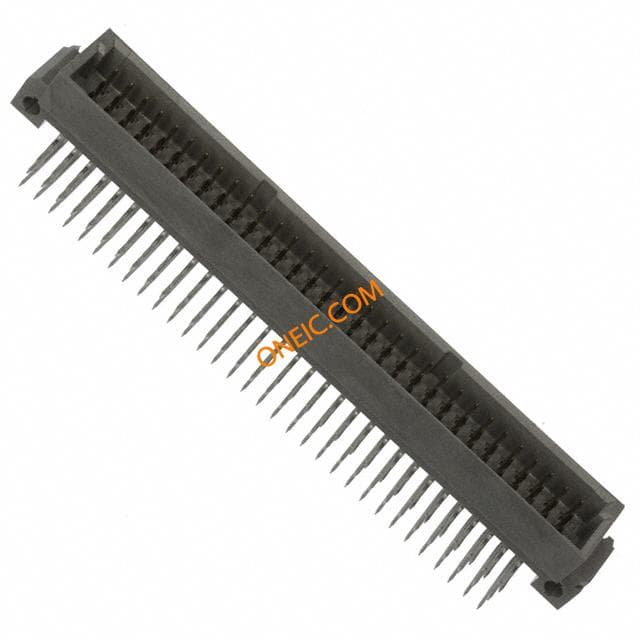

5148116-5

5148116-5

te connectivity / amp

Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN PLUG RTANG 96 POS .100 DIN DIN 41612 Connectors PLUG 96P R/A TYPE C Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:With ContactsContact Gender = PinHousing Gender = ReceptacleType = Type C2.54 mm CenterlineSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR, PLUG, 96WAY ASSY,PIN,EUROCARD,TYPE C,LEAD-FREE,96 PO

¥22.5360
详情
5650913-5

5650913-5

te connectivity / amp

Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 96POS RT ANG PCB DIN 41612 Connectors PLUG 96P R/A TYPE C Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 PLUG, DIN41612, 96WAY Receptacle,Eurocard;Plug;Brass;96;Glass-FilledPolyester;Gray;PCBMount Type C 96 Position 2.54 mm Plug Right Angle Through Hole Eurocard Connector ASSY,PIN,EUROCARD,TYPE C,LEAD-

¥18.1200
详情
5536405-5

5536405-5

te connectivity / amp

Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 96POS RT ANG PCB DIN 41612 Connectors PLUG 96P R/A TYPE C Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlug96 PositionsRows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR PLUG 96POS Eurocard 96 Position 3 Row Right Angle Plug TYPE C 3.3 mm Connector ASSY,PIN,EUROCARD,TYPE C,LEAD-

¥24.3230
详情
650473-5

650473-5

te connectivity / amp

Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 96POS RT ANG PCB DIN 41612 Connectors Type C Pin Header 96 Position Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 Receptacle,Eurocard;Plug;Brass;96;Polyester;Gray;PCBMount;0.104in. Type C 96 Position 2.54 mm Plug Right Angle Through Hole Eurocard Connector 096 EURO TYPE C PIN ST ASSY

¥17.2080
详情
536416-5

536416-5

te connectivity / amp

Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 96POS RT ANG PCB DIN 41612 Connectors PLUG 96 POS R/A TYPE C Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612

¥39.5280
详情
650913-5

650913-5

te connectivity / amp

Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 96POS RT ANG PCB DIN 41612 Connectors 096 EURO TYPE C PIN 900 Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 TYPECLCP/BDLOCK,096EUROTYPECPINBLASSY 096 EURO TYPE C PIN BL ASSY

¥20.8800
详情

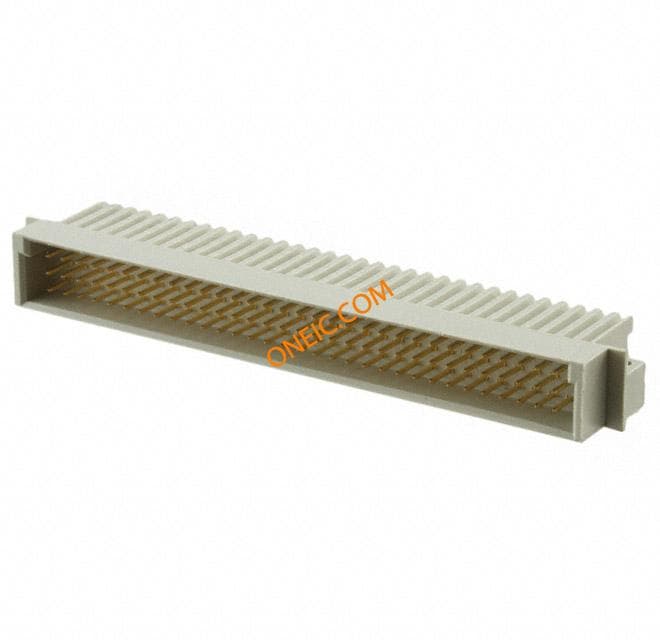

215605-4
