首页产品分类连接器解决方案背板连接器DIN 416121-148057-5
1-148057-5

点击放大查看

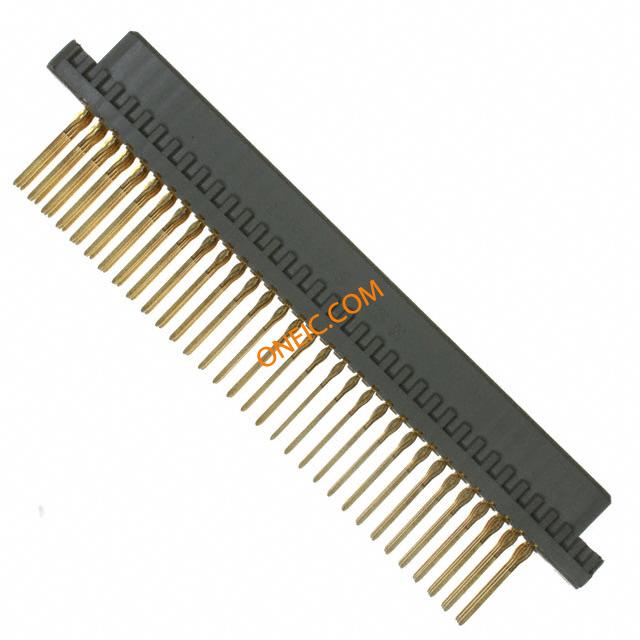

1-148057-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN RCPT EUROCRD 96POS 13MM PCB DIN 41612 Connectors DIN 96 POS TYPE C Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 CONECTOR,RECEPTACLE,EUROCARDTYPEC,96POS,ROWSA,B,CLOADED 096 EURO TYP C RECP 13MM ASSY
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量150

合规参数

RoHSLead free / RoHS Compliant标准ELVCompliant,RoHSCompliant
无铅定义Not relevant for lead free process认证机构CSA,UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612额定电压250V
最大额定电流1.5 A

机械参数

尺寸Standard颜色Gray
间距2.54 mm涂层Without
包装方式Bulk外壳尺寸C
端接方式Solder触点尺寸0.64 [.025] Sq.
触头类型Compliant Post尾部长度13 mm
安装类型Through Hole行程角度Straight
连接器类型Receptacle, Female Sockets接触镀层Gold Over Nickel
安装样式不带排数2
电路板厚度2.36 [0.093]高度（英寸）24.51
插入件材料磷青铜触头材料Phosphor Bronze
壳体材料Polyester总长度3.7"
安装特性With面板安装类型通孔 - 免焊连接
主要材料Eurocard尺寸/外形标准
先合后断No插针孔直径0.1"
连接器间距2.54端接样式Press Fit
触点数96接触件尾部长度13
横截面形状.64 x .64 mm [ .025 x .025 in ]位数96
触头长度-柱信号（数据）绝缘材料 - 材质Polyester, Glass Filled
柱体长度（配合）0.512安装孔直径0.11"
接触件表面处理 - 配合锡铅端子柱长度13.00 [0.512]
接触镀层厚度.76

产品信息

备注Seating tool required.类型DIN 41612
等级II样式C
连接器性别Receptacle系列148057
产品子类型Type C Connectors总线连接FUTUREBUS, MULTIBUS (II), NUBUS, VMEbus, VXIBus
连接类型Printed Circuit Board列数18
工具类型/特性Yes加载位置数All

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C封装热阻1.57 mm [ .062 in ]

文档与媒体

在线文档
1-148057-5?RQPN=1-148057-5
