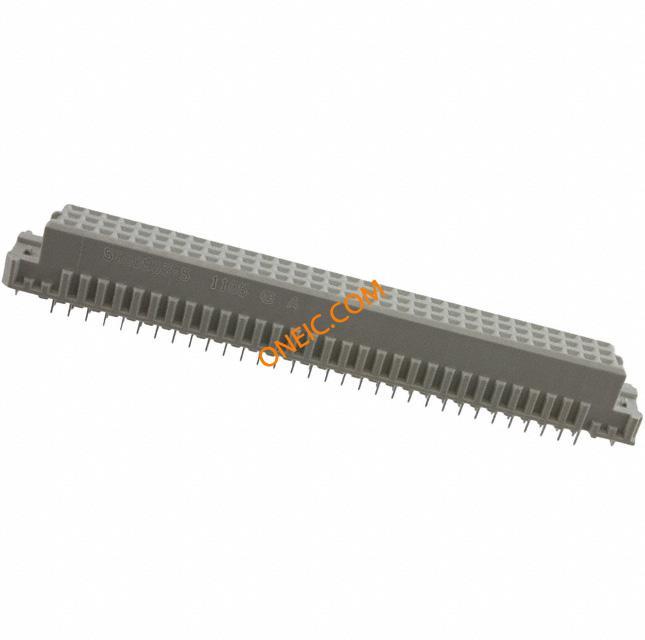

5650963-5

点击放大查看

5650963-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 96POS VERT PCB DIN 41612 Connectors RECPT 96P R/A TYPE C Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR RECEPTACLE 96POS 2.54 mm 96 Position Receptacle Vertical Through Hole Eurocard Type C Connector ASSY,RECEPTACLE,EUROCARD,TYPE
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量150

合规参数

RoHSLead free / RoHS Compliant海关税号85366930
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

最大额定电流1.5 A最小供电电压250VAC

机械参数

尺寸Standard颜色Gray
深度10.6 mm间距2.54 mm
高度11.5 mm重量0
涂层Without包装方式Bulk
端接方式Solder触点尺寸0.30 x 0.61 [.012 x .024]
触头类型Solder Post外壳颜色Gray
尾部长度3.3 mm安装类型Through Hole
连接器类型Receptacle, Female Sockets接触镀层Tin
安装样式Through Hole排数3
触头材料Copper Alloy壳体材料Polymer
总长度93.98 mm安装特性With
先合后断No端接样式Solder Pin
触点数96接触件端接:Through Hole Vertical
位数96绝缘材料 - 材质Polymer Thermoplastic, Glass Filled
端子柱长度3.30 [0.130]

产品信息

类型DIN 41612等级II
样式C连接器性别Receptacle
系列5650963产品特性Board Lock
产品子类型Type C Connectors总线连接FUTUREBUS, MULTIBUS (II), NUBUS, VMEbus, VXIBus
连接类型Printed Circuit Board工具类型/特性No
加载位置数All

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C

文档与媒体

在线文档
5650963-5?RQPN=5650963-5
