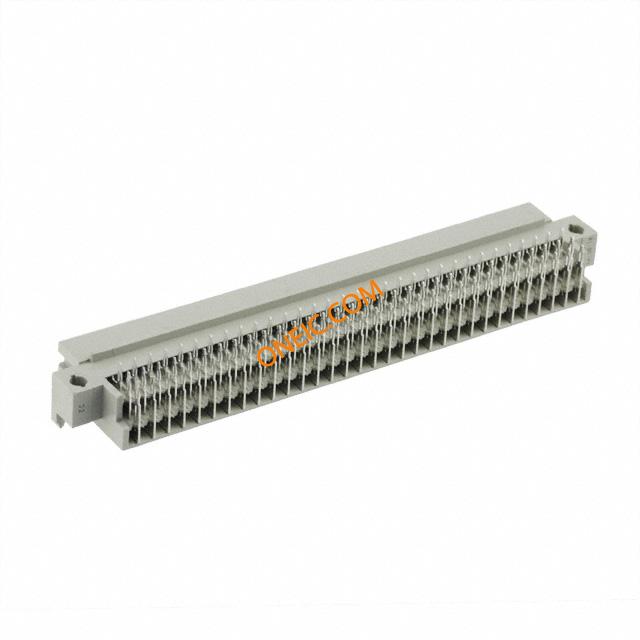

148292-5

点击放大查看

148292-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 96 POS 2.54mm Press Fit RA Thru-Hole Eurocard Type R CONN RECEPT RTANG 96POS .100 DIN Eurocard DIN41612 R,rcp,r/a,96way DIN 41612 Connectors Type R Receptacle 96 P w/Compliant Pin Conn DIN 41612 RCP 96 POS 2.54mm Press Fit RA Thru-Hole Product Highlights:ReceptacleNumber of Positions = 96PCB Mount Angle = Right AngleYes PCB Retention FeatureACTION (Compliant) Press-fit PostsSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 EurocardDIN41612R,rcp,r/a,96way TE Connectivity Eurocard 系列 96 路 2.54mm 节距, R型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插座, 按式端接 096 EURO TYP R RECEPT EON ASSY
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

其他名称1482925产品类别DIN 41612 Connectors
标准包装数量Bulk工厂包装数量140

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS/Not ELV Compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612

机械参数

颜色Gray间距2.54 mm
涂层Without包装方式Bulk
方向RightAngle端接方式Press Fit
触头类型Compliant Post安装类型Through Hole
端子尺寸.64 x .64 mm [ .025 x .025 in ]连接器类型Receptacle, Female Sockets
接触镀层Tin-Lead触点时序否
安装样式带有排数3
电路板厚度1.57 [0.062]高度（英寸）18.54
插入件材料磷青铜触头材料Phosphor Bronze
壳体材料Polyester安装特性作用/符合标准的尾
面板安装类型通孔 - 焊接尺寸/外形II
端接排数按式先合后断No
连接器间距2.54端接样式Solder Pin
配接方向Without触点数96
接触件尾部长度2.92位数96
触头长度-柱信号（数据）绝缘材料 - 材质Polyester, Glass Filled
安装孔直径不带接触件表面处理 - 配合锡铅
端子柱长度2.92 [0.115]

产品信息

类型DIN 41612等级II
样式R连接器性别Female
系列Type RCAD图纸3D CAD Model
导向方式Without产品子类型Receptacle
列数16插座类型与数量A/b/c
加载位置数All

环境参数

额定等级C2级别、等级2
工作温度-55°C ~ 125°C封装热阻1.57 mm [ .062 in ]
