5650889-5

点击放大查看

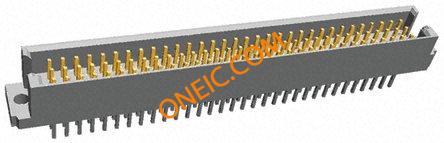

5650889-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 PIN 96 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type R CONN DIN PLUG 96POS VERT PCB Eurocard DIN41612 R,plug,3row,vert,96way DIN 41612 Connectors PLUG 96P VERT TYPE R Conn DIN 41612 PIN 96 POS 2.54mm Press Fit ST Thru-Hole Product Highlights:PlugNumber of Positions = 96PCB Mount Angle = VerticalYes PCB Retention FeatureACTION PIN (Compliant) PostsSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 ASSY,PIN,EUROCARD,TYPER,LEAD-FREE,96PO 96 Position 2.54 mm Plug Vertical Through Hole Eurocard Type R Connector TE Connectivity Eurocard 系列 96 路 2.54mm 节距, R型 C2等级, 3 行 a/b/c 直向 DIN 41612 插头, 按式端接 ASSY,PIN,EUROCARD,TYPE R,LEAD-
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612供电电压250
最大额定电流1.5

机械参数

颜色Gray间距2.54 mm
高度11.4 mm [ .45 in ]涂层Without
包装方式Bulk厚度2.36 [0.093]
方向直端接方式Press Fit
触头类型Compliant Post尾部长度6.35 mm
安装类型Through Hole连接器类型Plug, Male Pins
接触镀层Tin安装样式带有
排数3端子样式.64 x .64 mm [ .025 x .025 in ]
插入件材料铜合金触头材料Copper Alloy
壳体材料Polymer安装特性作用/符合标准的尾
面板安装类型通孔 - 焊接主要材料Eurocard
端接排数按式先合后断No
端接样式Solder Pin配接方向Without
触点数96位数96
触头长度-柱6.35 mm [ .25 in ]绝缘材料 - 材质Polymer Thermoplastic, Glass Filled
安装孔直径不带接触件表面处理 - 配合锡
端子柱长度6.35 [0.250]接触镀层厚度2.54 µm [ 100 µin ]

产品信息

类型DIN 41612等级II
样式R连接器性别Male
系列5650889导向方式Without
产品子类型Plug列数16
插座类型与数量A/b/c加载位置数All

环境参数

额定等级C2级别、等级2
工作温度-55°C ~ 125°C封装热阻1.57 mm [ .062 in ]
