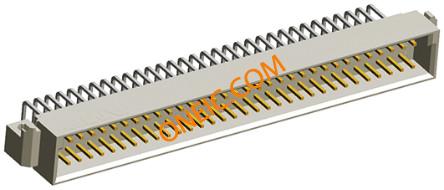

650945-5

点击放大查看

650945-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 PL 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 64POS RT ANG PCB Connector Right Angle 64 way Eurocard DIN 41612 Connectors Type C Pin Header 64 Position Conn DIN 41612 PL 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 Receptacle,Eurocard;Plug;Brass;64;Polyester;Gray;PCBMount;0.104in. 64 Position 2.54 mm Right Angle Triple Row Type C Backpanel Connector Assembly TE Connectivity Eurocard 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c, 直角 DIN 41612 插头, 焊接端接 064 EURO TYPE C PIN ST ASSY
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS non-compliant标准DIN41612
无铅定义Wave solder capable to 240°C认证机构CSA,UL
RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612额定电压250 V ac
供电电压250接触电阻15 mΩ, 50 mV
最大额定电流1.5 A最小供电电压250VAC

机械参数

尺寸Standard颜色Gray
深度17.73 mm间距2.54 mm
高度11.1 mm涂层Without
包装方式Bulk屏蔽否
外壳尺寸C方向直角
端接方式Solder触点尺寸0.64 [.025] Sq.
触头类型Solder Post引脚长度（针脚）0.104"
外壳颜色Gray尾部长度2.65 mm
安装类型Through Hole端子尺寸.64 x .64 mm [ .025 x .025 in ]
行程角度Right连接器类型Plug, Male Pins
接触镀层Gold Over Nickel触点时序否
安装样式Through Hole排数2
插入件材料黄铜触头材料Brass
壳体材料Polyester总长度94 mm
安装特性Without面板安装类型通孔 - 焊接
主要材料Eurocard尺寸/外形II
端接排数a/c先合后断No
插针孔直径0.1"端接样式Solder Pin
触点数64位数64
触头长度-柱2.64 mm [ .103 in ]绝缘材料 - 材质Polyester, Glass Filled
柱体长度（配合）0.104in.安装孔直径带有
接触件表面处理 - 配合锡铅端子柱长度2.65 [0.104]
接触镀层厚度2.54 – 5.08 µm [ 100 – 200 µin ]

产品信息

类型DIN 41612等级II
样式C连接器性别Plug
系列650945导向方式Without
制造商全称AMPEurocardTypeC产品子类型Type C Connectors
连接类型Printed Circuit Board工具类型/特性No
插座类型与数量A/c加载位置数64

环境参数

额定等级C2温度No
级别、等级2工作温度-55°C ~ 125°C

文档与媒体

在线文档
650945-5?RQPN=650945-5

相关型号

650956-5

650956-5

te connectivity / amp

Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors Type C Receptacle 64 Position Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612

¥17.7480
详情
2-1393640-5

2-1393640-5

te connectivity / amp

Conn DIN 41612 SKT 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C EUROCARD TYPE C V42254B2102C963=PC612 FEDERLEI V42254B2102C963=PC612 FEDERLEI Search Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612

¥16.1500
详情
5535059-5

5535059-5

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors DIN RECPT 64P VERT TYPE C Conn DIN 41612 RCP 64 POS 2.54mm Press Fit ST Thru-Hole Search Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612

¥21.3520
详情
9-1393640-3

9-1393640-3

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN RCPT 64POS VERT SOLDER T/H 2.54mm,rcpt,DIN41612,solder,PCB,vert,64w DIN 41612 Connectors RCPT 64P VT TYPE C Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 SOCKET, DIN41612, STRAIGHT, C, 64WAY Multipole socket C 64-p DIN 41612 2 2 x 32 a + c, 9-1393640-3, TE Connectivity TE Connectivity Eurocard 系列 64 路 2.54mm 节距, C型 C2等级, 2 行 a/c 直向 DIN 41612 插座, 焊接端接 V42254B2201C963=PC612 FEDERLEI

¥16.1160
详情
暂无图片

215913-4

te connectivity / amp

Conn DIN 41612 F 64 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type C 64P.IEC-C FEM.CONN

详情
3-1393641-5

3-1393641-5

te connectivity / amp

Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type C EUROCARD TYPE C Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedContact Gender = ReceptacleHousing Gender = PlugType = Type C2.54 mm CenterlineSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 CONN DIN TE Connectivity Eurocard 系列 96 路 2.54mm 节距, 3 行 直向 DIN 41612 插座, 焊接端接 V42254B2202C963=PC612 FEDERLEI

¥17.1360
详情
5650408-4

5650408-4

te connectivity / amp

Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors RECPT 64P VERT TYPE C Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedContact Gender = ReceptacleHousing Gender = PlugType = Type C2.54 mm CenterlineSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 64 Position 3 Row 2.54 mm Pitch Eurocard Type C Vertical Receptacle Connector

¥22.4910
详情
5650870-4

5650870-4

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN DIN RECEPT 64POS RT ANG PCB Eurocard Type R Header assembly 32+32P DIN 41612 Connectors RECPT 64P R/A TYPE R Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:Housing Gender = PlugContact Gender = Receptacle64 PositionsPCB Mount Angle = Right AngleWithout PCB Mount RetentionSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR RECEPTACLE 64POS 064EUROTYPERRECEPTASSY 64 Position Dual Row 2.54 mm Pitch Right Angle Solder Post Receptacle Assembly

¥18.1560
详情
746603-1

746603-1

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm IDT RA Cable Mount DIN 41612 Connectors 64 PIN CONN W/COVER 210 Eurocard Type C CONN RCPT 64POS 30-26AWG IDC

¥89.6784
详情
5535059-4

5535059-4

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors C REC VRT A CX32C L2 PFIT Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedContact Gender = ReceptacleHousing Gender = PlugType = Type C2.54 mm CenterlineSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 ASSY,RECEPTACLE,EURO,TYPE C,L-FREE,A&C,6

¥21.7600
详情
9-1393640-0

9-1393640-0

te connectivity / amp

Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type C EUROCARD TYPE C DIN 41612 Connectors V42254B2201C913 PC612 FEDERLEI Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 96Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 V42254B2201C913=PC612 FEDERLEI

¥18.0200
详情
167257-5

167257-5

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm IDT ST Panel Mount Eurocard Type C 3X32P MT TAN BU ST Headers & Wire Housings 3X32P MT TAN BU ST Conn DIN 41612 RCP 64 POS 2.54mm IDT ST Panel Mount Search Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612

¥71.0600
详情
5650408-5

5650408-5

te connectivity / amp

Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors Type C Receptacle 64 Position Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 ASSEMBLY,RECEPTACLE,EURO,TYPE

¥14.9600
详情
650870-4

650870-4

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN DIN RECEPT 64POS RT ANG PCB DIN 41612 Connectors 064 EURO R RECEPT Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:ReceptacleNumber of Positions = 64PCB Mount Angle = Right AngleNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612

¥19.1760
详情
746603-4

746603-4

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm IDT RA Cable Mount Eurocard Type C CONN RCPT 64POS TYPE C EUROCARD Eurocard,Type C,rcp,64 skt contacts DIN 41612 Connectors REC VRT CX32P L2 IDC Conn DIN 41612 RCP 64 POS 2.54mm IDT RA Cable Mount Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 64Rows Loaded = A, CTerminate To Ribbon CableSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 I/O CONNECTOR, 64WAY, RECEPTACLE, SOLDER EUROLATCHConnector,60position,withcover 64 Position 3 Row 2.54 mm Pitch Type C Eurocard Receptacle Connector TE Connectivity Eurocard 系列 64 路 2.54mm 节距, C型, 2 行 a/c, 直角 DIN 41612 插座, IDT端接 64 EUROLATCH LEAD FREE

¥327.4200
详情
1-148167-5

1-148167-5

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type C CONN RCPT 64POS TYPE C VERT GRAY DIN 41612 Connectors RCPT 64P TYPE C VERT GRAY CONN DIN 064 EURO TYP C RECP 13MM ASSY

¥55.0800
详情
5650956-5

5650956-5

te connectivity / amp

Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB Eurocard C Recptacle assembly 32+0+32P Eurocard Receptacle; 64; Phosphor Bronze; Polyester; 0.13 in.; Vertical; Gray DIN 41612 Connectors Type C Receptacle 64 Position Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Search Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 EurocardReceptacle;64;PhosphorBronze;Polyester;0.13in.;Vertical;Gray Type C 64 Position 2.54 mm Receptacle Vertical Through Hole Eurocard Connector ASSEMBLY,RECEPTACLE,EURO,TYPE

¥12.7160
详情

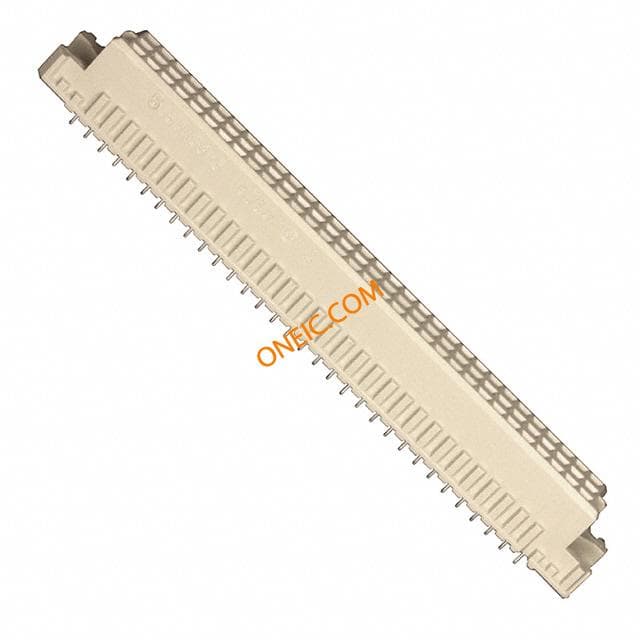

5650458-5
