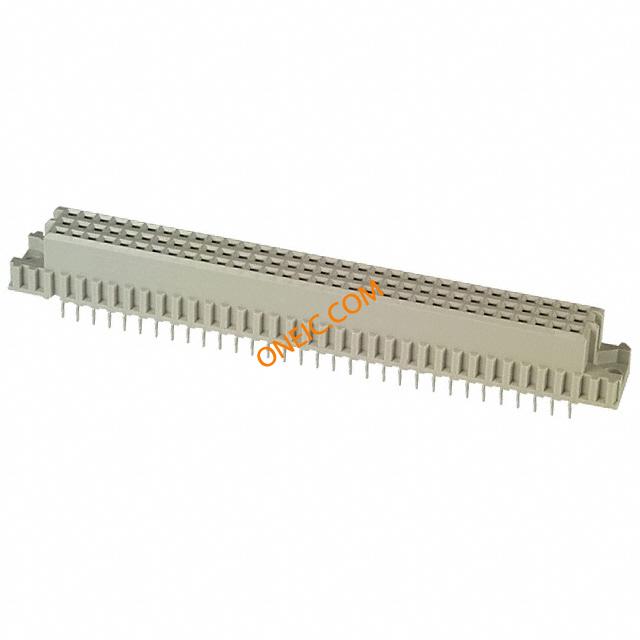

535059-4

点击放大查看

535059-4

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 64 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors EUROCARD 96P RECPT Conn DIN 41612 RCP 64 POS 2.54mm Press Fit ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 064 EURO TYPE C RECEPT AP ASSY
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量150

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS/Not ELV Compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612接触电阻15 mohm
最小供电电压250VAC

机械参数

尺寸Standard颜色Gray
深度10.59 mm间距2.54 mm
高度11.51 mm涂层Without
包装方式Bulk屏蔽否
端接方式Press Fit触点尺寸0.30 x 0.61 [.012 x .024]
触头类型Compliant Post外壳颜色Gray
安装类型Through Hole端子尺寸.3 x .58 mm [ .012 x .023 in ]
连接器类型Receptacle, Female Sockets接触镀层Gold Over Palladium Nickel
触点时序否安装样式Through Hole
排数2电路板厚度1.57 [0.062]
插入件材料磷青铜触头材料Phosphor Bronze
壳体材料Polyester总长度93.98 mm
安装特性With面板安装类型通孔 - 免焊连接, 通孔 - 免焊连接
尺寸/外形II先合后断No
端接样式Press Fit触点数64
接触件尾部长度4.83位数64
触头长度-柱信号（数据）绝缘材料 - 材质Polyester, Glass Filled
安装孔直径带有接触件表面处理 - 配合锡铅
端子柱长度4.83 [0.190]

产品信息

类型DIN 41612等级II
样式C连接器性别Receptacle
系列535059导向方式不带
产品子类型Type C Connectors连接类型Printed Circuit Board
列数32工具类型/特性Yes
加载位置数64

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C封装热阻1.57 mm [ .062 in ]
