650933-5

点击放大查看

650933-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 PIN 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 64POS VERT PCB DIN 41612 Connectors 64P PLUG EUROCARD 300 Conn DIN 41612 PIN 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:PlugNumber of Positions = 64PCB Mount Angle = VerticalNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 064 EURO TYPE R PIN ST ASSY
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Wave solder capable to 240°C
RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612供电电压250
接触电阻15 mohm最大额定电流1.5
最小供电电压250VAC

机械参数

颜色Gray深度11.1 mm
间距2.54 mm高度11.51 mm
涂层Without包装方式Bulk
屏蔽否端接方式Solder
触头类型Solder Post外壳颜色Gray
尾部长度3.3 mm安装类型Through Hole
端子尺寸.64 x .64 mm [ .025 x .025 in ]连接器类型Plug, Male Pins
接触镀层Gold Over Nickel触点时序否
安装样式Through Hole排数2
插入件材料黄铜触头材料Brass
壳体材料Polyester总长度95 mm
面板安装类型通孔 - 焊接尺寸/外形II
先合后断No端接样式Solder Pin
配接方向Without触点数64
位数64触头长度-柱3.3 mm [ .129 in ]
绝缘材料 - 材质Polyester, Glass Filled安装孔直径带有
接触件表面处理 - 配合锡铅端子柱长度3.30 [0.130]
接触镀层厚度2.54 – 5.08 µm [ 100 – 200 µin ]

产品信息

类型DIN 41612等级II
样式R连接器性别Pin
系列650933导向方式Without
产品子类型Plug列数32
加载位置数64

环境参数

级别、等级2工作温度-55°C ~ 125°C

文档与媒体

在线文档
650933-5?RQPN=650933-5

相关型号

650956-5

650956-5

te connectivity / amp

Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors Type C Receptacle 64 Position Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612

¥17.7480
详情
5535059-5

5535059-5

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors DIN RECPT 64P VERT TYPE C Conn DIN 41612 RCP 64 POS 2.54mm Press Fit ST Thru-Hole Search Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612

¥21.3520
详情
5650408-4

5650408-4

te connectivity / amp

Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors RECPT 64P VERT TYPE C Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedContact Gender = ReceptacleHousing Gender = PlugType = Type C2.54 mm CenterlineSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 64 Position 3 Row 2.54 mm Pitch Eurocard Type C Vertical Receptacle Connector

¥22.4910
详情
536481-5

536481-5

te connectivity / amp

Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C 064 EURO TYPE C RECEPT BL ASSY DIN 41612 Connectors 064 EURO TYPE C RECE 150 064 EURO TYPE C RECEPT BL ASSY Search Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612

¥15.3884
详情
5650870-4

5650870-4

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN DIN RECEPT 64POS RT ANG PCB Eurocard Type R Header assembly 32+32P DIN 41612 Connectors RECPT 64P R/A TYPE R Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:Housing Gender = PlugContact Gender = Receptacle64 PositionsPCB Mount Angle = Right AngleWithout PCB Mount RetentionSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR RECEPTACLE 64POS 064EUROTYPERRECEPTASSY 64 Position Dual Row 2.54 mm Pitch Right Angle Solder Post Receptacle Assembly

¥18.1560
详情
650870-5

650870-5

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN RECEPT RTANG 64POS .100 DIN DIN 41612 Connectors Type R Receptacle 64 Position Eurocard Type R Product Highlights:ReceptacleNumber of Positions = 64PCB Mount Angle = Right AngleNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 064 EURO TYPE R RECEPT ASSY

¥31.3616
详情
746603-1

746603-1

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm IDT RA Cable Mount DIN 41612 Connectors 64 PIN CONN W/COVER 210 Eurocard Type C CONN RCPT 64POS 30-26AWG IDC

¥89.6784
详情
5535059-4

5535059-4

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors C REC VRT A CX32C L2 PFIT Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedContact Gender = ReceptacleHousing Gender = PlugType = Type C2.54 mm CenterlineSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 ASSY,RECEPTACLE,EURO,TYPE C,L-FREE,A&C,6

¥21.7600
详情

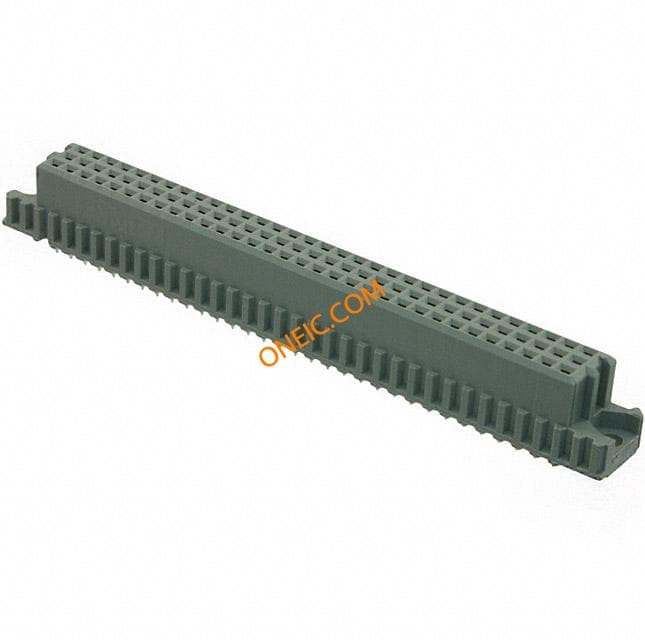

650458-5

650458-5

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN RECEPT 64 POS VERT DIN PCB DIN 41612 Connectors Type C Receptacle 64 Position Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 064 EURO TYPE C RECEPT ST ASSY

¥12.5120
详情
650408-4

650408-4

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors RECEPTACLE 64 POS TYPE C Eurocard Type C Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612

¥20.1280
详情
5650408-5

5650408-5

te connectivity / amp

Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors Type C Receptacle 64 Position Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 ASSEMBLY,RECEPTACLE,EURO,TYPE

¥14.9600
详情
650870-4

650870-4

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN DIN RECEPT 64POS RT ANG PCB DIN 41612 Connectors 064 EURO R RECEPT Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:ReceptacleNumber of Positions = 64PCB Mount Angle = Right AngleNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612

¥19.1760
详情
1-148167-5

1-148167-5

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type C CONN RCPT 64POS TYPE C VERT GRAY DIN 41612 Connectors RCPT 64P TYPE C VERT GRAY CONN DIN 064 EURO TYP C RECP 13MM ASSY

¥55.0800
详情
5650870-5

5650870-5

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN EUROCRD RCPT 64POS R/A TYPR DIN 41612 Connectors Type R Receptacle 64 Position Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:ReceptacleNumber of Positions = 64PCB Mount Angle = Right AngleNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 CONNECTOR, RECEPTACLE, 64POS EurocardReceptacle;64;PhosphorBronze;Polyester;0.11in.;RightAngle;II 64 Position Dual Row 2.54 mm Pitch Right Angle Solder Post Receptacle Assembly ASSEMBLY,RECEPTACLE,EURO,TYPE

¥24.0570
详情
5650956-5

5650956-5

te connectivity / amp

Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB Eurocard C Recptacle assembly 32+0+32P Eurocard Receptacle; 64; Phosphor Bronze; Polyester; 0.13 in.; Vertical; Gray DIN 41612 Connectors Type C Receptacle 64 Position Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Search Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 EurocardReceptacle;64;PhosphorBronze;Polyester;0.13in.;Vertical;Gray Type C 64 Position 2.54 mm Receptacle Vertical Through Hole Eurocard Connector ASSEMBLY,RECEPTACLE,EURO,TYPE

¥12.7160
详情

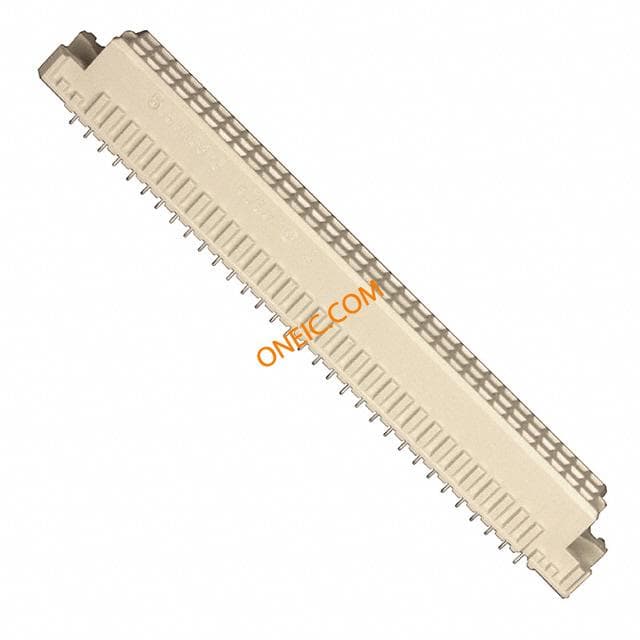

5650458-5
