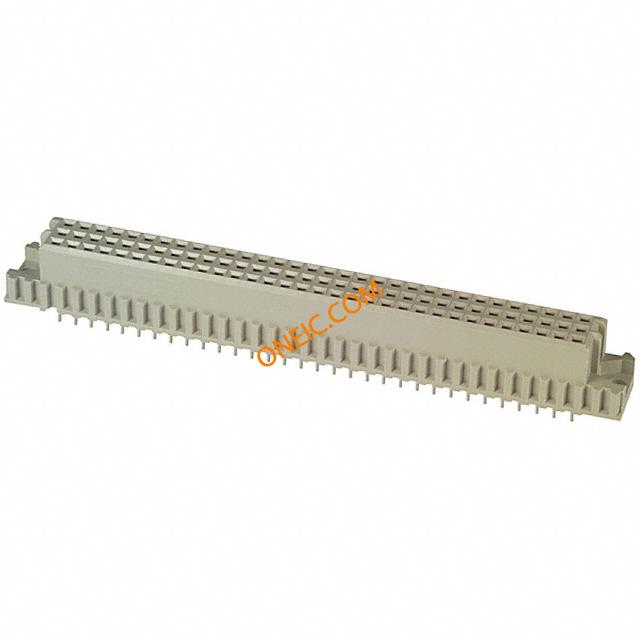

650408-4

点击放大查看

650408-4

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors RECEPTACLE 64 POS TYPE C Eurocard Type C Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

标准包装规格30产品类别DIN 41612 Connectors
标准包装数量Bulk工厂包装数量150

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Wave solder capable to 240°C
RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant材料阻燃等级UL 94V-0

机械参数

尺寸Standard颜色Gray
间距2.54 mm涂层Without
包装方式Bulk端接方式Solder
触点尺寸0.30 x 0.61 [.012 x .024]触头类型Solder Post
安装类型Through Hole连接器类型Receptacle, Female Sockets
接触镀层Gold Over Nickel排数2
触头材料Phosphor Bronze壳体材料Polyester
安装特性With先合后断No
端接样式Solder Tail触点数64
位数64绝缘材料 - 材质Polyester, Glass Filled
端子柱长度4.57 [0.180]接触镀层厚度30µin (0.76µm)

产品信息

类型DIN 41612等级II
样式C连接器性别Receptacle
系列650408产品子类型Type C Connectors
连接类型Printed Circuit Board工具类型/特性No
加载位置数64

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C
