536356-5

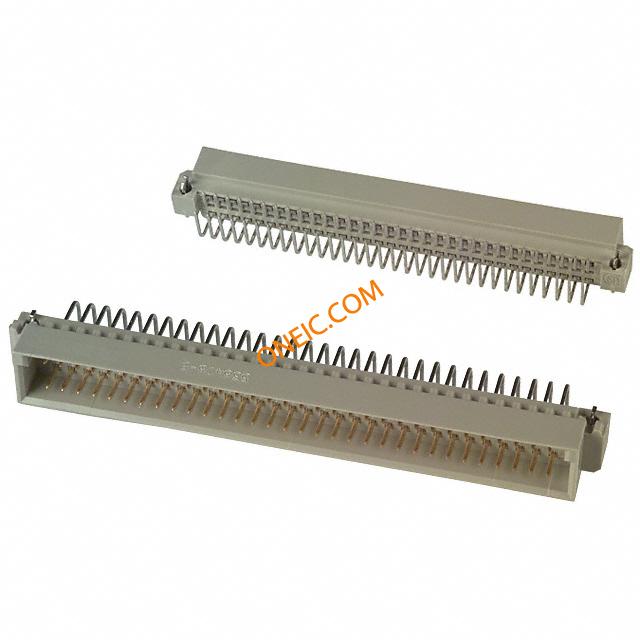

点击放大查看

536356-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 PL 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 64POS RT ANG PCB DIN 41612 Connectors DIN PLUG 64P R/A TYPE C Conn DIN 41612 PL 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorPlugType = Type C64 PositionsRows Loaded = A, CSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 64 Position 2.54 mm Plug Right Angle Through Hole Eurocard Type C Connector
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Wave solder capable to 240°C
RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant材料阻燃等级UL 94V-0

机械参数

尺寸Standard颜色Gray
间距2.54 mm涂层Without
包装方式Bulk端接方式Solder
触点尺寸0.64 [.025] Sq.触头类型Solder Post
安装类型Through Hole连接器类型Plug, Male Pins
接触镀层Gold Over Nickel排数2
触头材料Brass壳体材料Polyester GF
安装特性With先合后断No
触点数64位数64
绝缘材料 - 材质Polyester, Glass Filled端子柱长度2.65 [0.104]

产品信息

类型DIN 41612等级II
样式C连接器性别Plug
产品特性Board Lock导向方式Without
产品子类型Type C Connectors连接类型Printed Circuit Board
工具类型/特性No加载位置数64

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C

文档与媒体

在线文档
536356-5?RQPN=536356-5
