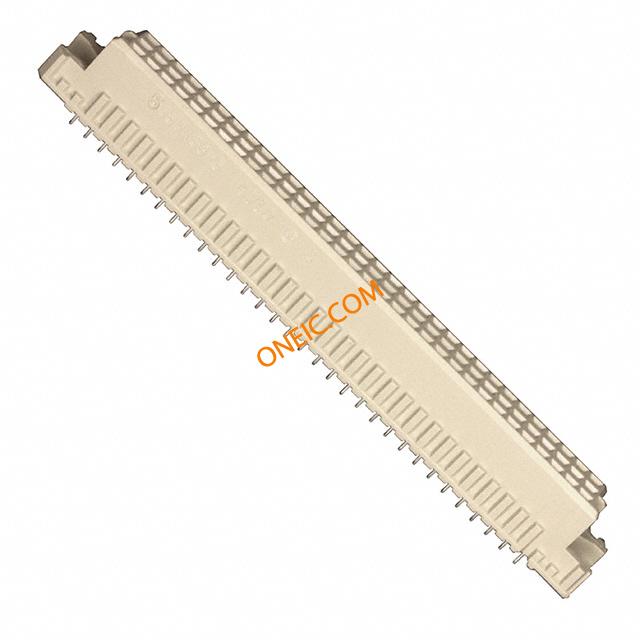

5650458-5

点击放大查看

5650458-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN RECEPT 64 POS VERT DIN PCB DIN 41612 Connectors Type C Receptacle 64 Position Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedContact Gender = ReceptacleHousing Gender = PlugType = Type C2.54 mm CenterlineSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 SOCKET, DIN41612, STRAIGHT, C, 64WAY EurocardReceptacle;64;PhosphorBronze;Polyester;0.098in.;Vertical;Gray ASSEMBLY,RECEPTACLE,EURO,TYPE
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

其他名称56504585产品类别DIN 41612 Connectors
标准包装数量Bulk工厂包装数量150

合规参数

RoHSLead free / RoHS Compliant标准DIN41612,IEC603-2
海关税号85369010无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
认证机构:CSA, ULRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250V最大额定电流1.5 A
最小供电电压250VAC

机械参数

尺寸Standard颜色Gray
深度10.6 mm间距2.54 mm
高度11.5 mm重量0.012
涂层Without材料（通用）:Polyester
包装方式Bulk外壳尺寸C
端接方式Solder触点尺寸0.30 x 0.61 [.012 x .024]
触头类型Solder Post引脚间距:2.54mm
引脚长度（针脚）:2.49mm外壳颜色Gray
尾部长度2.49 mm安装类型Through Hole
行程角度Straight连接器类型Receptacle, Female Sockets
接触镀层Tin安装样式Through Hole
排数2触头材料Copper Alloy
壳体材料Polymer总长度93.95 mm
安装特性With主要材料Eurocard
先合后断No插针孔直径0.1"
端接样式Solder Pin连接器颜色:Grey
触点数64接触件端接:Through Hole Vertical
位数64绝缘材料 - 材质Polymer Thermoplastic, Glass Filled
安装孔直径0.11"端子柱长度2.49 [0.098]

产品信息

类型DIN 41612等级II
样式C连接器性别Receptacle
系列5650458制造商全称Eurocard
产品子类型Type C Connectors连接类型Printed Circuit Board
测量范围:std工具类型/特性No
加载位置数64

环境参数

温度No级别、等级2
插拔次数:400工作温度-55°C ~ 125°C
