5650945-5

点击放大查看

5650945-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 PIN 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 64POS RT ANG PCB 2.54mm,pin,horizontal,solder,PCB,64way DIN 41612 Connectors PLUG 64P R/A TYPE C Conn DIN 41612 PIN 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 PLUG, DIN41612, R/A, C, 64WAY CONECTOR,PLUG,EUROCARDTYPEC,64POS,ROWSAANDCLOADED Receptacle,Eurocard;Plug;Brass;64;Polyester;Gray;PCBMount;0.104in. 2.54 mm 64 Position Plug Right Angle Through Hole Eurocard Type C Connector TE Connectivity Eurocard 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c, 直角 DIN 41612 插头, 焊接端接 ASSY,PIN,EUROCARD,TYPE C,LEAD-
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant标准DIN41612
海关税号85369010无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
认证机构:CSA, ULRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250V最大额定电流1.5 A
最小供电电压250VAC

机械参数

尺寸Standard颜色Gray
深度17.73 mm间距2.54 mm
高度11.1 mm重量0.01
涂层Without材料（通用）:Polyester
包装方式Bulk外壳尺寸C
端接方式Solder触点尺寸0.64 [.025] Sq.
触头类型Solder Post引脚间距:5.08mm
引脚长度（针脚）:2.64mm外壳颜色Gray
尾部长度2.65 mm安装类型Through Hole
行程角度Right连接器类型Plug, Male Pins
接触镀层Tin安装样式Through Hole
排数2触头材料Brass
壳体材料Polymer总长度94 mm
安装特性Without主要材料Eurocard
先合后断No插针孔直径0.1"
端接样式Solder Pin连接器颜色:Grey
触点数64接触件端接:Through Hole Right Angle
位数64绝缘材料 - 材质Polymer Thermoplastic, Glass Filled
柱体长度（配合）0.104in.端子柱长度2.65 [0.104]

产品信息

类型DIN 41612等级II
样式C连接器性别Plug
系列5650945导向方式Without
制造商全称AMPEurocardTypeC产品子类型Type C Connectors
连接类型Printed Circuit Board测量范围:std
工具类型/特性No加载位置数64

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C

文档与媒体

在线文档
5650945-5?RQPN=5650945-5

相关型号

650956-5

650956-5

te connectivity / amp

Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors Type C Receptacle 64 Position Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612

¥17.7480
详情
5535059-5

5535059-5

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors DIN RECPT 64P VERT TYPE C Conn DIN 41612 RCP 64 POS 2.54mm Press Fit ST Thru-Hole Search Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612

¥21.3520
详情
5650408-4

5650408-4

te connectivity / amp

Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors RECPT 64P VERT TYPE C Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedContact Gender = ReceptacleHousing Gender = PlugType = Type C2.54 mm CenterlineSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 64 Position 3 Row 2.54 mm Pitch Eurocard Type C Vertical Receptacle Connector

¥22.4910
详情
536481-5

536481-5

te connectivity / amp

Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C 064 EURO TYPE C RECEPT BL ASSY DIN 41612 Connectors 064 EURO TYPE C RECE 150 064 EURO TYPE C RECEPT BL ASSY Search Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612

¥15.3884
详情
5650870-4

5650870-4

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN DIN RECEPT 64POS RT ANG PCB Eurocard Type R Header assembly 32+32P DIN 41612 Connectors RECPT 64P R/A TYPE R Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:Housing Gender = PlugContact Gender = Receptacle64 PositionsPCB Mount Angle = Right AngleWithout PCB Mount RetentionSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR RECEPTACLE 64POS 064EUROTYPERRECEPTASSY 64 Position Dual Row 2.54 mm Pitch Right Angle Solder Post Receptacle Assembly

¥18.1560
详情
650870-5

650870-5

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN RECEPT RTANG 64POS .100 DIN DIN 41612 Connectors Type R Receptacle 64 Position Eurocard Type R Product Highlights:ReceptacleNumber of Positions = 64PCB Mount Angle = Right AngleNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 064 EURO TYPE R RECEPT ASSY

¥31.3616
详情
746603-1

746603-1

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm IDT RA Cable Mount DIN 41612 Connectors 64 PIN CONN W/COVER 210 Eurocard Type C CONN RCPT 64POS 30-26AWG IDC

¥89.6784
详情
5535059-4

5535059-4

te connectivity / amp

Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 64POS VERT PCB DIN 41612 Connectors C REC VRT A CX32C L2 PFIT Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedContact Gender = ReceptacleHousing Gender = PlugType = Type C2.54 mm CenterlineSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 ASSY,RECEPTACLE,EURO,TYPE C,L-FREE,A&C,6

¥21.7600
详情

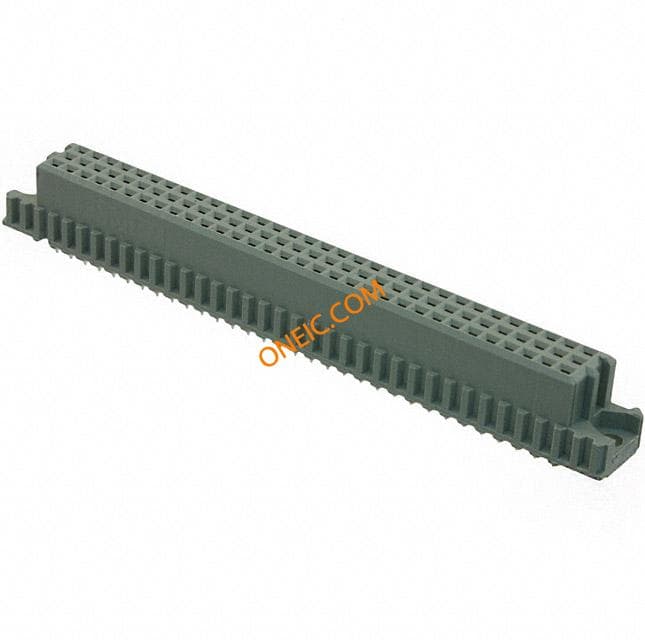

650458-5
