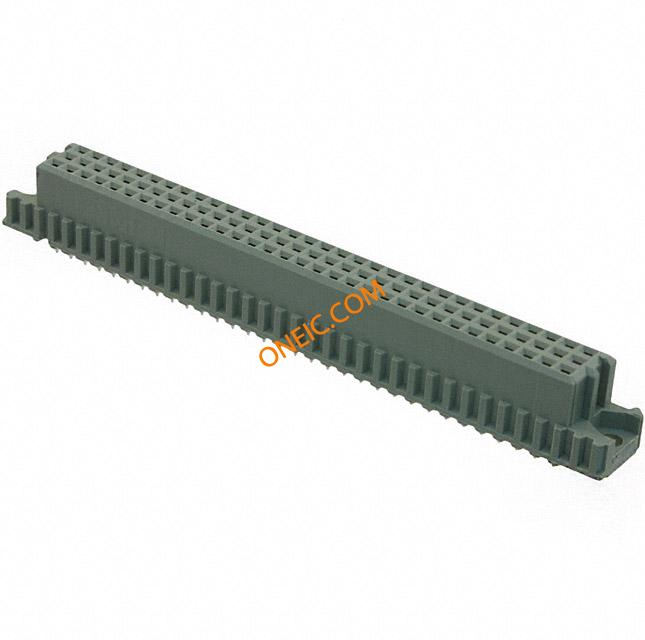

650458-5

点击放大查看

650458-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN RECEPT 64 POS VERT DIN PCB DIN 41612 Connectors Type C Receptacle 64 Position Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 064 EURO TYPE C RECEPT ST ASSY
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

其他名称6504585产品类别DIN 41612 Connectors
标准包装数量Bulk工厂包装数量150

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Wave solder capable to 240°C
RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612供电电压250
最大额定电流1.5

机械参数

尺寸Standard颜色Gray
深度10.6 mm间距2.54 mm
高度11.5 mm涂层Without
包装方式Bulk屏蔽否
端接方式Solder触点尺寸0.30 x 0.61 [.012 x .024]
触头类型Solder Post外壳颜色Gray
安装类型Through Hole端子尺寸.3 x .61 mm [ .012 x .024 in ]
连接器类型Receptacle, Female Sockets接触镀层Gold Over Nickel
触点时序否安装样式Through Hole
排数2插入件材料磷青铜
触头材料Phosphor Bronze壳体材料Polyester
总长度93.95 mm安装特性With
面板安装类型通孔 - 焊接尺寸/外形II
先合后断No端接样式Solder Tail
触点数64位数64
触头长度-柱2.49 mm [ .097 in ]绝缘材料 - 材质Polyester, Glass Filled
安装孔直径带有接触件表面处理 - 配合锡铅
端子柱长度2.49 [0.098]接触镀层厚度2.54 – 5.08 µm [ 100 – 200 µin ]

产品信息

类型DIN 41612等级II
样式C连接器性别Receptacle
系列650458导向方式不带
产品子类型Type C Connectors连接类型Printed Circuit Board
工具类型/特性No加载位置数64

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C
