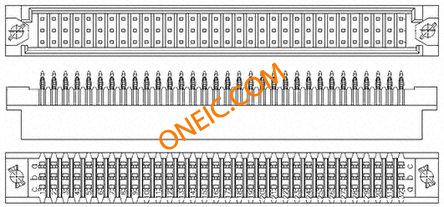

4-1393659-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn DIN 41612 PIN 64 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN PLUG 64POS VERT SLD POST Plug pcb vert 64w 3row 2.54mm Eurocard DIN 41612 Connectors V42254B1202R963 PC612 MESSERLE Eurocard Type R Product Highlights:PlugNumber of Positions = 64PCB Mount Angle = VerticalNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 Plugpcbvert64w3row2.54mmEurocard TE Connectivity Eurocard 系列 64 路 2.54mm 节距, R型 C2等级, 3 行 a/c 直向 DIN 41612 插头, 焊接端接 V42254B1202R963=PC612 MESSERLE |
| 分类 |
商业参数
| 标准包装规格 | 100 | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接口 | Eurocard/DIN 41612 | 额定电压 | 250 V ac |
| 接触电阻 | 15mΩ | 最小供电电压 | 250Vac |
机械参数
| 颜色 | Gray | 间距 | 2.54 mm |
| 涂层 | Without | 包装方式 | Bulk |
| 屏蔽 | 否 | 方向 | Straight |
| 端接方式 | Solder | 触头类型 | Solder Post |
| 安装类型 | Through Hole | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold or Gold-Palladium | 触点时序 | 否 |
| 安装样式 | 带有 | 排数 | 3 |
| 高度（英寸） | 11.51 | 插入件材料 | 磷青铜 |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester GF |
| 安装特性 | 安装孔 | 面板安装类型 | 不带 |
| 端接排数 | 焊接 | 先合后断 | No |
| 连接器间距 | 2.54 | 端接样式 | 插针 |
| 配接方向 | Without | 触点数 | 64 |
| 接触件尾部长度 | 4.5 | 位数 | 64 |
| 绝缘材料 - 材质 | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | 安装孔直径 | 不带 |
| 端子柱长度 | 4.50 [0.177] | ||
产品信息
| 类型 | DIN 41612 | 等级 | II |
| 样式 | R | 连接器性别 | Male |
| 系列 | Eurocard | 导向方式 | Without |
| 产品子类型 | Plug | 插座类型与数量 | A/c |
| 加载位置数 | 64 | ||
环境参数
| 额定等级 | C2 | 级别、等级 | 2 |
| 工作温度 | -55°C ~ 125°C | 可用温度范围 | -55to+125°C |
| 结工作温度 | 125°C | ||
