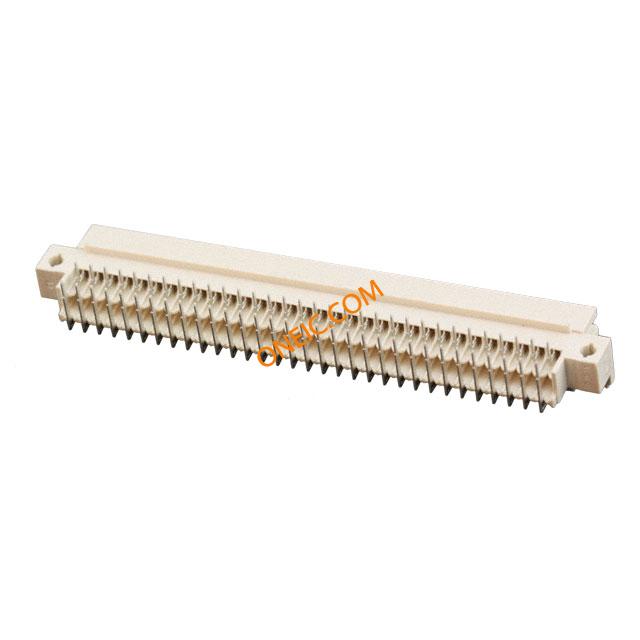

5650870-5

点击放大查看

5650870-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN EUROCRD RCPT 64POS R/A TYPR DIN 41612 Connectors Type R Receptacle 64 Position Conn DIN 41612 RCP 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:ReceptacleNumber of Positions = 64PCB Mount Angle = Right AngleNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 CONNECTOR, RECEPTACLE, 64POS EurocardReceptacle;64;PhosphorBronze;Polyester;0.11in.;RightAngle;II 64 Position Dual Row 2.54 mm Pitch Right Angle Solder Post Receptacle Assembly ASSEMBLY,RECEPTACLE,EURO,TYPE
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

其他名称56508705零件号别名374-2719
产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant标准DIN41612,IEC603-2
海关税号85444290无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
认证机构CSA,ULRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250V接触电阻15 mohm
最小供电电压250VAC

机械参数

颜色Gray间距2.54 mm
高度10.49 mm重量0
涂层Without包装方式Bulk
外壳尺寸R端接方式Solder
触头类型Solder Post引脚长度（针脚）0.11"
外壳颜色Gray尾部长度2.79 mm
安装类型Through Hole行程角度Right
连接器类型Receptacle, Female Sockets接触镀层Gold Over Nickel
安装样式Through Hole排数2
触头材料Copper Alloy壳体材料Polymer
总长度93.87 mm主要材料Eurocard
先合后断No插针孔直径0.1"
端接样式Solder配接方向Without
触点数64接触件端接:Through Hole Right Angle
位数64绝缘材料 - 材质Polymer Thermoplastic, Glass Filled
安装孔直径0.11"端子柱长度2.79 [0.110]

产品信息

类型DIN 41612等级II
样式R连接器性别RCP
系列5650870导向方式Without
制造商全称Eurocard产品子类型Receptacle
加载位置数64

环境参数

级别、等级2工作温度-55°C ~ 125°C

文档与媒体

在线文档
5650870-5?RQPN=5650870-5
