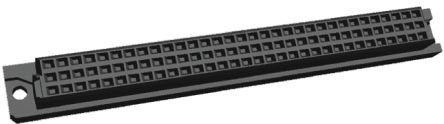

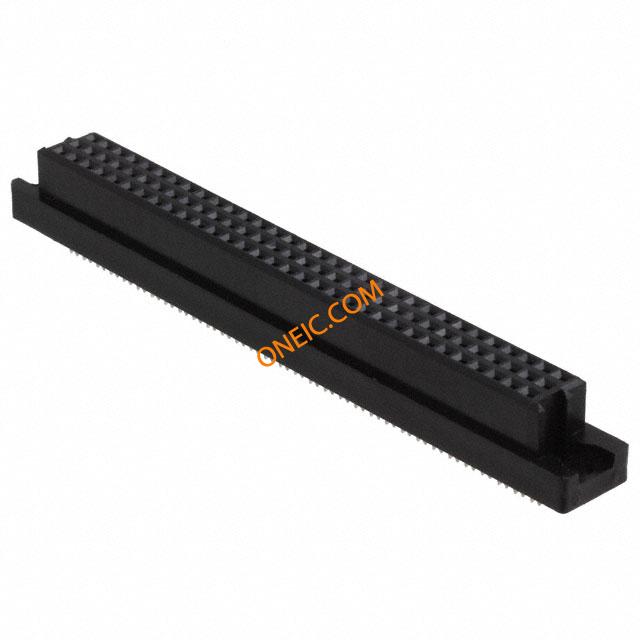

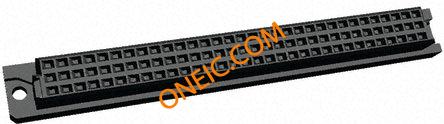

746603-4

点击放大查看

746603-4

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 64 POS 2.54mm IDT RA Cable Mount Eurocard Type C CONN RCPT 64POS TYPE C EUROCARD Eurocard,Type C,rcp,64 skt contacts DIN 41612 Connectors REC VRT CX32P L2 IDC Conn DIN 41612 RCP 64 POS 2.54mm IDT RA Cable Mount Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 64Rows Loaded = A, CTerminate To Ribbon CableSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 I/O CONNECTOR, 64WAY, RECEPTACLE, SOLDER EUROLATCHConnector,60position,withcover 64 Position 3 Row 2.54 mm Pitch Type C Eurocard Receptacle Connector TE Connectivity Eurocard 系列 64 路 2.54mm 节距, C型, 2 行 a/c, 直角 DIN 41612 插座, IDT端接 64 EUROLATCH LEAD FREE
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Trays
工厂包装数量30

合规参数

RoHSLead free / RoHS Compliant标准DIN41612,IEC603-2
海关税号85365005无铅定义Not relevant for lead free process
认证机构CSA,ULRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250V最大额定电流1.5 A

机械参数

尺寸Standard颜色Black
间距2.54 mm重量0.014
涂层Without锁定类型Inverse
包装方式Tray外壳尺寸C
导线线规26,28AWG(Solid,Stranded),30AWG(Solid)端接方式IDT
触头类型Solder Post安装类型Cable Mount
行程角度Straight连接器类型Receptacle, Female Sockets
接触镀层Gold Over Nickel排数2
连接器样式768352-1锁定特性EUROLATCH
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度3.73"安装特性With
主要材料Eurocard先合后断No
插针孔直径0.1"端接样式IDC
触点数64接触件端接:IDC / IDT
位数64绝缘材料 - 材质Polyester Thermoplastic, Glass Filled
接触镀层厚度30µin (0.76µm)线规或范围 - mm²0.05-0.15 [30-26]

产品信息

备注Connector-specific kit 768352-1 for use with: Hand Tool Kit 768340-1, Pneumatic类型DIN 41612
样式C连接器性别Receptacle
系列Eurocard制造商全称Eurocard
产品子类型Type C Connectors连接类型Ribbon Cable
工具类型/特性No带调制解调器控制Yes
加载位置数64

环境参数

温度No工作温度-55°C ~ 125°C

文档与媒体

PDF 文档
1599153.pdf
