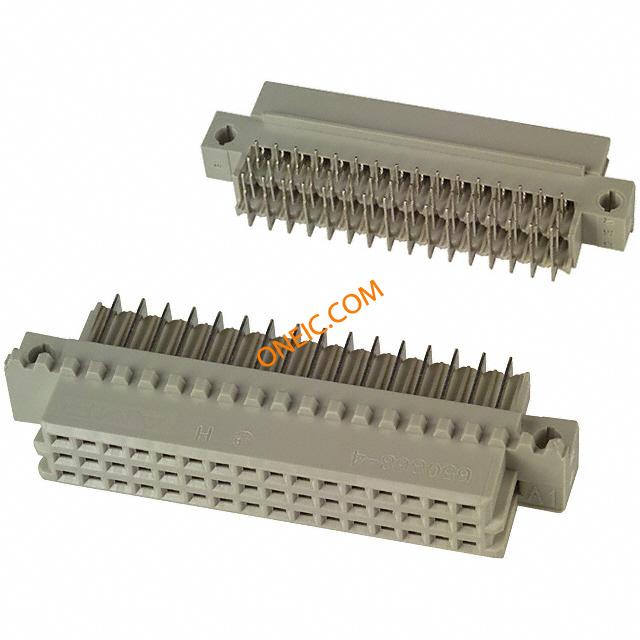

5650868-5

点击放大查看

5650868-5

制造商
TE Connectivity Ltd.

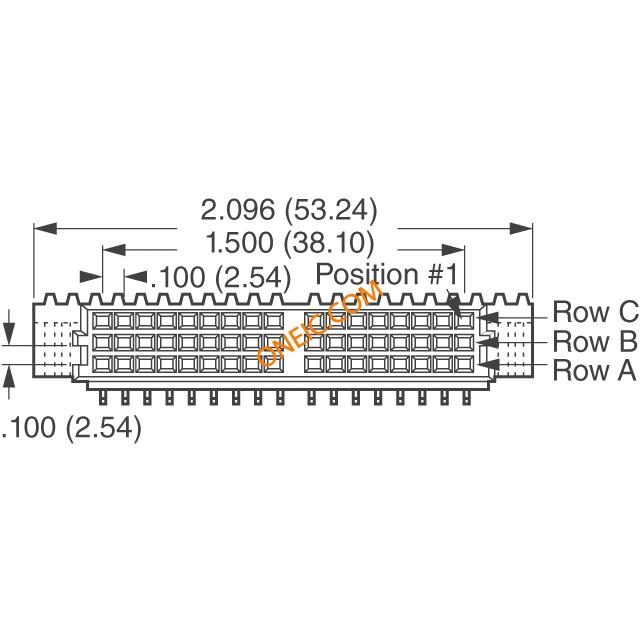

描述Conn DIN 41612 RCP 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN DIN RECEPT 48POS RT ANG PCB 2.54mm,rcpt,DIN41612,solder,90°,PCB,48w DIN 41612 Connectors Type R Receptacle 48 Position Conn DIN 41612 RCP 48 POS 2.54mm Solder RA Thru-Hole Search Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 SOCKET, DIN41612, R/A, R, 48WAY RECEPTACLE,5650868-5 CONN DIN TE Connectivity Eurocard 系列 48 路 2.54mm 节距, 1/2 R型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插座, 焊接端接 ASSY,RECEPTACLE,EUROCARD,TYPE R/2,LEAD-F
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量140

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c认证机构:CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250 V ac

机械参数

颜色Gray间距2.54 mm
重量0.0008涂层Without
材料（通用）:Polyester包装方式Bulk
端接方式Solder触头类型Solder Post
引脚间距:2.54mm引脚长度（针脚）:2.79mm
尾部长度2.79 mm安装类型Through Hole
连接器类型Receptacle, Female Sockets接触镀层DIN 41612 Class 2
排数3触头材料Copper Alloy
壳体材料Polymer先合后断No
端接样式Solder连接器颜色:Grey
配接方向Without触点数48
接触件端接:Through Hole Right Angle位数48
绝缘材料 - 材质Polymer Thermoplastic, Glass Filled端子柱长度2.79 [0.110]

产品信息

类型DIN 41612等级II
样式1/2 R连接器性别Female
系列5650868CAD图纸3D CAD Model
导向方式Without产品子类型Receptacle
测量范围:half加载位置数All

环境参数

级别、等级2插拔次数:400
工作温度-55°C ~ 125°C

相关型号

650918-5

650918-5

te connectivity / amp

Conn DIN 41612 PIN 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 48POS VERT PCB DIN 41612 Connectors Type R Pin Header 48 P w/ Action Pin Conn DIN 41612 PIN 48 POS 2.54mm Solder ST Thru-Hole Product Highlights:PlugNumber of Positions = 48PCB Mount Angle = VerticalYes PCB Retention FeatureACTION (Compliant) Press-fit PostsSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 048 EURO TYPE R PIN AP ASSY

¥12.8160
详情
5650478-5

5650478-5

te connectivity / amp

Conn DIN 41612 PIN 48 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors PLUG 48P R/A TYPE C Eurocard Type C CONN DIN PLUG 48POS RT ANG PCB 2.54mm,pin,horizontal,solder,PCB,48way Conn DIN 41612 PIN 48 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 Se CONECTOR,PLUG,EUROCARDTYPEC,48POS,ROWSA,B,CLOADED 48 Positions Eurocard Product Line Plug 2.54mm Pitch TE Connectivity Eurocard 系列 48 路 2.54mm 节距, 1/2 C型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插头, 焊接端接 ASSY,PIN,EUROCARD,TYPE C/2,LEA

¥13.0320
详情
3-1393659-9

3-1393659-9

te connectivity / amp

Conn DIN 41612 PIN 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN PLUG 48POS VERT SOLDER GRAY Plug pcb vert 48w 3row 2.54mm Eurocard DIN 41612 Connectors V42254B1202R480 PC612 MESSERLE Conn DIN 41612 PIN 48 POS 2.54mm Solder ST Thru-Hole Product Highlights:Housing Gender = ReceptacleContact Gender = Pin48 PositionsPCB Mount Angle = VerticalWithout PCB Mount Retention Plugpcbvert48w3row2.54mmEurocard Socket; DIN 41612,type R; male; straight; PIN:48; THT; len.4.5mm 48 Position 2.54 mm Plug Vertical Through Hole Euro Card Type R Connector Multipole plug, R/2 48p DIN 41612 2 3 x 16 a + b + c, 3-1393659-9, TE Connectivity TE Connectivity Eurocard 系列 48 路 2.54mm 节距, 1/2 R型 C2等级, 3 行 a/b/c 直向 DIN 41612 插头, 焊接端接

¥11.5920
详情
650948-5

650948-5

te connectivity / amp

Conn DIN 41612 PL 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 48POS RT ANG PCB DIN 41612 Connectors Type C Pin Header 48 Position Conn DIN 41612 PL 48 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 048 EURO TYPE C PIN ST ASSY

¥15.9840
详情
650917-5

650917-5

te connectivity / amp

Conn DIN 41612 PIN 48 POS 2.54mm Press Fit ST Thru-Hole DIN 41612 Connectors Type R Pin Header 48 P w/ Action Pin Eurocard Type R RECT DIN PLUG 48 ACTION PIN .521 Conn DIN 41612 PIN 48 POS 2.54mm Press Fit ST Thru-Hole Product Highlights:PlugNumber of Positions = 48PCB Mount Angle = VerticalYes PCB Retention FeatureACTION PIN (Compliant) PostsSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 048 EURO TYPE R PIN AP ASSY

¥23.4144
详情
5650918-5

5650918-5

te connectivity / amp

Conn DIN 41612 PIN 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 48POS VERT PCB DIN 41612 Connectors R/2 PIN VRT ABCX16C L2 PFIT Conn DIN 41612 PIN 48 POS 2.54mm Solder ST Thru-Hole Product Highlights:PlugNumber of Positions = 48PCB Mount Angle = VerticalYes PCB Retention FeatureACTION PIN (Compliant) PostsSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 CONNECTOR, PLUG, DIN, 48WAY ASSY,PIN,EUROCARD,TYPE R/2,LEA

¥11.6640
详情
650916-5

650916-5

te connectivity / amp

Conn DIN 41612 PL 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 48POS RT ANG PCB DIN 41612 Connectors 48P DIN PCB BRDLCK 900 Conn DIN 41612 PL 48 POS 2.54mm Solder RA Thru-Hole Search Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 48 Position 2.54 mm Plug Right Angle Through Hole Eurocard Type C Connector 048 EURO TYPE C PIN BL ASSY

¥14.1120
详情

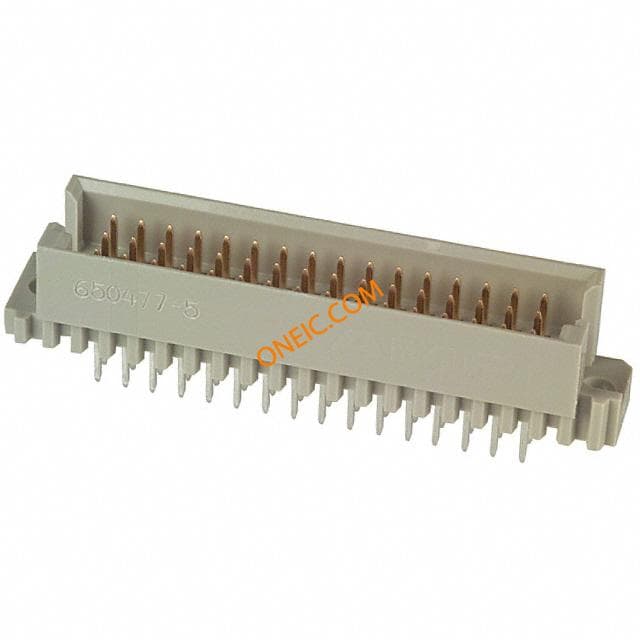

650477-5
