首页产品分类连接器解决方案背板连接器DIN 41612535071-5
535071-5

点击放大查看

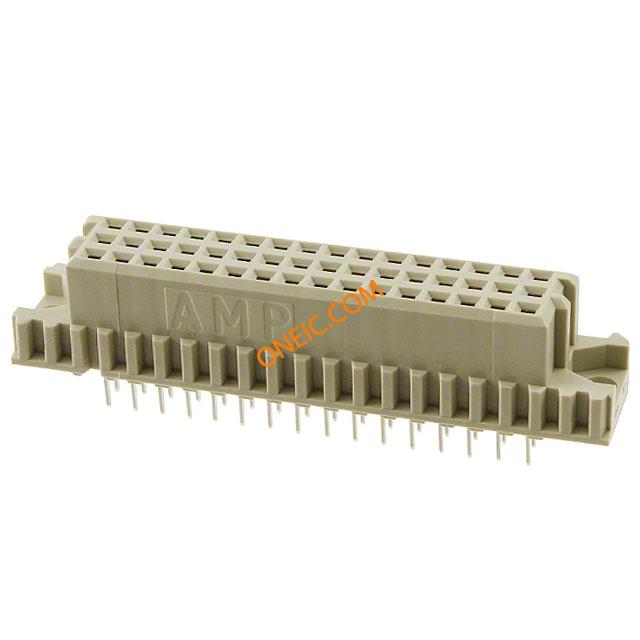

535071-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 F 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type C 048 EURO TYPE C RECEPT ST ASSY DIN 41612 Connectors Type C Receptacle 48 Position Eurocard Type C Product Highlights:ConnectorReceptacleType = Type C48 PositionsRows Loaded = A, B, CSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

标准包装规格30产品类别DIN 41612 Connectors
标准包装数量Bulk工厂包装数量150

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Wave solder capable to 240°C
RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612

机械参数

尺寸Half颜色Gray
间距2.54 mm涂层Without
包装方式Bulk屏蔽否
端接方式Solder触点尺寸0.30 x 0.61 [.012 x .024]
触头类型Solder Post安装类型Through Hole
端子尺寸.25 x .25 mm [ .25 x .25 in ]连接器类型Receptacle, Female Sockets
接触镀层Gold触点时序否
安装样式带有排数A, B, C
高度（英寸）11.51插入件材料磷青铜
触头材料Phosphor Bronze壳体材料Polyester
安装特性With面板安装类型通孔 - 焊接
尺寸/外形半先合后断No
端接样式Solder Pin触点数48
接触件尾部长度4.57位数48
绝缘材料 - 材质Polyester, Glass Filled安装孔直径带有
接触件表面处理 - 配合锡铅端子柱长度4.57 [0.180]
接触镀层厚度2.54 – 5.08 µm [ 99.9998 – 199.9996 µin ]第一连接器安装特征否

产品信息

备注Contact Finish: DIN 41612 Class 2 In Contact Area.Tin-Lead On Posts.类型DIN 41612
等级II样式1/2 C
连接器性别Receptacle系列535071
导向方式不带产品子类型Type C Connectors
连接类型Printed Circuit Board列数16
工具类型/特性No加载位置数All

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C

文档与媒体

在线文档
535071-5?RQPN=535071-5
