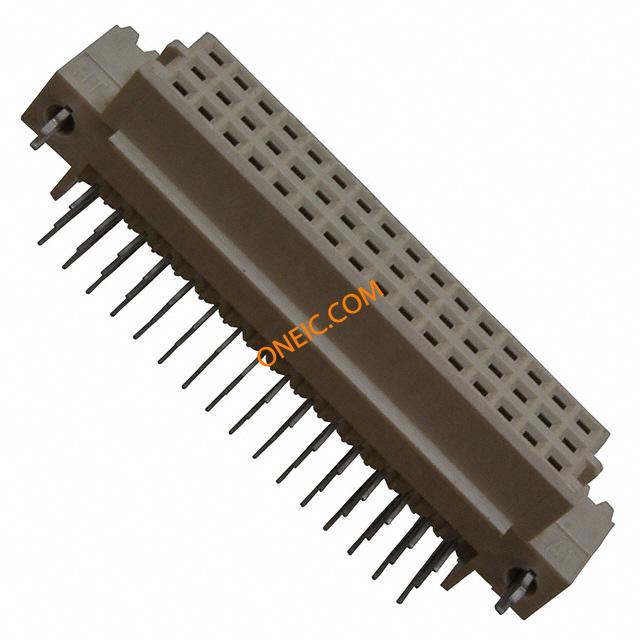

5650893-5

点击放大查看

5650893-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN RECEPT RTANG 48POS .100 DIN DIN 41612 Connectors ASSY,RECEPT,EUROCARD TYPE R/2,L-FREE,48, Conn DIN 41612 RCP 48 POS 2.54mm Solder RA Thru-Hole Product Highlights:ReceptacleNumber of Positions = 48PCB Mount Angle = Right AngleYes PCB Retention FeatureBoardlock(s)Search Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR, RECEPTACLE, 48 POS 48 Position 3 Row 2.54 mm Pitch Right Angle Eurocard Type R Receptacle Connector ASSY,RECEPT,EUROCARD,TYPE R/2,L-FREE,48,
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

标准包装数量Bulk

合规参数

RoHSLead free / RoHS Compliant海关税号85366930
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

机械参数

颜色Gray间距2.54 mm
重量0涂层Without
包装方式Bulk厚度1.57 [0.062]
端接方式Solder触头类型Solder Post
安装类型Through Hole连接器类型Receptacle, Female Sockets
接触镀层Tin排数3
触头材料Copper Alloy壳体材料Polymer
先合后断No端接样式Solder Pin
配接方向Without触点数48
接触件端接:Through Hole Right Angle位数48
绝缘材料 - 材质Polymer Thermoplastic, Glass Filled端子柱长度2.79 [0.110]

产品信息

类型DIN 41612等级II
样式1/2 R连接器性别:Receptacle
系列Eurocard产品特性Board Lock
导向方式Without产品子类型Receptacle
加载位置数All

环境参数

级别、等级2工作温度-55°C ~ 125°C
