650923-5

点击放大查看

650923-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 PIN 150 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 150POS VERT PCB Eurocard Type R Product Highlights:PlugNumber of Positions = 150PCB Mount Angle = VerticalYes PCB Retention FeatureACTION PIN (Compliant) PostsSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 150 EURO TYPE R PIN AP ASSY
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

其他名称A1270标准包装规格30
标准包装数量Bulk

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS/Not ELV Compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612供电电压250
最大额定电流1.5

机械参数

颜色Gray间距2.54 mm
高度11.51 mm [ .453 in ]涂层Without
包装方式Bulk屏蔽否
厚度2.36 [0.093]端接方式Solder
触头类型Compliant Post安装类型Through Hole
端子尺寸.64 x .64 mm [ .025 x .025 in ]连接器类型Plug, Male Pins
接触镀层Gold触点时序否
安装样式带有排数3
插入件材料磷青铜触头材料Phosphor Bronze
壳体材料Polyester安装特性作用/符合标准的尾
面板安装类型通孔 - 焊接尺寸/外形II
先合后断No端接样式插针
配接方向Without触点数150
位数150触头长度-柱13.23 mm [ .516 in ]
绝缘材料 - 材质Polyester, Glass Filled安装孔直径带有
接触件表面处理 - 配合锡铅端子柱长度13.23 [0.521]
接触镀层厚度2.54 – 5.08 µm [ 100 – 200 µin ]

产品信息

类型DIN 41612等级II
样式R导向方式Without
产品子类型Plug列数50
加载位置数All

环境参数

级别、等级2工作温度-55°C ~ 125°C
封装热阻2.36 mm [ .093 in ]

相关型号

650406-5

650406-5

te connectivity / amp

Conn DIN 41612 RCP 150 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 150POS VERT PCB DIN 41612 Connectors EUROCARD RECPT 150P 600 Conn DIN 41612 RCP 150 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 150Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 150 EURO TYPE C RECEPT ST ASSY

¥86.2444
详情
148295-5

148295-5

te connectivity / amp

Conn DIN 41612 RCP 150 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN EUROCARD RCPT 150POS TYPE R DIN 41612 Connectors 150P R/A RECEPT Conn DIN 41612 RCP 150 POS 2.54mm Solder RA Thru-Hole Search Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 150 EURO TYP R RECEPT EON ASSY

¥55.8960
详情
535080-5

535080-5

te connectivity / amp

Conn DIN 41612 RCP 150 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type C CONN DIN RECEPT 150POS VERT PCB DIN 41612 Connectors 150P TYPE C DIN RECP Conn DIN 41612 RCP 150 POS 2.54mm Press Fit ST Thru-Hole Product Highlights:ConnectorReceptacleType = Type C150 PositionsRows Loaded = A, B, CSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612

¥42.2960
详情

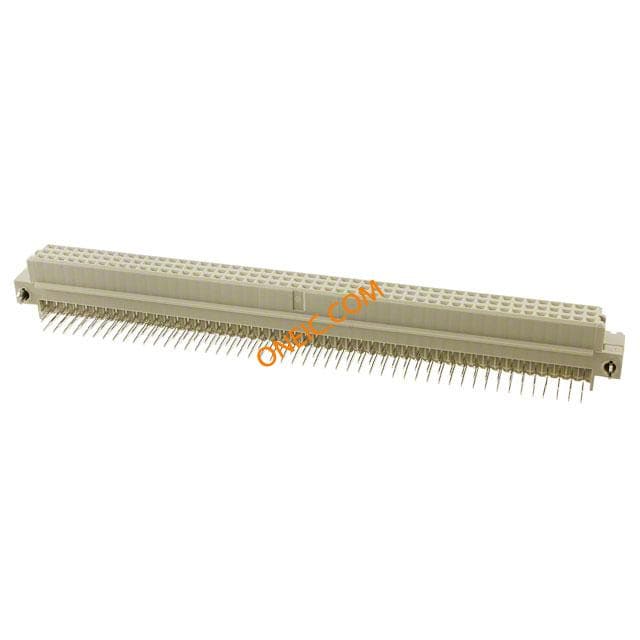

650959-5
