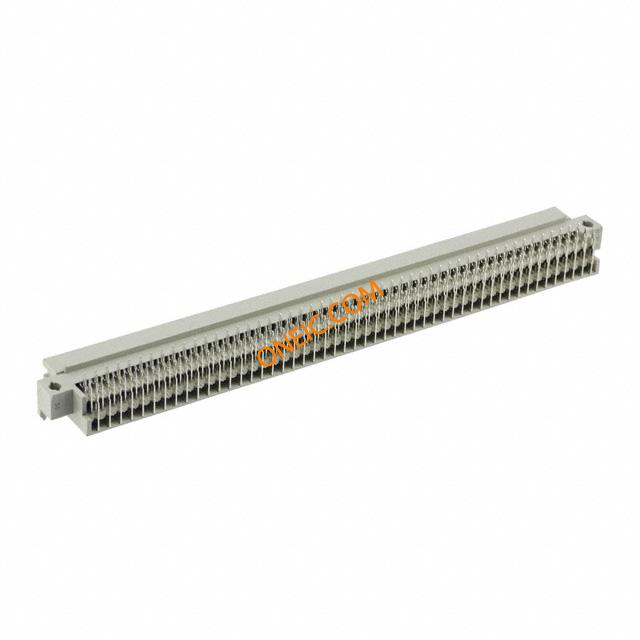

148295-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn DIN 41612 RCP 150 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN EUROCARD RCPT 150POS TYPE R DIN 41612 Connectors 150P R/A RECEPT Conn DIN 41612 RCP 150 POS 2.54mm Solder RA Thru-Hole Search Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 150 EURO TYP R RECEPT EON ASSY |
| 分类 |
商业参数
| 其他名称 | 1482955 | 产品类别 | DIN 41612 Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 140 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS/Not ELV Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接口 | Eurocard/DIN 41612 | ||
机械参数
| 颜色 | Gray | 深度 | 18.54 mm |
| 间距 | 2.54 mm | 高度 | 10.49 mm |
| 涂层 | Without | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Compliant Post |
| 外壳颜色 | Gray | 安装类型 | Through Hole |
| 端子尺寸 | .64 x .64 mm [ .025 x .025 in ] | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Tin | 触点时序 | 否 |
| 安装样式 | Through Hole | 排数 | 3 |
| 电路板厚度 | 1.57 [0.062] | 高度（英寸） | 18.54 |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 总长度 | 139.6 mm |
| 安装特性 | 作用/符合标准的尾 | 面板安装类型 | 通孔 - 焊接 |
| 尺寸/外形 | II | 先合后断 | No |
| 连接器间距 | 2.54 | 端接样式 | Solder Pin |
| 配接方向 | Without | 触点数 | 150 |
| 接触件尾部长度 | 2.92 | 位数 | 150 |
| 触头长度-柱 | 信号（数据） | 绝缘材料 - 材质 | Polyester, Glass Filled |
| 安装孔直径 | 不带 | 接触件表面处理 - 配合 | 锡铅 |
| 端子柱长度 | 2.92 [0.115] | ||
产品信息
| 类型 | DIN 41612 | 等级 | II |
| 样式 | R | 连接器性别 | RCP |
| 系列 | 148295 | 导向方式 | Without |
| 产品子类型 | Receptacle | 列数 | 16 |
| 加载位置数 | All | ||
环境参数
| 级别、等级 | 2 | 工作温度 | -55°C ~ 125°C |
| 封装热阻 | 1.57 mm [ .062 in ] | ||
文档与媒体
相关型号
650911-5
te connectivity / amp
