650911-5
| 制造商 | TE Connectivity Ltd. |

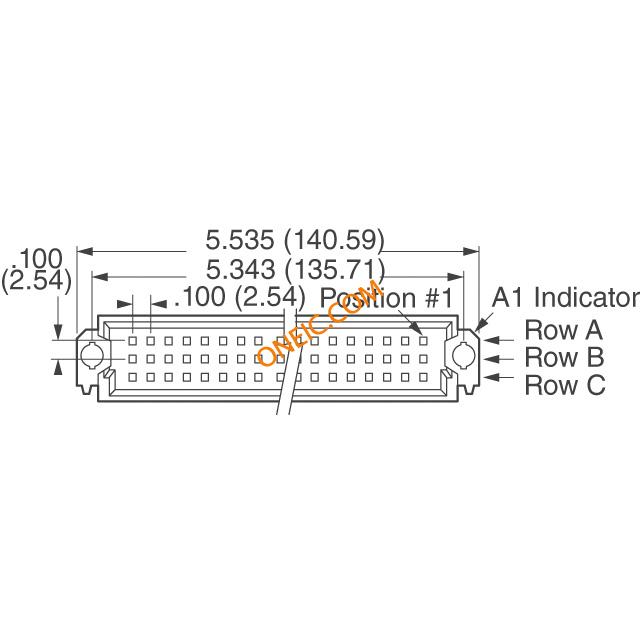

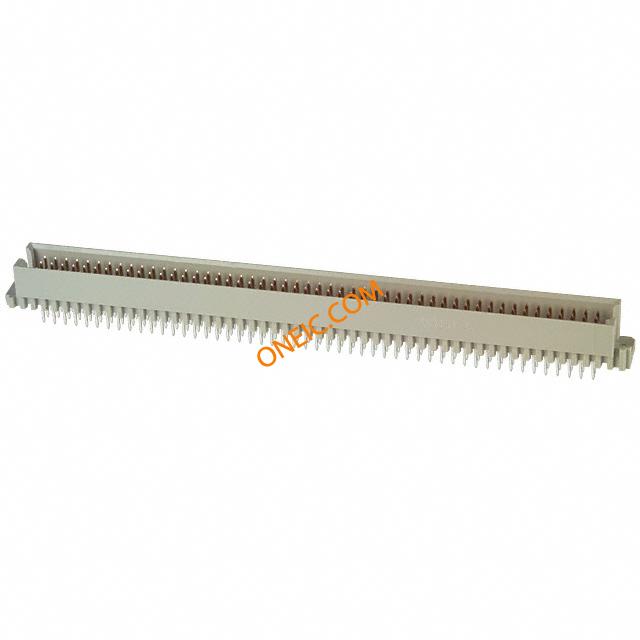

| 描述 | Conn DIN 41612 PIN 150 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 150POS VERT PCB DIN 41612 Connectors EUROCARD VER PLG 150 1500 Eurocard Type R Product Highlights:PlugNumber of Positions = 150PCB Mount Angle = VerticalNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 150 EURO TYPE R PIN ST ASSY |
| 分类 |
商业参数
| 其他名称 | A1297 | 标准包装规格 | 30 |
| 产品类别 | DIN 41612 Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 150 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Wave solder capable to 240°C |
| RoHS/ELV合规状态 | ELV compliant, 5 of 6 Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接口 | Eurocard/DIN 41612 | 供电电压 | 250 |
| 最大额定电流 | 1.5 | ||
机械参数
| 颜色 | Gray | 间距 | 2.54 mm |
| 高度 | 11.51 mm [ .453 in ] | 涂层 | Without |
| 包装方式 | Bulk | 屏蔽 | 否 |
| 端接方式 | Solder | 触头类型 | Solder Post |
| 安装类型 | Through Hole | 端子尺寸 | .64 x .64 mm [ .025 x .025 in ] |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold Over Nickel |
| 触点时序 | 否 | 安装样式 | 不带 |
| 排数 | 3 | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 壳体材料 | Polyester |
| 面板安装类型 | 通孔 - 焊接 | 尺寸/外形 | II |
| 先合后断 | No | 端接样式 | Solder Pin |
| 配接方向 | Without | 触点数 | 150 |
| 位数 | 150 | 触头长度-柱 | 4.57 mm [ .178 in ] |
| 绝缘材料 - 材质 | Polyester, Glass Filled | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡铅 | 端子柱长度 | 4.57 [0.180] |
| 接触镀层厚度 | 2.54 – 5.08 µm [ 100 – 200 µin ] | ||
产品信息
| 类型 | DIN 41612 | 等级 | II |
| 样式 | R | 系列 | 650911 |
| 导向方式 | Without | 产品子类型 | Plug |
| 列数 | 50 | 加载位置数 | All |
环境参数
| 级别、等级 | 2 | 工作温度 | -55°C ~ 125°C |
文档与媒体
相关型号
