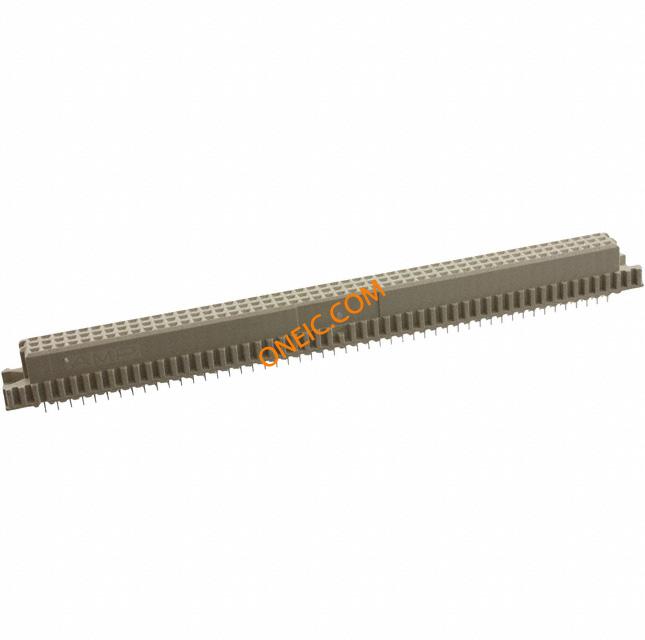

650405-5

点击放大查看

650405-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 150 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 150POS VERT PCB DIN 41612 Connectors DIN RECPT 150P VERT TYPE C Conn DIN 41612 RCP 150 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 150Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量150

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Wave solder capable to 240°C
RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant材料阻燃等级UL 94V-0

机械参数

尺寸Expanded颜色Gray
间距2.54 mm涂层Without
包装方式Bulk端接方式Solder
触点尺寸0.30 x 0.61 [.012 x .024]触头类型Solder Post
安装类型Through Hole连接器类型Receptacle, Female Sockets
接触镀层Gold Over Nickel排数3
触头材料Phosphor Bronze壳体材料Polyester
安装特性With先合后断No
端接样式Solder Pin触点数150
位数150绝缘材料 - 材质Polyester, Glass Filled
端子柱长度3.30 [0.130]

产品信息

备注Contact Finish: DIN 41612 Class 2 In Contact Area.Tin-Lead On Solder Tails.类型DIN 41612
等级II样式C
连接器性别Receptacle系列650405
产品子类型Type C Connectors连接类型Printed Circuit Board
工具类型/特性No加载位置数All

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C
