5650907-5

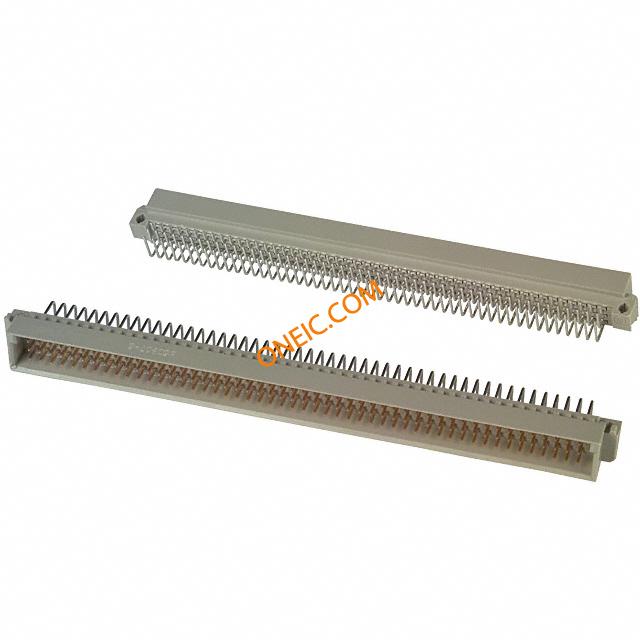

点击放大查看

5650907-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 M 150 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 150POS RT ANG PCB DIN 41612 Connectors PLUG 150P R/A TYPE C Conn DIN 41612 M 150 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 150Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 ASSY,PIN,EUROCARD,TYPE C,LEAD-FREE,150 P
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量150

合规参数

RoHSLead free / RoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612供电电压250
最大额定电流1.5最小供电电压250VAC

机械参数

尺寸Expanded颜色Gray
深度17.73 mm间距2.54 mm
高度11.1 mm涂层Without
包装方式Bulk端接方式Solder
触点尺寸0.64 [.025] Sq.触头类型Solder Post
外壳颜色Gray安装类型Through Hole
连接器类型Plug, Male Pins接触镀层Tin
安装样式Through Hole排数3
端子样式.64 x .64 mm [ .025 x .025 in ]插入件材料铜合金
触头材料Copper Alloy壳体材料Polymer

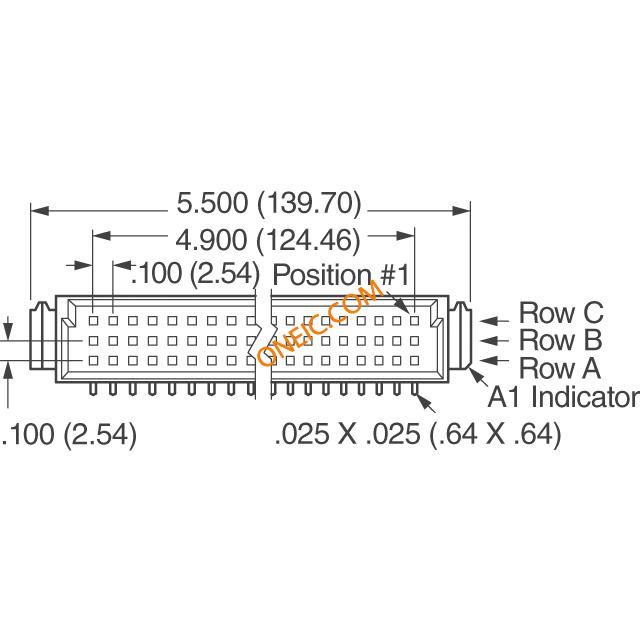

总长度139.7 mm安装特性With
面板安装类型通孔 - 焊接先合后断No
端接样式Solder Pin触点数150
位数150触头长度-柱2.64 mm [ .104 in ]
绝缘材料 - 材质Polymer Thermoplastic, Glass Filled安装孔直径带有
接触件表面处理 - 配合锡端子柱长度2.65 [0.104]
接触镀层厚度2.54 – 5.08 µm [ 100 – 200 µin ]

产品信息

类型DIN 41612等级II
样式C连接器性别Plug
系列5650907导向方式Without
产品子类型Type C Connectors连接类型Printed Circuit Board
列数16工具类型/特性No
加载位置数All

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C封装热阻1.57 mm [ .062 in ]
